PART NAME REMARKS Q'TY 2 ｶﾊﾞｰ部(Z軸7) COVER SECT. (Z-AXIS-7) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 309 108710230902 DOOR(L) ﾄﾞｱ(L) 2 314 108710231402 BRACKET ﾌﾞﾗｹｯﾄ 2 319 108710231902 BRACKET ﾌﾞﾗｹｯﾄ 1 329…

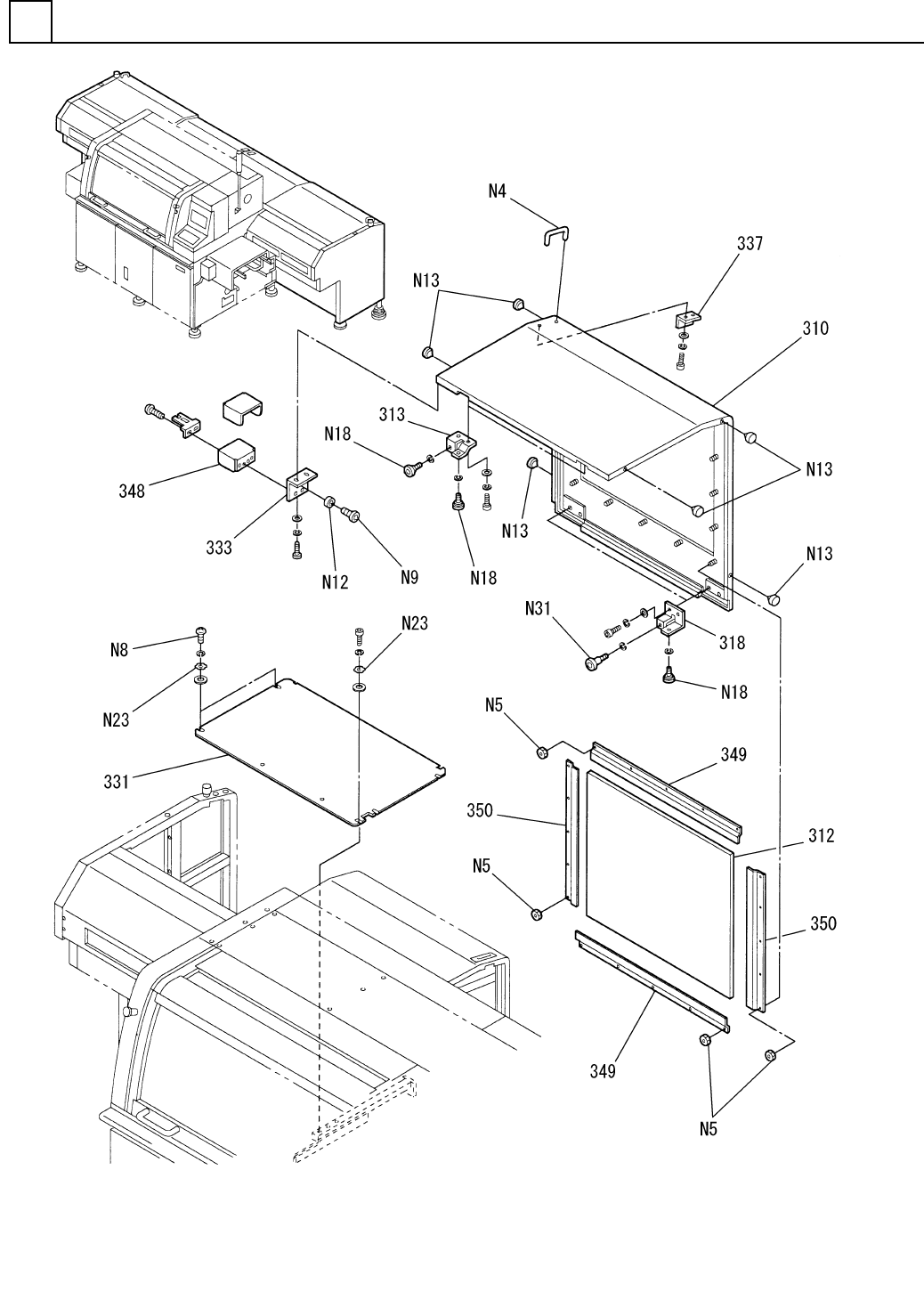

ｶﾊﾞｰ部(Z軸7)
COVER SECT.(Z-AXIS-7)
2
F10871-02-300-AF-7
M35
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(Z軸7)
COVER SECT.(Z-AXIS-7)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1309 108710230902
DOOR(L) ﾄﾞｱ(L)
2
314 108710231402
BRACKET ﾌﾞﾗｹｯﾄ
2
319 108710231902
BRACKET ﾌﾞﾗｹｯﾄ
1329 108710232901
COVER(L) ｶﾊﾞｰ(L)
1335 108710233501
BRACKET ﾌﾞﾗｹｯﾄ
2
338 1046931347
BRACKET ﾌﾞﾗｹｯﾄ
A-174-1
1
N 3 N980A1741
DRAWER PULL ﾄｯﾃ
22RF602C-1
6N18 N50022RF-016
BEARING ﾍﾞｱﾘﾝｸﾞ
M6X10,+,STEEL,Z.C.T
2N20 XST6+10FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
C-158-3
1
N21 N980C1583
MAGNETIC CATCH ﾏｸﾞﾈｯﾄｷｬｯﾁ
5,B-TYPE,STEEL,Z.C.T
3N23 XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
22RF603C-1
4N31 N50022RF-017
BEARING ﾍﾞｱﾘﾝｸﾞ
M36
F10871-02-300-AF-7
ｶﾊﾞｰ部(Z軸8)
COVER SECT.(Z-AXIS-8)
2
F10871-02-300-AF-8
M37
