PART NAME REMARKS Q'TY 2 ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部1) COVER SECT. (Z-AXIS COVER SECT .-1) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 1087102700 COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ 1 704 1087102305 PLATE ﾌﾟﾚｰﾄ 1 705 108710230601 COVER ｶﾊ…
ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部1)
COVER SECT.(Z-AXIS COVER SECT.-1)
2
F10871-02-700-1
M39
PART NAME
REMARKS
Q'TY
2
ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部1)
COVER SECT.(Z-AXIS COVER SECT.-1)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087102700
COVER UNIT ｶﾊﾞｰﾕﾆｯﾄ
1
704 1087102305
PLATE ﾌﾟﾚｰﾄ
1
705 108710230601
COVER ｶﾊﾞｰ
1706 1087102307
COVER ｶﾊﾞｰ
1713 1087102713
RAIL ﾚｰﾙ
1
729 108710233403
BRACKET ﾌﾞﾗｹｯﾄ
4
734 108710233901
PLATE ﾌﾟﾚｰﾄ
2735 108710234001
PLATE ﾌﾟﾚｰﾄ
2736 1087102736
BLOCK ﾌﾞﾛｯｸ
1
741 3086239031
LABEL ﾗﾍﾞﾙ
M3X6,+,STEEL,Z.C.T
10
N 1
XST3+6FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
3,B-TYPE,STEEL,Z.C.T
10
N 2
XWC3BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M22-PV/K02 S
1
N 6
N306M22PVK02
SWITCH ｽｲｯﾁ
D4DS-2AFS S
1
N 11
N300D4DS2AFS
SWITCH ｽｲｯﾁ
SC-6
1
N 13
N300SC6
CONNECTOR ｺﾈｸﾀ
C-30-SG9A(WHITE)
4
N 16
N980C30SG9AW
GROMMET ｸﾞﾛﾒｯﾄ
5,B-TYPE,STEEL,Z.C.T
3
N 20
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M40
F10871-02-700-1

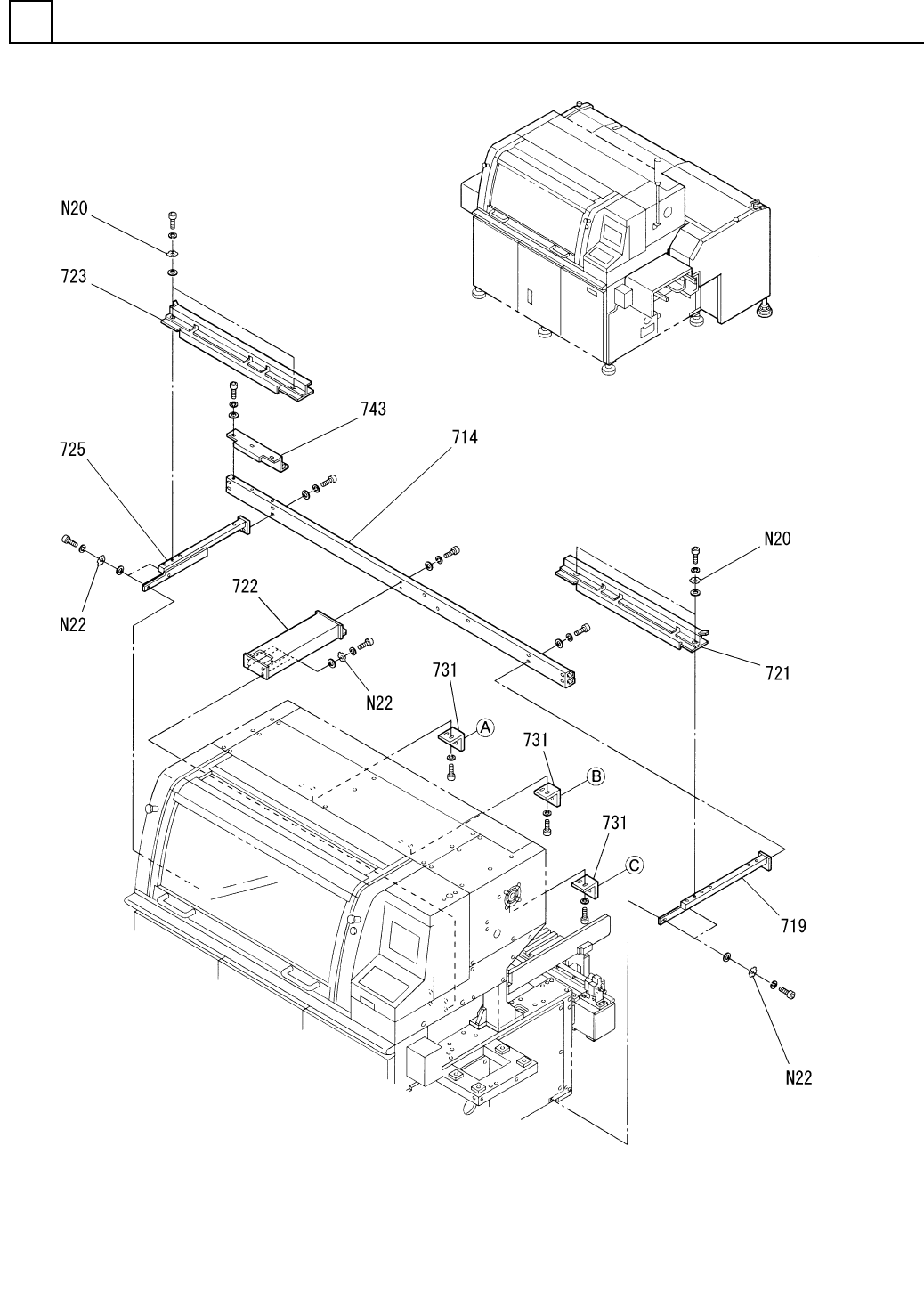

ｶﾊﾞｰ部(Z軸ｶﾊﾞｰ部2)
COVER SECT.(Z-AXIS COVER SECT.-2)
2
F10871-02-700-2
M41
