PART NAME REMARKS Q'TY 26 JW ﾍｯﾄﾞ 部(駆動部） JW HEAD SEC T.(DRIVING SECT.) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 1087120000 J.W. HEAD UN IT J.W. ﾍｯﾄﾞﾕﾆｯﾄ 1 001 108712000104 CAM ｶﾑ 1 002 1020315016 PLATE ﾌﾟﾚ…

100%1 / 296

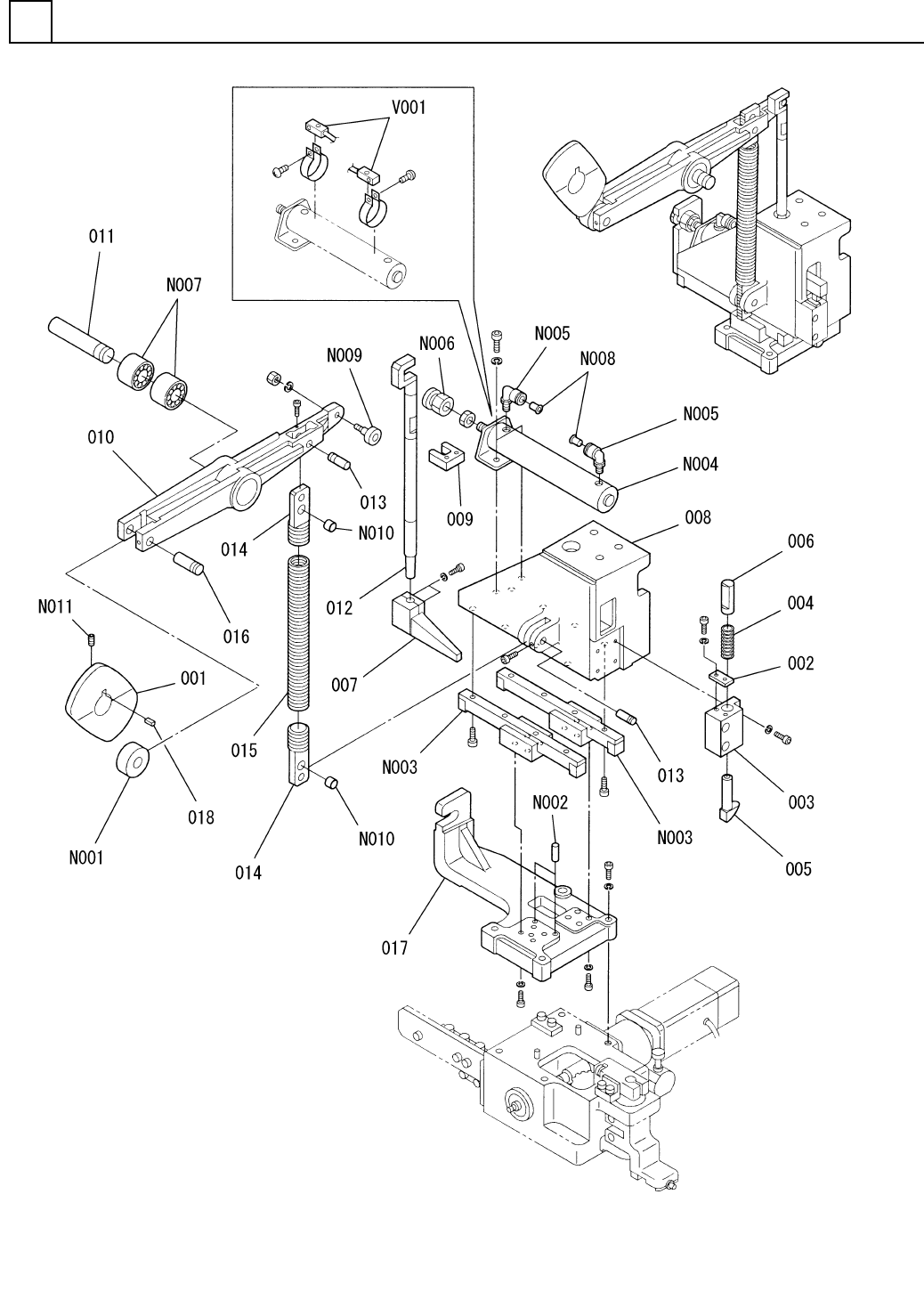

JWﾍｯﾄﾞ部(駆動部）
JW HEAD SECT.(DRIVING SECT.)
26
F10871-20-000-AG_01
M253
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
26
JWﾍｯﾄﾞ部(駆動部）
JW HEAD SECT.(DRIVING SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1 1087120000
J.W. HEAD UNIT J.W. ﾍｯﾄﾞﾕﾆｯﾄ
1
001 108712000104
CAM ｶﾑ
1
002 1020315016
PLATE ﾌﾟﾚｰﾄ
1003 1087120003
BLOCK ﾌﾞﾛｯｸ
1004 N210038186AA
SPRING ﾊﾞﾈ
1
005 1083820005
SHAFT ｼｬﾌﾄ
1
006 1083820006
SHAFT ｼｬﾌﾄ
1007 104132000701
PUSHER ﾌﾟｯｼｬ
1008 104132000802
BRACKET ﾌﾞﾗｹｯﾄ
1
009 108712000903
PLATE ﾌﾟﾚｰﾄ
1010 108712001001
LEVER ﾚﾊﾞｰ
1011 1041318036
SHAFT ｼｬﾌﾄ
1
012 108712001202
ROD ﾛｯﾄﾞ
2
013 1024609033
PIN ﾋﾟﾝ
2014 1087112021
PIN ﾋﾟﾝ
1015 1087120015
SPRING ﾊﾞﾈ
1
016 102460903701
PIN ﾋﾟﾝ
1
017 1083820018
BRACKET ﾌﾞﾗｹｯﾄ
1018 1041301080
KEY ｷｰ
NART10R-040010
1
N001
N531NART-016
ROLLER FOLLOWER ﾛｰﾗﾌｫﾛｱ
3X8,m6A,STEEL
2
N002
XPJ3A8FW
PARALLEL PIN ﾍｲｺｳﾋﾟﾝ
HSR12R1UUC1M+150LPM-2
2
N003
N513HSR1-302
LINEAR MOTION UNIT ﾘﾆｱﾓｰｼｮﾝﾕﾆｯﾄ
CDG1LN20-80-B54
1
N004
N401CDG1-723
CYLINDER ｼﾘﾝﾀﾞ
KQ2L06-01S
2
N005
KXF0DYW0A00
FITTING ﾂｷﾞﾃ
FJR8-1.25-8
1
N006
N405FJR8-006
FLOATING JOINT ﾌﾛｰﾃｨﾝｸﾞｼﾞｮｲﾝﾄ
NA5902
2
N007
N510003014AA
NEEDLE ROLLER BEARING ﾆｰﾄﾞﾙﾛｰﾗﾍﾞｱﾘﾝｸﾞ
R4X0.5
2
N008
KXF089MAA00
RING RING
CF5RA
1
N009
N531CF5RA
CAM FOLLOWER ｶﾑﾌｫﾛｱ
K5B0806
2
N010
N510022568AA
BUSHING ﾌﾞｯｼｭ
M8X10-45H A2J (Trivale
1
N011
N510018455AA
SET SCREW ﾛｯｶｸｱﾅﾂｷﾄﾒﾈｼﾞ
D-B54
2V 1 N401DB54
SWITCH ｽｲｯﾁ
M254
F10871-20-000-AG_01

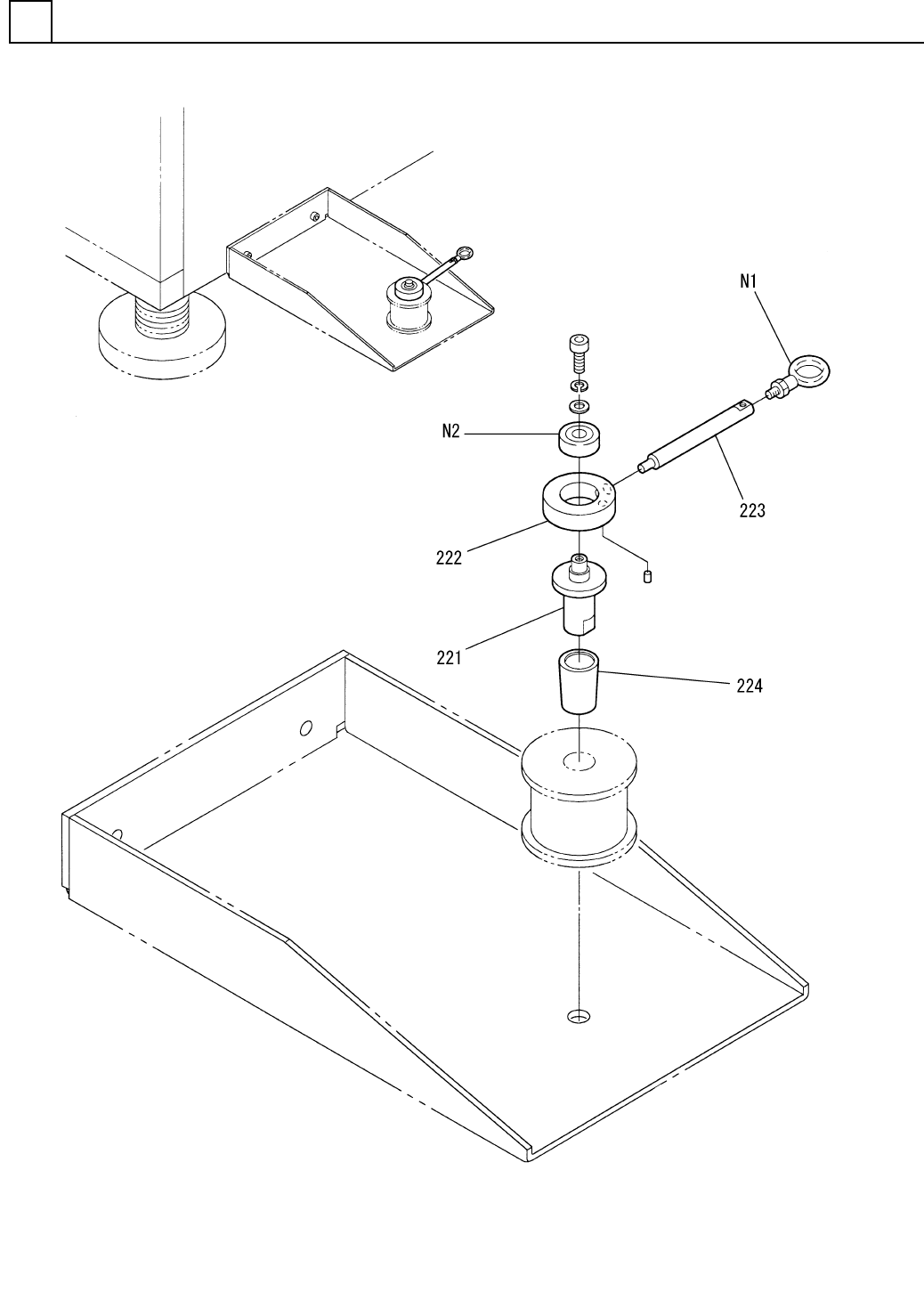

J.W.ﾘｰﾙ部
J.W.REEL SECT.
27
F10871-20-220
M255
