ｶﾊﾞ-部(3) COVER SECT. (3) 2 F10871-02-000-AJ_0 1-3 M13

100%1 / 296
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
2
ｶﾊﾞ-部(2)
COVER SECT.(2)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1009 108710200901
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1
011 1087102011
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1
015 1087102015
BRACKET ﾌﾞﾗｹｯﾄ
1018 108710201801
COVER ｶﾊﾞｰ
1020 108710202002
COVER ｶﾊﾞｰ
1
022 108710202201
COVER ｶﾊﾞｰ
1
042 108710204202
COVER ｶﾊﾞｰ
1043 108350204201
COVER ｶﾊﾞｰ
1046 108710204601
COVER(L) ｶﾊﾞｰ(L)
1
048 108710204801
SIDE COVER ｻｲﾄﾞｶﾊﾞｰ
1049 108380205702
COVER ｶﾊﾞｰ
1050 108710205003
COVER(R) ｶﾊﾞｰ(R)
1
055 1083802081
PLATE ﾌﾟﾚｰﾄ
2
057 1083502043
BRACKET ﾌﾞﾗｹｯﾄ
4715KL-05W-B20-P00
1
N005
N2384715-093
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
5,B-TYPE,STEEL,Z.C.T
17
N010
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
4,B-TYPE,STEEL,Z.C.T
16
N011
XWC4BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4,1-TYPE,STEEL,Z.C.T
8
N014
XNG4AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X10,+,STEEL,Z.C.T
26
N019
XST4+10FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
PG-47-02(8130)
2
N027
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
M4X12,+,STEEL,Z.C.T
8
N028
XST4+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
JB-AM5X8
17
N035
N986JBAM58
BOLT ﾎﾞﾙﾄ
M5X12
17
N036
N986YYYY-814
CAP ｷｬｯﾌﾟ
C-30-SG-24A,WHITE
1
N038
N980C30S-065
GROMMET ｸﾞﾛﾒｯﾄ
M12
F10871-02-000-AJ_01-2

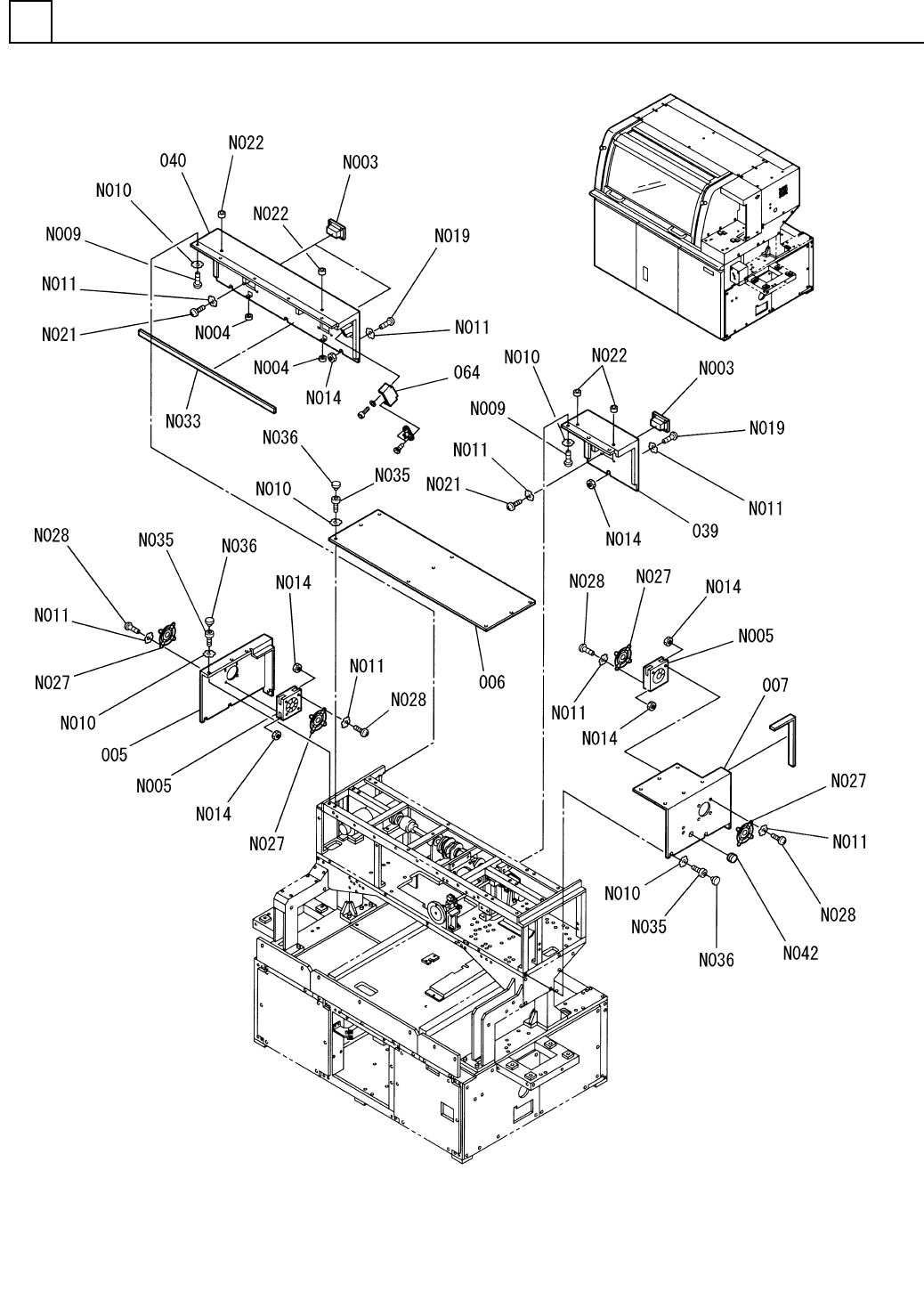

ｶﾊﾞ-部(3)
COVER SECT.(3)
2
F10871-02-000-AJ_01-3
M13
　　　
　　　　　　　　　 PART NAME
　　　　 REMARKS　
Q'TY
2
ｶﾊﾞ-部(3)
COVER SECT.(3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品　 番 個数 備 考
R
1
R
2
1005 108710200502
SIDE COVER (L) ｻｲﾄﾞｶﾊﾞｰ(L)
1
006 1087102006
TOP COVER ﾄｯﾌﾟｶﾊﾞｰ
1
007 108710200702
SIDE COVER (R) ｻｲﾄﾞｶﾊﾞｰ(R)
1039 1087102039
REAR COVER ｶﾊﾞｰ(REAR)
1040 108710204002
REAR COVER ｶﾊﾞｰ(REAR)
1
064 1087102064
BRACKET ﾌﾞﾗｹｯﾄ
A-1191-2-B
3
N003
N980A11912B
DRAWER PULL ﾄｯﾃ
C-30-CS-4
2
N004
N980C30CS4
RUBBER ｺﾞﾑ
4715KL-05W-B20-P00
2
N005
N2384715-093
FAN WITH MOTOR ﾌｧﾝﾓｰﾀ
M5X6,+,STEEL,Z.C.T
8
N009
XST5+6FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
5,B-TYPE,STEEL,Z.C.T
38
N010
XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
4,B-TYPE,STEEL,Z.C.T
28
N011
XWC4BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
M4,1-TYPE,STEEL,Z.C.T
16
N014
XNG4AFY
HEXAGON NUT ﾛｯｶｸﾅｯﾄ
M4X10,+,STEEL,Z.C.T
4
N019
XST4+10FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M4X6,+,STEEL,Z.C.T
12
N021
XST4+6FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
C-30-CS-5
4
N022
N980C30CS5
RUBBER ｺﾞﾑ
PG-47-02(8130)
4
N027
N238PG47-091
COVER(FAN) ｶﾊﾞｰ(ﾌｧﾝ)
M4X12,+,STEEL,Z.C.T
16
N028
XST4+12FY
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
E02S130035
1
N033
N263E02S-114
GASKET ｶﾞｽｹｯﾄ
JB-AM5X8
23
N035
N986JBAM58
BOLT ﾎﾞﾙﾄ
M5X12
23
N036
N986YYYY-814
CAP ｷｬｯﾌﾟ
C-30-BW-25-2,WHITE
1
N042
N980C30B-120
GROMMET ｸﾞﾛﾒｯﾄ
M14
F10871-02-000-AJ_01-3
