PART NAME REMARKS Q'TY 4 ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ 部 (ｱﾝﾛｰﾀ ﾞｶﾊﾞｰ部) LOADER & UN LOADER SECT.(UNLOA DER COVER SECT.) ｲﾗｽﾄ No. REF No. PART No. 部 品 品 番 個数 備 考 R 1 R 2 1 1087105900 UNLOADER COV ER UNIT ｱﾝﾛｰﾀﾞｶﾊﾞｰﾕﾆｯﾄ 1 901 10871…
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ｱﾝﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(UNLOADER COVER SECT.)
4
F10871-05-900-AD
M75
PART NAME
REMARKS
Q'TY
4
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ｱﾝﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(UNLOADER COVER SECT.)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087105900
UNLOADER COVER UNIT ｱﾝﾛｰﾀﾞｶﾊﾞｰﾕﾆｯﾄ
1
901 108710590104
FRONT COVER ｶﾊﾞｰ(FRONT)
1
902 108710590201
BRACKET ﾌﾞﾗｹｯﾄ
1903 108710590301
REAR COVER ｶﾊﾞｰ(REAR)
1904 1087105904
REAR BRACKET ﾌﾞﾗｹｯﾄ(REAR)
1
905 108710580302
NET ﾈｯﾄ
1
906 1087105906
BRACKET ﾌﾞﾗｹｯﾄ
1907 1087105805
BRACKET ﾌﾞﾗｹｯﾄ
1908 1087105806
BRACKET ﾌﾞﾗｹｯﾄ
1
909 1087102064
BRACKET ﾌﾞﾗｹｯﾄ
D4DS-2AFS S
1N 2 N300D4DS2AFS
SWITCH ｽｲｯﾁ
SC-6
1N 3 N300SC6
CONNECTOR ｺﾈｸﾀ
5,B-TYPE,STEEL,Z.C.T
7
N 4 XWC5BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
THA-32-2(3481)
1
N 5 N982THA3481
DRAWER PULL ﾄｯﾃ
6,B-TYPE,STEEL,Z.C.T
4N 7 XWC6BFY
TOOTHED LOCK WASHER ﾊﾂｷｻﾞｶﾞﾈ
UST4-15
2N 8 N986UST415
BOLT ﾎﾞﾙﾄ
M76
F10871-05-900-AD

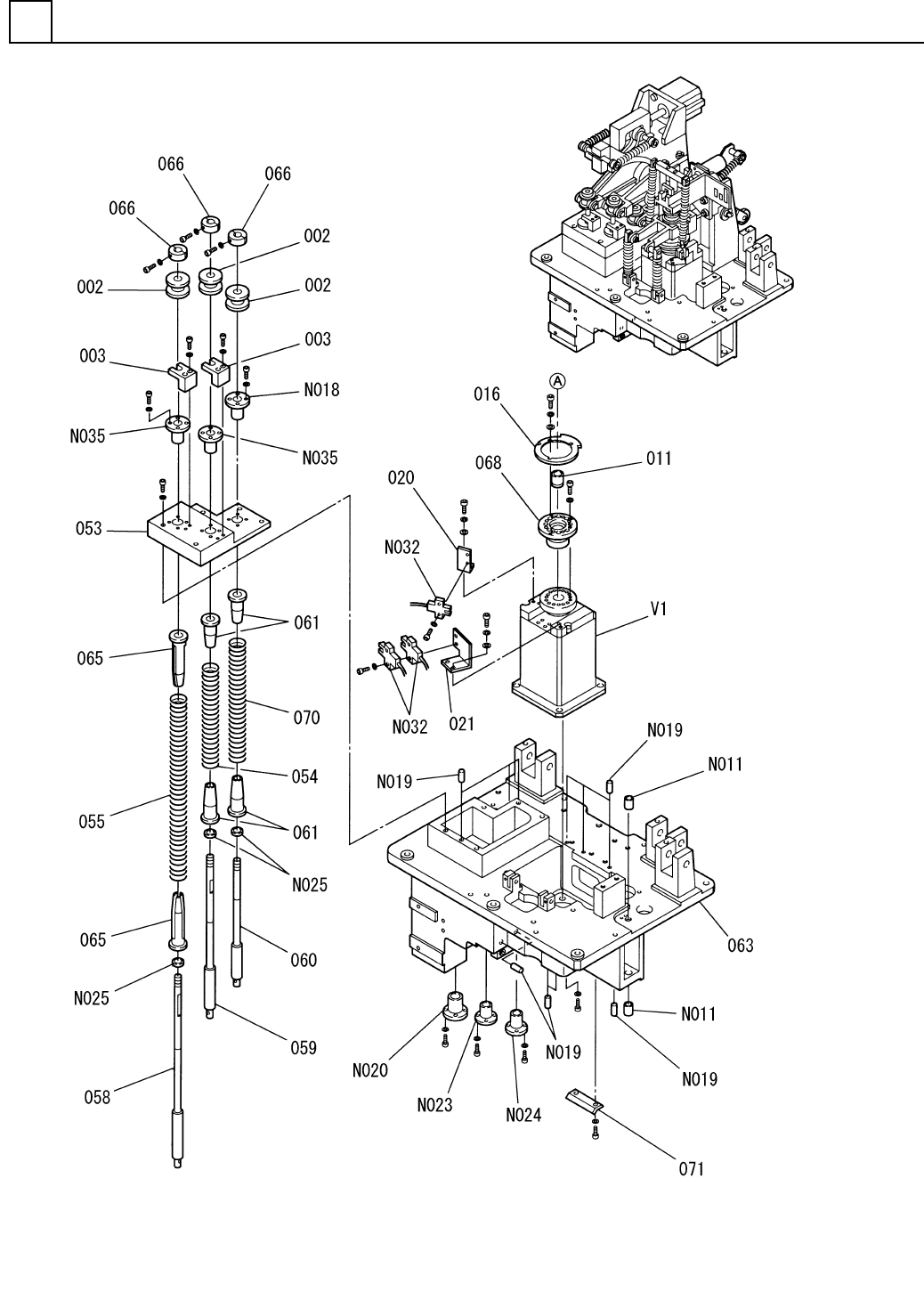

挿入ﾍｯﾄﾞ部(1)
INSERTION HEAD SECT.(1)
5
F10871-09-000-AF_01-1
