空圧制御部 (P-PUSH) PNEUMATIC S YSTEM SECT.(P-PUSH ) 1 F10871-03-050_A P7
PART NAME
REMARKS
Q'TY
1
空圧制御部(3)
PNEUMATIC SYSTEM SECT.(3)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1002 1046903004
PLATE ﾌﾟﾚｰﾄ
DAT-100S S
1
N007
N452DAT1-144
VACUUM PUMP ｼﾝｸｳﾎﾟﾝﾌﾟ
KQ2H12-03S
1
N015
N431KQ2H-152
FITTING ﾂｷﾞﾃ
KQ2L12-03S
1
N016
N431KQ2L-267
FITTING ﾂｷﾞﾃ
30-04,BLACK
1
N021
N4354UHK
TUBE ﾁｭｰﾌﾞ
30-12,BLACK
1
N027
N435CUHK
TUBE ﾁｭｰﾌﾞ
NK-80813
1
N033
N415NK80813
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
NK-80814
1
N034
N415NK80814
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
30-04,YELLOW
1
N048
N4354UHY
TUBE ﾁｭｰﾌﾞ
VV5Q04-04C-N
1
V19 N415VV5Q-312
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
VQ0140-5LO-C4
7V20 N411VQ04-414
SOLENOID VALVE ｿﾚﾉｲﾄﾞﾊﾞﾙﾌﾞ
KQ2P-04
7V21 N433KQ2P04
PLUG ﾌﾟﾗｸﾞ
AXT661-14A-11-M1-X7
1
V22 N415AXT6-902
CONNECTOR ｺﾈｸﾀ
AXT661-14A-11-M2-X7
1
V23 N415AXT6-903
CONNECTOR ｺﾈｸﾀ
AXT661-14A-11-M3-X7
1V24 N415AXT6-904
CONNECTOR ｺﾈｸﾀ
AXT661-14A-11-M4-X7
1V25 N415AXT6-905
CONNECTOR ｺﾈｸﾀ
VV5Q04-03C-N
1
V26 N415VV5Q-311
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
AXT661-14A-11-M5-X7
1
V27 N415AXT6-899
CONNECTOR ｺﾈｸﾀ
AXT661-14A-11-M6-X7
1V28 N415AXT6-900
CONNECTOR ｺﾈｸﾀ
AXT661-14A-11-M18-X7
1V29 N415AXT6-901
CONNECTOR ｺﾈｸﾀ
00532
2
V30 N45200532
BEARING ﾍﾞｱﾘﾝｸﾞ
00469
2
V31 N45200469
DIAPHRAGM ﾀﾞｲﾔﾌﾗﾑ
00325
3V32 N45200325
FILTER ﾌｨﾙﾀ
00349
2V33 N45200349
GASKET ｶﾞｽｹｯﾄ
00837
6
V34 N45200837
VALVE ﾊﾞﾙﾌﾞ
P6
F10871-03-000-AE_A-3

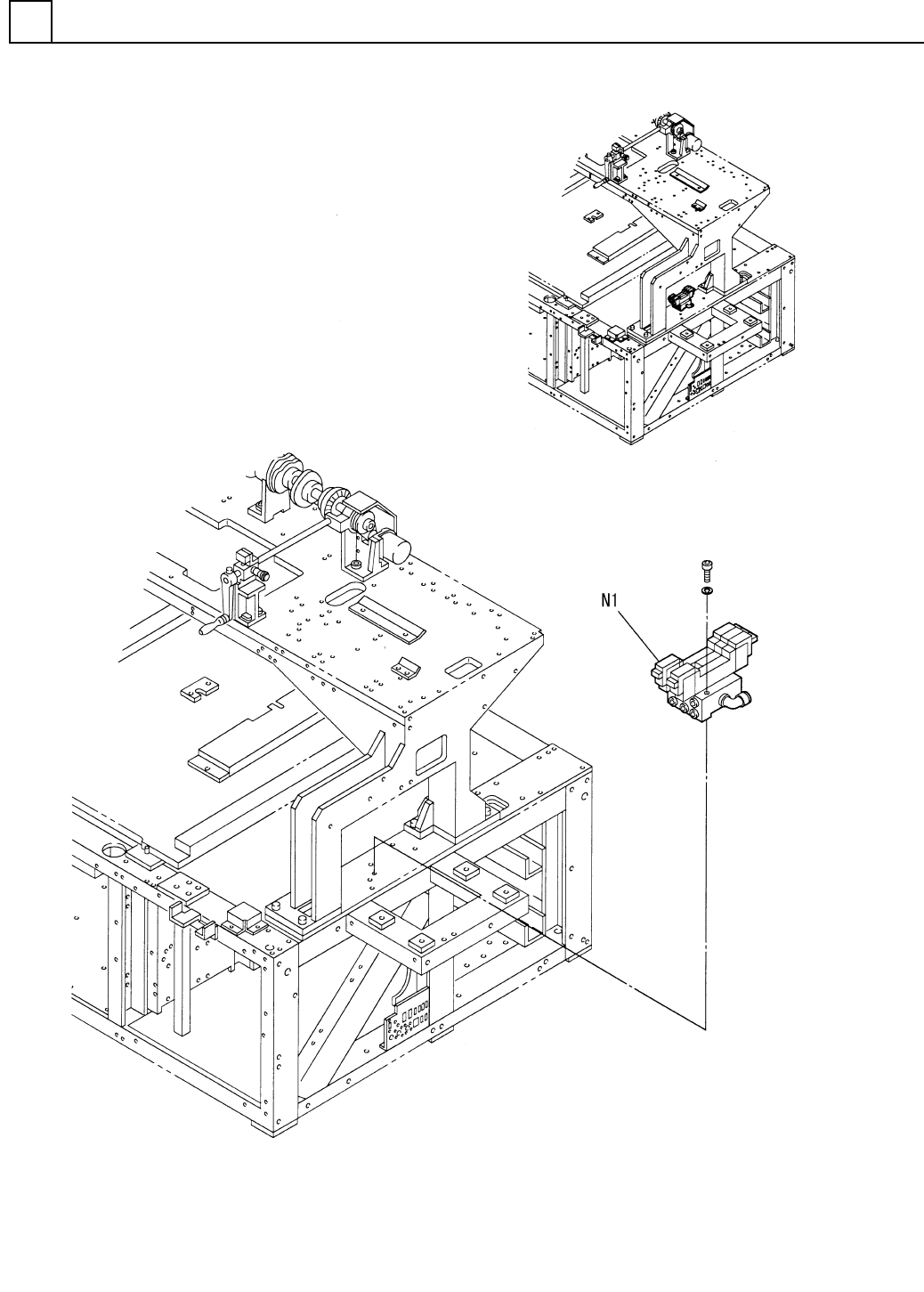

空圧制御部(P-PUSH)
PNEUMATIC SYSTEM SECT.(P-PUSH)
1
F10871-03-050_A
P7
PART NAME
REMARKS
Q'TY
1
空圧制御部(P-PUSH)
PNEUMATIC SYSTEM SECT.(P-PUSH)
ｲﾗｽﾄ
No.
REF
No.
PART No.
部 品 品 番 個数 備 考
R
1
R
2
1 1087103050
PNEUMATIC SYSTEM ｸｳｱﾂｾｲｷﾞｮﾕﾆｯﾄ
NK-80590-2
1
N 1 N411NK805902
MANIFOLD ﾏﾆﾎｰﾙﾄﾞ
P8
F10871-03-050_A
