User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.2 Technical data for the feeder modules
123
4.2 Technical data for the feeder modules
The following pages contain diagrams of all the feeder modules, technical data and the module
setting options on the placement system. 4
4.2.1 8 mm S II module
4
Fig. 4.2 - 1 8 mm S II module
Item no. 00141096-xx
Width 30 mm
Tracks per module 2
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 10000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 2mm / 4mm
Cycle time 60 ms
Main power supply 30 VDC
4 Component handling User Manual SIPLACE S-25 HM
4.2 Technical data for the feeder modules Software Version SR.502.xx 01/2001 US Edition
124
4.2.2 3 x 8 mm S module
4

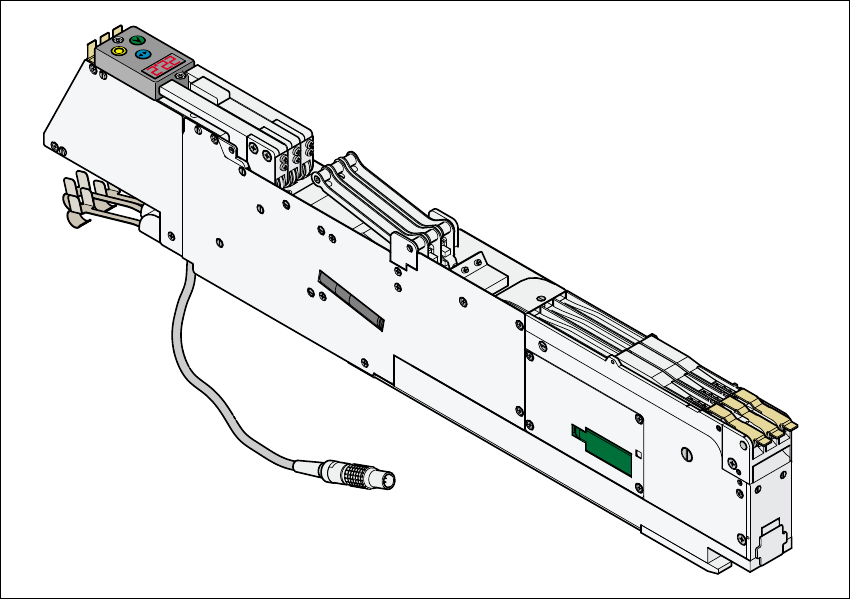

Fig. 4.2 - 2 3 x 8 mm S module
Item no. 00141098-xx
Width 30 mm
Tracks per module 3
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 10,000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 2mm / 4mm
Cycle time 60 ms
Main power supply 30 VDC
User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.2 Technical data for the feeder modules
125
4.2.3 3 x 8 mm S module for 0201/0402 components
4
Fig. 4.2 - 3 3x8mm S module for 0201/0402 components
Article number 00141099-xx
Width 30 mm
Component range 0201, 0402
Tracks per module 3
Maximum number of modules (DCA) 2 x 20
Stock of components for 7” reels approx. 10,000 – 15,000
Reel diameter 7” – 15” (up to 381 mm)
Transport distance (adjustable) 2mm ( 4mm)
Cycle time 60 ms
Power supply 30 V DC
