2 Operational Safety User Manual SIPLACE S-25 HM 2.1 Safety instructions Software Version SR .502.xx 01/2001 US Edition 60 Item 6 in Fig . 2.1 - 2 on page 53 showin g the warni ng signs on the bas ic mach ine - NAF T A r…

100%1 / 204
User Manual SIPLACE S-25 HM 2 Operational Safety
Software Version SR.502.xx 01/2001 US Edition 2.1 Safety instructions
59
2
2
2
2
2
2
2
2
Item 4 in Fig. 2.1 - 4
showing the warning
signs on the basic machine - NAFTA region 2
2
2
2
2
2
2
2
2
2
2
2
Item 5 in Fig. 2.1 - 4
showing the warning signs on the basic
machine - NAFTA region - visible when the covers are open 2
2 Operational Safety User Manual SIPLACE S-25 HM
2.1 Safety instructions Software Version SR.502.xx 01/2001 US Edition
60
Item 6 in Fig. 2.1 - 2
on page 53 showing the warning signs on the basic machine - NAFTA region
Feeder label (enlarged)
DANGER 2
Use only feeders, labeled as shown above, when feeding capacitors based on metal-powder (e.g.
tantalum). 2
2
Use only approved feeders, labeled
as shown below, when feeding
capacitors based on metal-powder
(e.g. tantalum).
Fire Hazard
Can cause death, serious injury
or property damage
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
WARNING
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
User Manual SIPLACE S-25 HM 2 Operational Safety
Software Version SR.502.xx 01/2001 US Edition 2.1 Safety instructions
61
2.1.7 Safety instructions for the PCB barcode reader (option)

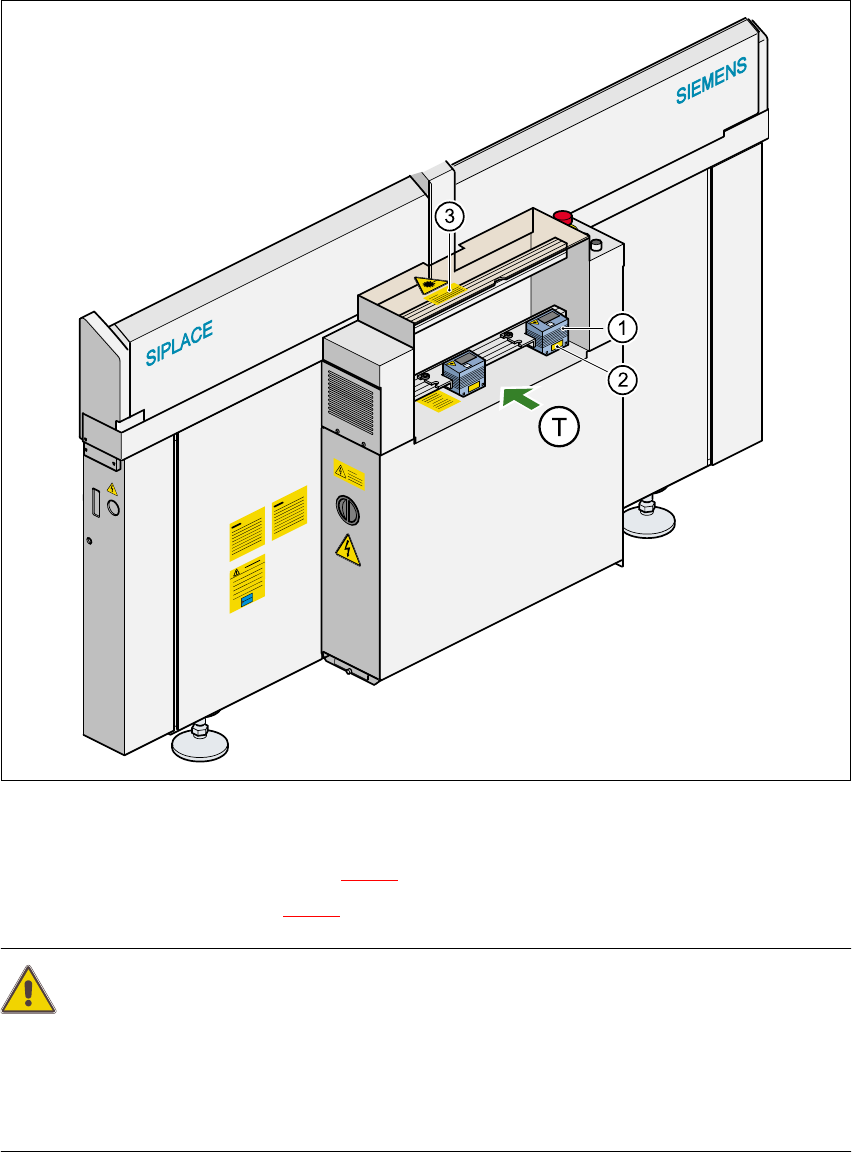

Fig. 2.1 - 5 PCB barcode reader (bottom)
(1) PCB barcode reader (bottom)
(2) ‘Laser radiation…’ label (see Fig. 2.1 - 6
)
(3) ‘Caution …’ label (see Fig. 2.1 - 7
)
CAUTION 2
The scanning beam of the barcode reader has a radiant power of less than 1 mW. The barcode
reader thus conforms to laser class 2 and, according to EN 60825-1, requires no special safety
devices or protective measures. NEVER look into the laser beam. There is also a safety circuit
that switches off the laser diode if the polygon wheel is stationary or rotating too slowly. 2
2
