2.1.14 Safety instructions for coupling and uncoupling the matrix tray changer
2
Fig. 2.1 - 13 Safety instructions for coupling and uncoupling the MTC
(1) Gap when the MTC is coupled
(2) MTC control cable
(3) Control cable for component feeder table
(4) Power supply connection
User Manual SIPLACE S-25 HM 2 Operational Safety
Software Version SR.502.xx 01/2001 US Edition 2.1 Safety instructions
73
WARNING 2
Å NEVER place your hand in the gaps between the MTC and machine frame (item 1) while the
machine is running.
Å Always couple the MTC to the machine before connecting or disconnecting the MTC control
cable at the machine socket (item 2).
Å Always couple the MTC to the machine before connecting or disconnecting the control cable
for the MTC’s integral component feeder table at the machine socket (item 3).
Å Always couple the MTC to the machine before connecting or disconnecting the power cable
from the external power supply (item 4).
Å NEVER operate the MTC if it is not coupled to the machine.
2 Operational Safety User Manual SIPLACE S-25 HM
2.2 Safety equipment Software Version SR.502.xx 01/2001 US Edition
74
2.2 Safety equipment
2.2.1 Protective covers
2

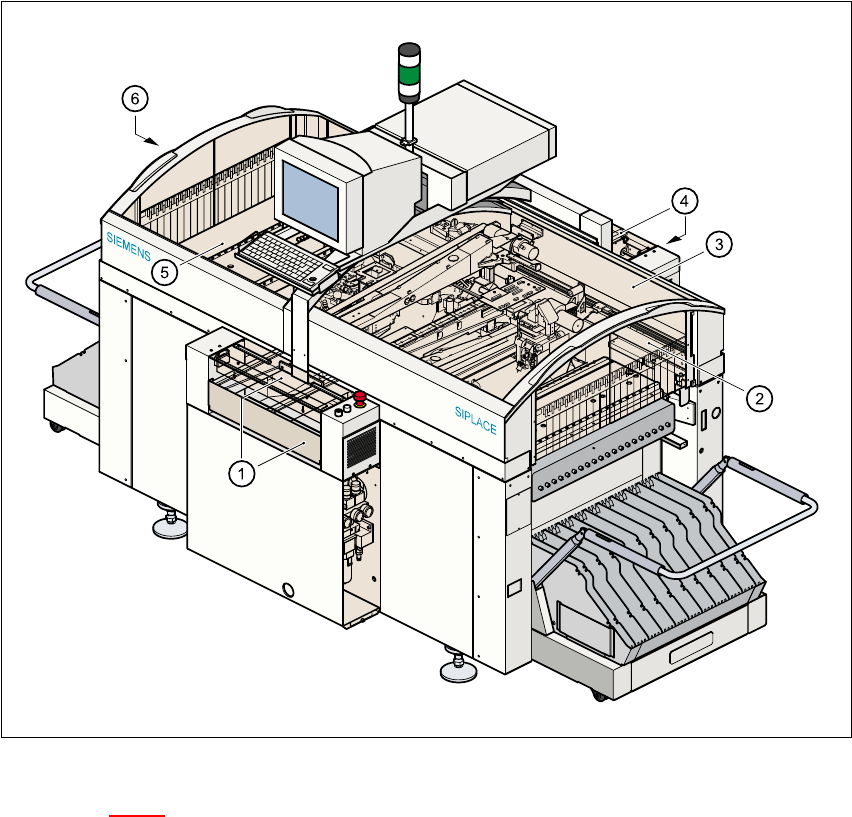

Fig. 2.2 - 1 SIPLACE S-23 HM safety equipment in the placement machine
Key to Fig. 2.2 - 1
(1) Cover and guard on the input belt
(2) Safety panels, righthand side
(3) Protective cover
(4) Cover and guard on the output conveyor
(5) Protective cover
(6) Safety panels, lefthand side
