4 Component handling User Manual SIPLACE S-25 HM
4.2 Technical data for the feeder modules Software Version SR.502.xx 01/2001 US Edition
128
4.2.6 12 mm S module for capacitors based on powdered metal, model E

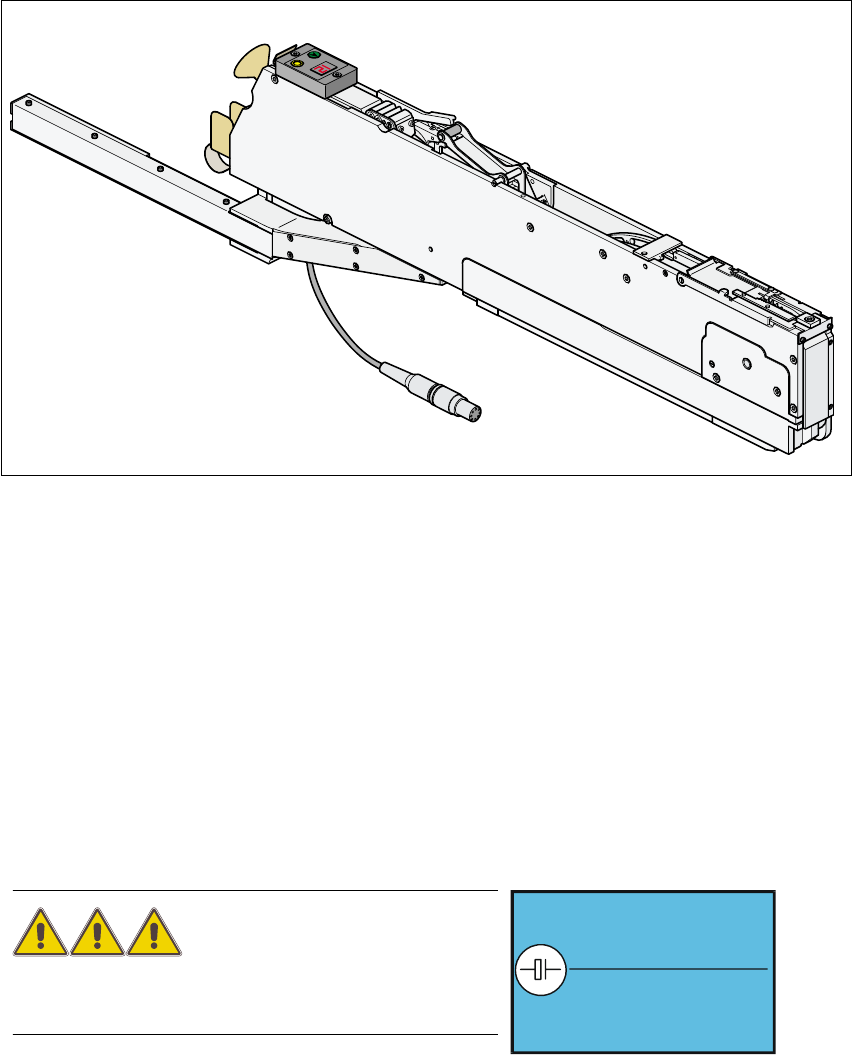

Fig. 4.2 - 6 12 mm S module for capacitors based on powdered metal, model E
Item no. 00141117-xx
Width 30 mm
Tracks per module 1
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Maximum tape height 3,6 mm
Feeding stroke (variable) 4mm, 8mm, 12mm, 16mm
Cycle time 60 ms ± 5 ms (feeding stroke: 8 mm)
Vibrator time (waiting time) 100 ms
Main power supply 30 VDC
DANGER 4
Use only feeders, labeled as shown above, when fee-
ding capacitors based on metal-powder (e.g. tantalum).4
Feeder label (enlarged)
Approved for
capacitors based on
metal-powder
Freigegeben für
Kondensatoren auf
Metallpulver-Basis
User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.2 Technical data for the feeder modules
129
4.2.7 24/32 mm S module
4

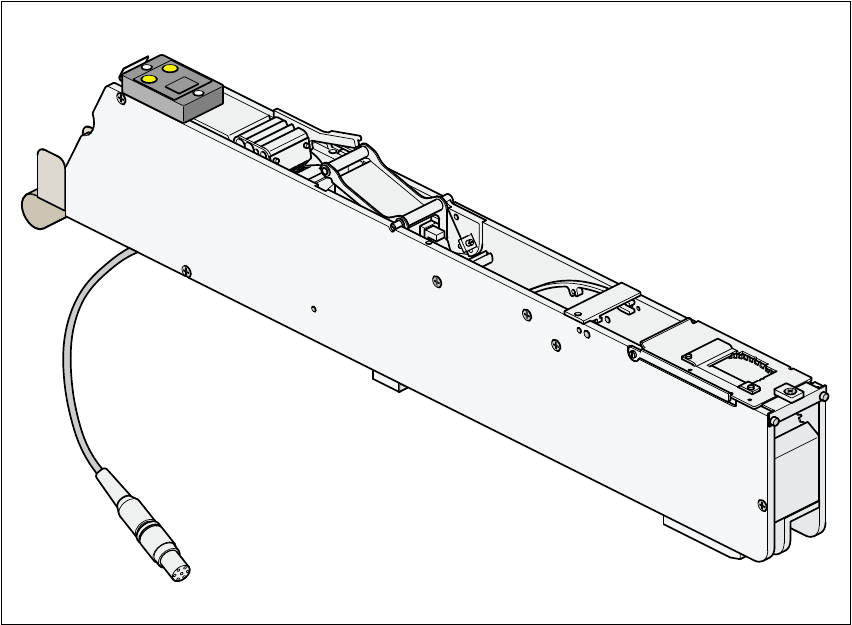

Fig. 4.2 - 7 24/32 mm S module
Item no. 00141093-xx
Width 45 mm
Tracks per module 1
Maximum number of modules 2 x 13
Magazine capacity for 7" reels Approx. 2000
Reel diameter up to 15" (up to 381 mm)
Feeding stroke (variable) 4 to 32 mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms (feeding stroke: 8 mm)
Main power supply 30 VDC
4 Component handling User Manual SIPLACE S-25 HM
4.2 Technical data for the feeder modules Software Version SR.502.xx 01/2001 US Edition
130
4.2.8 44 mm S module
4

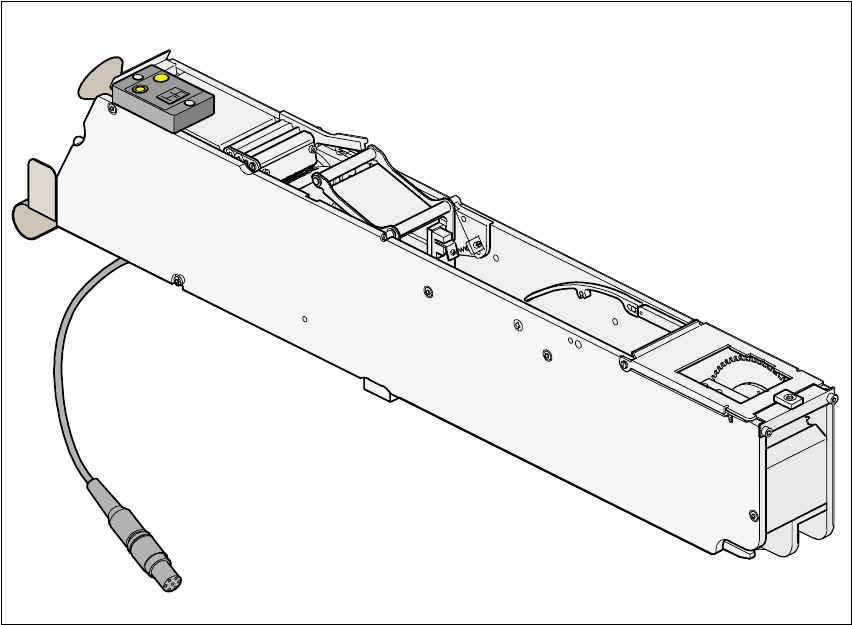

Fig. 4.2 - 8 44 mm S module
Item no. 00141094-xx
Width 60 mm
Tracks per module 1
Maximum number of modules 2 x 10
Magazine capacity for 7" reels Approx. 2000
Reel diameter up to 15" (up to 381 mm)
Feeding stroke (variable) 4 to 44mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms (feeding stroke: 8 mm)
Main power supply 30 VDC
