User Manual SIPLAC E S-25 HM 4 Component han dling Software Version SR.502.xx 01/2001 US Edition 4.2 Technical data for the feeder modules 125 4.2.3 3 x 8 mm S module for 0201/0402 component s 4 Fig. 4.2 - 3 3 x 8 mm S m…
4 Component handling User Manual SIPLACE S-25 HM
4.2 Technical data for the feeder modules Software Version SR.502.xx 01/2001 US Edition
124
4.2.2 3 x 8 mm S module
4

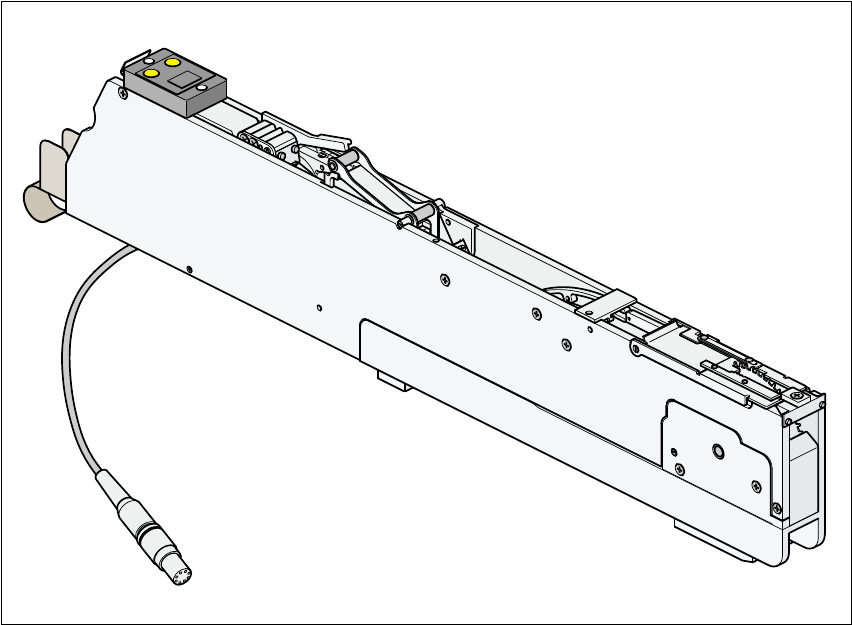

Fig. 4.2 - 2 3 x 8 mm S module
Item no. 00141098-xx
Width 30 mm
Tracks per module 3
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 10,000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 2mm / 4mm
Cycle time 60 ms
Main power supply 30 VDC
User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.2 Technical data for the feeder modules
125
4.2.3 3 x 8 mm S module for 0201/0402 components
4
Fig. 4.2 - 3 3x8mm S module for 0201/0402 components
Article number 00141099-xx
Width 30 mm
Component range 0201, 0402
Tracks per module 3
Maximum number of modules (DCA) 2 x 20
Stock of components for 7” reels approx. 10,000 – 15,000
Reel diameter 7” – 15” (up to 381 mm)
Transport distance (adjustable) 2mm ( 4mm)
Cycle time 60 ms
Power supply 30 V DC
4 Component handling User Manual SIPLACE S-25 HM
4.2 Technical data for the feeder modules Software Version SR.502.xx 01/2001 US Edition
126
4.2.4 12/16 mm S module
4
Fig. 4.2 - 4 12/16 mm S module
Item no. 00141092-xx
Width 30 mm
Tracks per module 1
Maximum number of modules 2 x 20
Magazine capacity for 7" reels Approx. 4000
Reel diameter 7" - 15" (up to 381 mm)
Feeding stroke (variable) 4 mm, 8 mm, 12 mm, 16 mm
Cycle time 60 ms ± 5 ms (feeding stroke: 8 mm)
Main power supply 30 VDC
