User Manual SIPLAC E S-25 HM 4 Component han dling Software Version SR.502.xx 01/2001 US Edition 4.2 Technical data for the feeder modules 131 4.2.9 Linear vibrat ory feeder , type 3 4 Fig. 4.2 - 9 Linear vibratory feede…
4 Component handling User Manual SIPLACE S-25 HM
4.2 Technical data for the feeder modules Software Version SR.502.xx 01/2001 US Edition
130
4.2.8 44 mm S module
4
Fig. 4.2 - 8 44 mm S module
Item no. 00141094-xx
Width 60 mm
Tracks per module 1
Maximum number of modules 2 x 10
Magazine capacity for 7" reels Approx. 2000
Reel diameter up to 15" (up to 381 mm)
Feeding stroke (variable) 4 to 44mm (in 4 mm increments)
Cycle time 60 ms ± 5 ms (feeding stroke: 8 mm)
Main power supply 30 VDC
User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.2 Technical data for the feeder modules
131
4.2.9 Linear vibratory feeder, type 3
4
Fig. 4.2 - 9 Linear vibratory feeder, type 3
Item no. 00142031-xx
Width 30 mm
Tracks per module 1, 2, 3 or 6
Maximum number of modules 2 x 20
Magazine capacity Up to 150 per stick steel magazine
depending on the component length
Stick steel magazine data 4.5 mm wide / x 6
9.5 mm wide / x 3
11 mm wide / x 2
15 mm wide / x 2
30 mm wide / x 1
Cycle time Depends on the component
Main power supply 30 VDC
4 Component handling User Manual SIPLACE S-25 HM
4.2 Technical data for the feeder modules Software Version SR.502.xx 01/2001 US Edition
132
4.2.10 Bulk case feeder
4

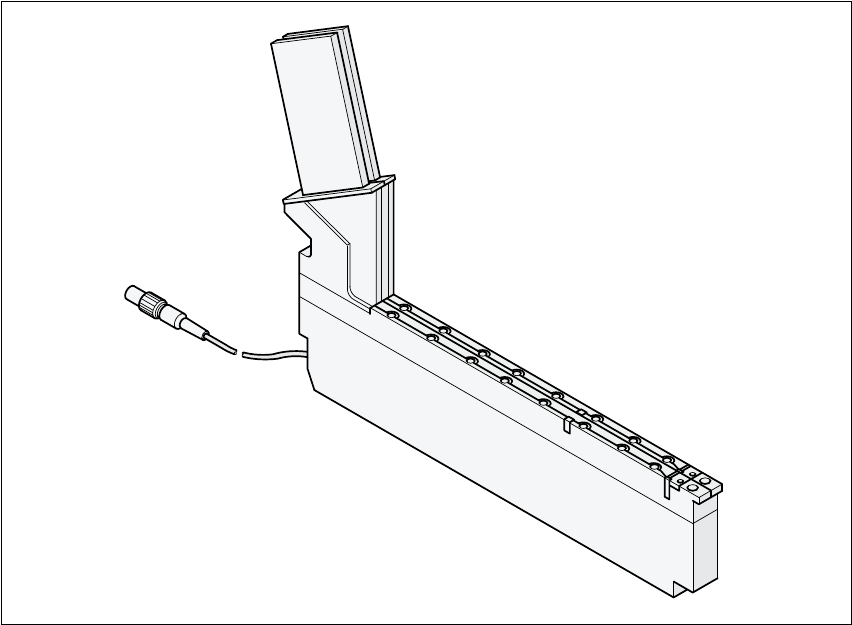

Fig. 4.2 - 10 Bulk case feeder
Item no. 00142318-xx
Width 30 mm
Tracks per module 2
Maximum number of modules 2 x 20
Magazine capacity Approx. 5000
Feeding rails 0603 / 0.45 mm high Item no. 00142321-xx
0603 / 0.80 mm high Item no. 00142322-xx
0805 / 0.45 mm high Item no. 00142323-xx
0805 / 0.60 mm high Item no. 00142324-xx
0805 / 0.85 mm high Item no. 00142325-xx
0805 / 1.25 mm high Item no. 00142326-xx
Minimelf Item no. 00142328-xx
Cycle time < 80 ms
Main power supply 30 VDC
Compressed air supply 2.0 bar + 0.3 bar
