User Manual SIPLACE S-25 HM 5 Station extensions

Software Version SR.502.xx 01/2001 US Edition 5.2 Component barcode

161

5.2.2 Notes on operation

– The barcode reader must connected.

– The barcode for each component must entered on the line computer.

Å To do this, select the "Set-up check with barcode" function from the Machine options menu.

Fig. 5.2 - 2 Set-up check with barcode

PLEASE NOTE: 5

If one of the digits of the barcode has been assigned to a filter (i.e. a star *), this digit will not be

evaluated. This enables data contained in the barcode, such as the date or company name, to be

skipped. 5

– If the component barcode has been activated on the line computer and "Set-up check with bar-

code" has been selected from the machine options on the station, the "Fill location" and "Fill

track with barcode" functions cannot be used manually.

– If there are tracks with components without a barcode, then a manual "Fill" is possible, even if

the refill check has been activated.

5 Station extensions User Manual SIPLACE S-25 HM

5.2 Component barcode Software Version SR.502.xx 01/2001 US Edition

162

Options in the event of an illegible barcode 5

Å Deactivate the refill check from the Machine options menu.

Å Enter the Barcode manually.

5.2.3 Operation

Å Select the "Empty tracks" view from the Set-up menu.

Å Use the barcode reader to scan the desired track barcode.

If the track is contained in the set-up and the component has a barcode, the "Set-up check with

barcode" dialog will appear, specifying the corresponding track.

PLEASE NOTE 5

You can open the dialog by clicking on the desired track or by clicking on the "Set-up check

with barcode" button. 5

The track can be filled once the comparison has been carried out and the return barcode has been

scanned. 5

5.2.4 Technical data

Component barcode

Max. resolution 0.13 mm

Scanning speed 36 scans/sec.

Laser class IEC class 2

Degree of protection IP 64

Compatible barcode types

Code 39 (normal / FULL ASCII)

EAN/UPC (family with/without ADD ON

CODABAR

INTERLEAVED 2/5

NORMAL 2/5 (5 bars)

(others available upon request)

User Manual SIPLACE S-25 HM 5 Station extensions

Software Version SR.502.xx 01/2001 US Edition 5.3 Dual conveyor

163

5.3 Dual conveyor

5.3.1 Structure of the dual conveyor

The conveyor belts are driven by DC motors. There is a lifting table for holding the PCBs in each

processing area. The width of the PCB conveyor can be adjusted either via the menu or using the

line computer. 5

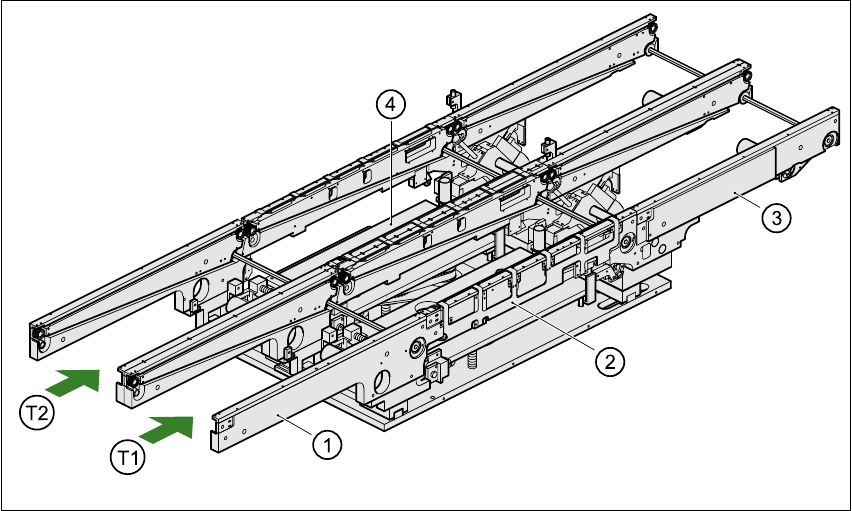

Fig. 5.3 - 1 Structure of the dual conveyor

5.3.2 General

As the name suggests, the dual conveyor has two transport tracks, which are electrically and me-

chanically independent of one another. In the Standard version, the right-hand side is the fixed

side. There is another version, however, in which the left-hand side is the fixed side. 5

(1) Input conveyor

(2) Center conveyor

(3) Output conveyor

(4) Lifting table

T1 Transport track 1 5

T2 Transport track 2 5
