4 Component handling User Manual SIPLACE S-25 HM
4.2 Technical data for the feeder modules Software Version SR.502.xx 01/2001 US Edition
132
4.2.10 Bulk case feeder
4
Fig. 4.2 - 10 Bulk case feeder
Item no. 00142318-xx
Width 30 mm
Tracks per module 2
Maximum number of modules 2 x 20
Magazine capacity Approx. 5000
Feeding rails 0603 / 0.45 mm high Item no. 00142321-xx
0603 / 0.80 mm high Item no. 00142322-xx
0805 / 0.45 mm high Item no. 00142323-xx
0805 / 0.60 mm high Item no. 00142324-xx
0805 / 0.85 mm high Item no. 00142325-xx
0805 / 1.25 mm high Item no. 00142326-xx
Minimelf Item no. 00142328-xx
Cycle time < 80 ms
Main power supply 30 VDC
Compressed air supply 2.0 bar + 0.3 bar
User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.3 Setting up the feeder modules
133
4.3 Setting up the feeder modules
4.3.1 Preparing the component table and module for set-up
Å Select the setting range for the feeder module to be used
(see Vibrator configuration).
Å Move the placement head to the waiting position and press the emergency stop button.
Å Open the protective covers.
Å Clean the contact surface for the feeder modules and the contact surface for the feeder
modules on the component table.
Å Place the feeder module on the previously selected track on the component table (see Vi-
brator configuration).
4.3.2 Insert the module
Å
Insert the module so that the back of the module is held by the centering ball and the front
is fixed in place by the corresponding centering pin on the component table. Make sure that
the module is placed on the component table in the correct position for its width.
Å Check that the module is firmly seated on the component table.
Å Connect the module plug to the socket beneath the location.
PLEASE NOTE 4
When you connect the module, make sure that you use the right socket for the location
since the module receives the control pulse via this socket. The feeder module may not
work correctly if it is not connected to the right socket. 4
Å Close the protective covers and switch the control on again.
Å Carry out a refill check if necessary.
Å Continue placement.
4 Component handling User Manual SIPLACE S-25 HM
4.3 Setting up the feeder modules Software Version SR.502.xx 01/2001 US Edition
134
4

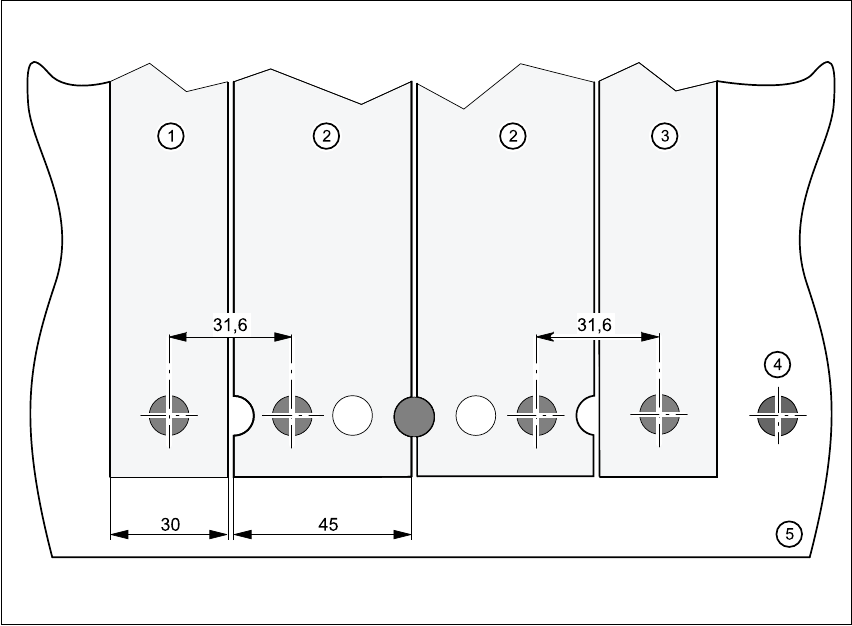

Fig. 4.3 - 1 Inserting 30 or 45 mm wide feeder modules on the component table
(1) Feeder module, 30 mm wide
(2) Feeder module, 45 mm wide
(3) Feeder module, 30 mm wide
(4) Centering ball
(5) Component table
