User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.4 Tape container
135
4.4 Tape container
4.4.1 Overview
Reels up to 15" in diameter may be used, although for 15" reels you should use spindles as
well. Insert the spindles into the partitions as shown in Fig. 4.4 - 1
. 4
PLEASE NOTE 4
We recommend that you use spindles if the tape reel diameter exceeds 5". This will ensure
that the feeder modules operate reliably. 4

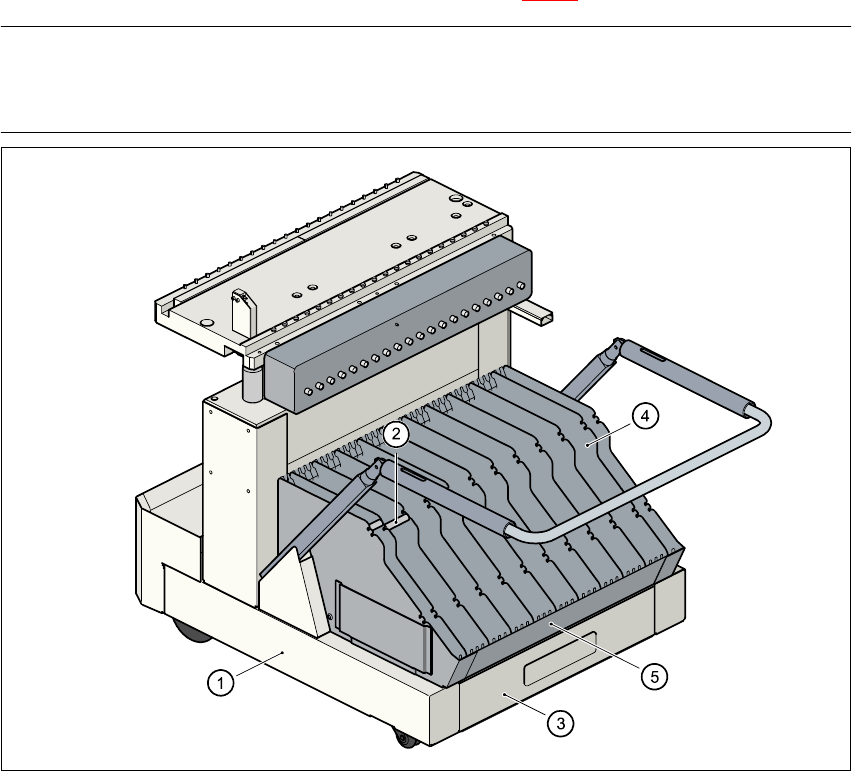

Fig. 4.4 - 1 Component table and tape container
(1) Component changeover table
(2) Spindle
(3) Waste tape container
(4) Partition
(5) Tape container
4 Component handling User Manual SIPLACE S-25 HM
4.5 Used tape cutter Software Version SR.502.xx 01/2001 US Edition
136
4.5 Used tape cutter
4.5.1 General
The placement system has a used tape cutter at each of the two component table locations. It
is used to cut off the waste tape. The cut pieces of tape drop into the waste tape container in
the component table. 4
Å Empty the waste tape container every day.

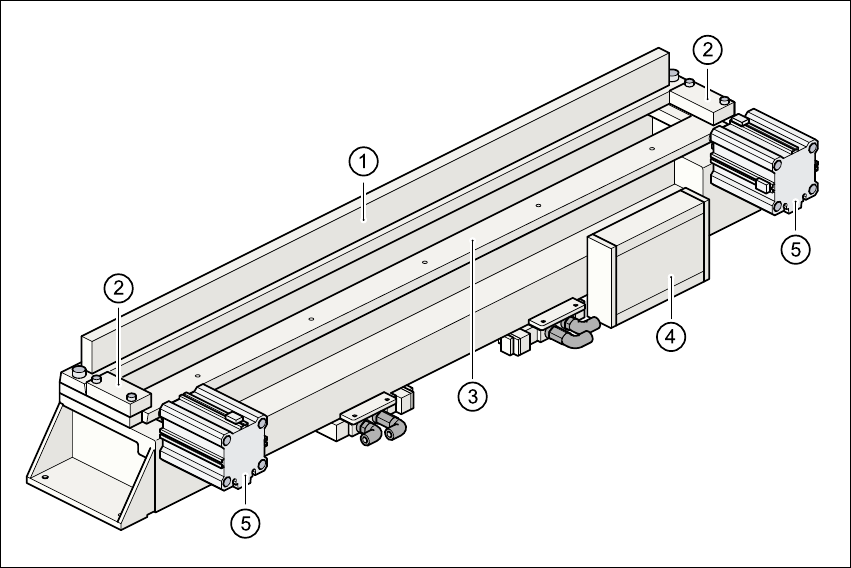

Fig. 4.5 - 1 Used tape cutter
(1) Stationary cutting blade
(2) Retainer
(3) Moving cutting blade
(4) Electronic control unit
(5) Short stroke cylinder
User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.5 Used tape cutter
137
4.5.2 Inserting the tape into the tape cutter
4

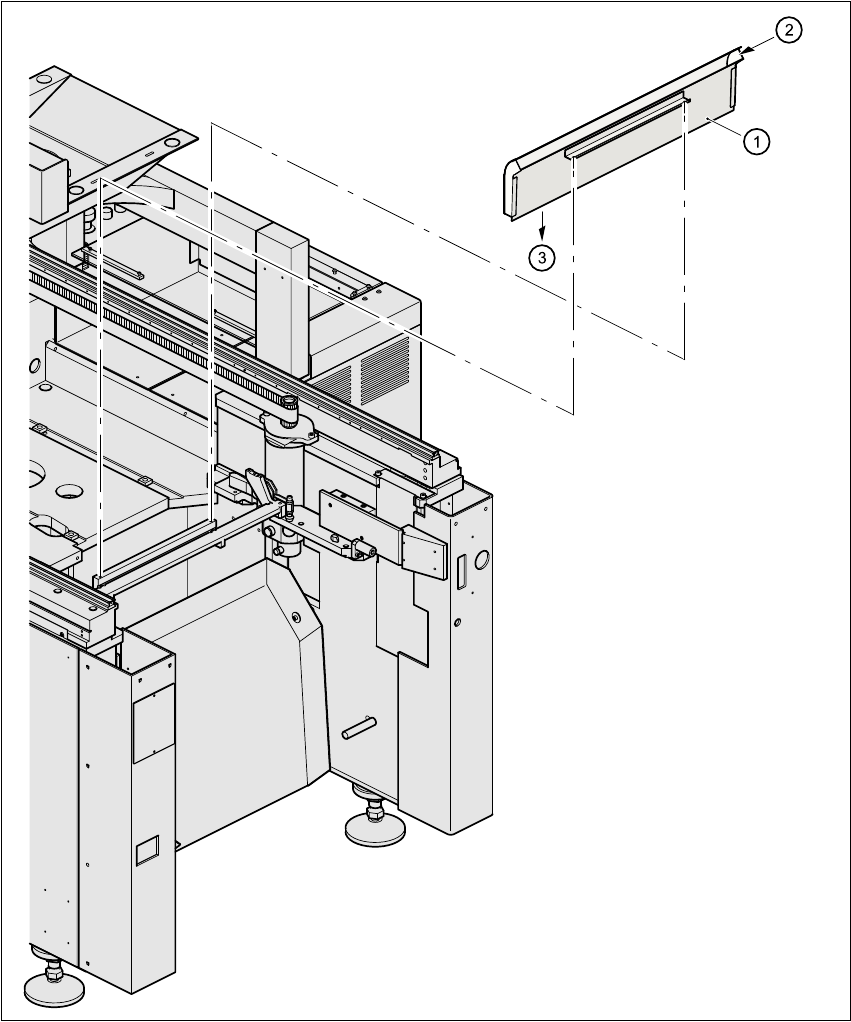

Fig. 4.5 - 2 Inserting the tape into the tape cutter
(1) Used tape channel
(2) Used tape
(3) To used tape cutter
