5 Station extensions User Manual SIPLACE S-25 HM
5.1 Nozzle changer for the 12-segment collect&place head Software Version SR.502.xx 01/2001 US Edition
154
Fig. 5.1 - 2 Magazine and nozzle garages
(1) Positioning fiducial
(2) Locking plate
(3) Nozzle garage
(4) Hole for the parallel pin for centering the magazines
(5) Hole for the parallel pin of the slide mechanism
(6) Slot for the parallel pin for centering the magazines
User Manual SIPLACE S-25 HM 5 Station extensions
Software Version SR.502.xx 01/2001 US Edition 5.1 Nozzle changer for the 12-segment collect&place head
155
5.1.4 Notes on operation
Å
When you fill a magazine with a certain nozzle type for the first time, attach an adhesive label
to identify the type.
PLEASE NOTE 5
Only ONE
nozzle type must be used in each magazine.
Fill the magazines off the machine and always replace complete magazines. 5
Å Open the locking plate and place the nozzles in the nozzle garages.
Å Close the locking plate so that the nozzles cannot drop out of the magazines.
CAUTION 5
Before you fill magazine, make sure that all the nozzles on the collect&place head have been
returned to their magazines. 5
Å See the UNIX line computer operating instructions for programming the nozzle changers on
the line computer.
PLEASE NOTE 5
Å Do not allow components to drop onto the magazines. If they do, they could jam the locking
plate.
Å Do not allow components to drop onto free feeder module locations because they will stick to
the magnetic bar. Production may have to be interrupted if the feeder modules are not placed
on the component table correctly. You should therefore regularly clean the magazines and free
locations.
5 Station extensions User Manual SIPLACE S-25 HM
5.1 Nozzle changer for the 12-segment collect&place head Software Version SR.502.xx 01/2001 US Edition
156
5.1.5 Emptying the reject bin
The capacity of the reject bin is approximately 50 nozzles of the 9xx nozzle type. The reject bin
must be regularly emptied in order to prevent faults during the placement sequence. 5

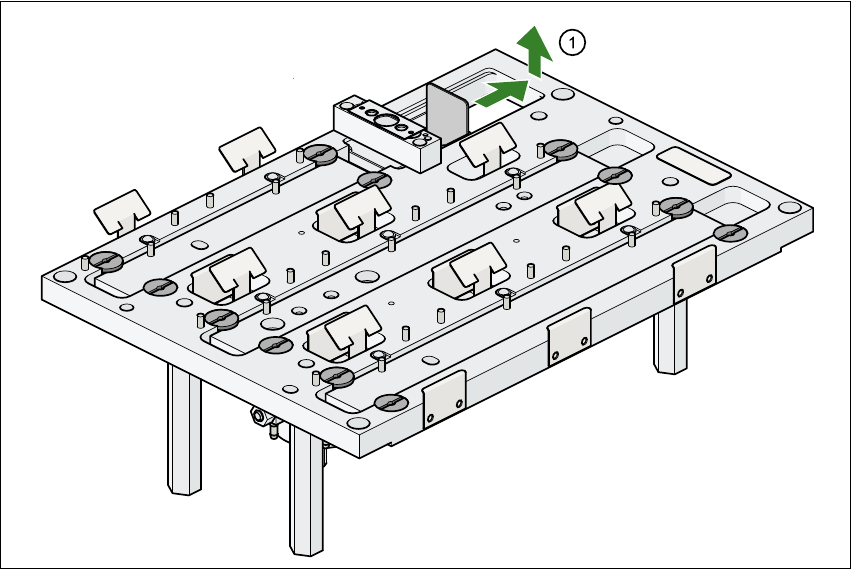

Fig. 5.1 - 3 Emptying the reject bin
(1) Remove the reject bin
5
Å Pull the reject bin out of its retainer in the direction indicated by the arrow, and lift the bin out
of its holder.
Å To return the reject bin, push it back into the retainer.
