4.7 Matrix tray changer
4.7.1 Overview
Fig. 4.7 - 1 Matrix tray changer, back view
(1) Main switch
(2) Emergency stop mushroom-head push-button
(3) Tower 1 for up to 40 waffle trays
(4) Tower 2 for up to 40 waffle trays
(5) Feed axis 1
(6) Feed axis 2
4 Component handling User Manual SIPLACE S-25 HM
4.7 Matrix tray changer Software Version SR.502.xx 01/2001 US Edition
144
4.7.2 General
The use of flatpack ICs is becoming an increasingly significant aspect in the production of flat
modules. These components are now almost exclusively provided in waffle trays.
The space required by waffle trays is relatively large in comparison to the component density,
however.
The low component capacity also requires the waffle trays to be changed frequently, which
means that the placement sequence has to be interrupted if the trays are changed manually.
The use of a matrix tray changer (MTC) eliminates this unnecessary time loss since the waffle
trays are stored and automatically changed. Programmable, random access to up to 2 x 40
waffle trays also increases the range of components that can be made available.
PLEASE NOTE: 4
The MTC can be coupled at location 1 on the right-hand side of the machine and/or at location
3 on the left-hand side of the machine. It does not take up the whole width of a location. The
component feeder table integrated into the matrix tray changer (see item 2 in Fig. 4.7 - 2
) has a
capacity of 9 feeder locations. 4
User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.7 Matrix tray changer
145

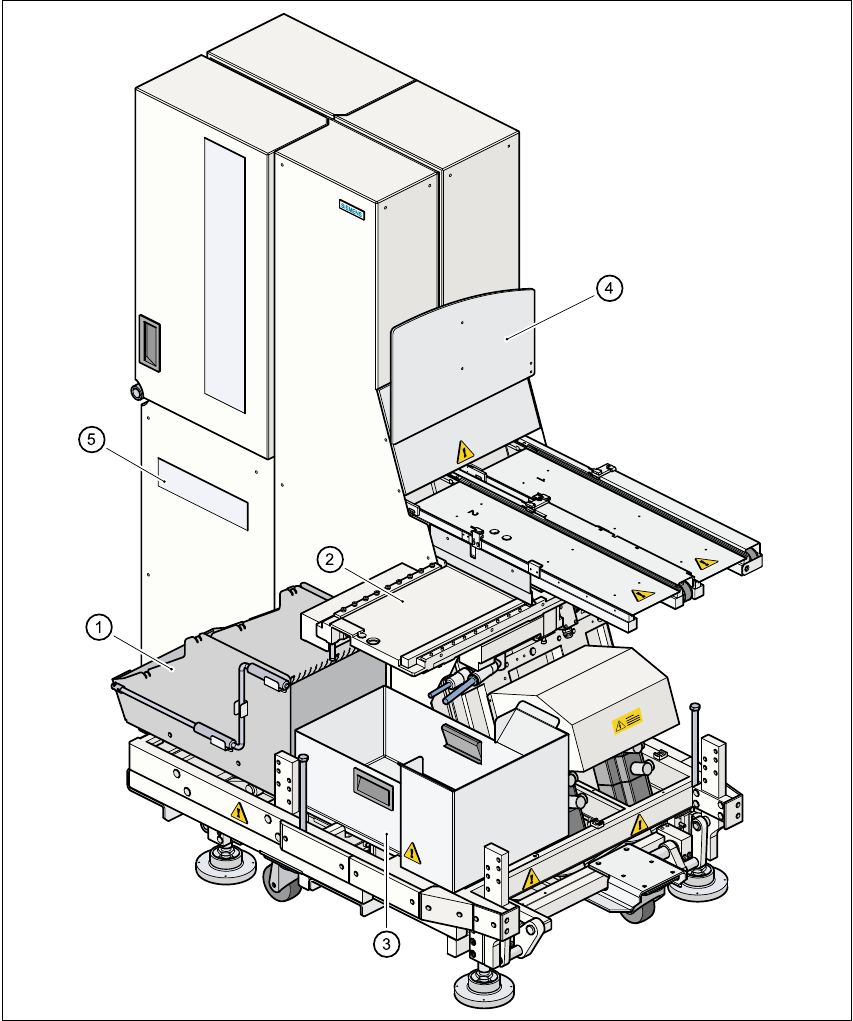

Fig. 4.7 - 2 Matrix tray changer, front view
(1) Tape container
(2) Integral component feeder table with 9 locations
(3) Waste tape container
(4) Guard for the inside of the SIPLACE machine
(5) Display panel for statuses, warning and faults
