4.5 Used tape cutter
4.5.1 General
The placement system has a used tape cutter at each of the two component table locations. It
is used to cut off the waste tape. The cut pieces of tape drop into the waste tape container in
the component table. 4
Å Empty the waste tape container every day.
Fig. 4.5 - 1 Used tape cutter
(1) Stationary cutting blade
(2) Retainer
(3) Moving cutting blade
(4) Electronic control unit
(5) Short stroke cylinder
User Manual SIPLACE S-25 HM 4 Component handling
Software Version SR.502.xx 01/2001 US Edition 4.5 Used tape cutter
137
4.5.2 Inserting the tape into the tape cutter
4
Fig. 4.5 - 2 Inserting the tape into the tape cutter
(1) Used tape channel
(2) Used tape
(3) To used tape cutter
4 Component handling User Manual SIPLACE S-25 HM
4.5 Used tape cutter Software Version SR.502.xx 01/2001 US Edition
138
PLEASE NOTE
On SIPLACE automatic placement systems, only use the tape feeder modules specified for
these machines. The used tape channel which removes the used tape is located upstream of
the feeder modules. 4
Å Insert the tape into the feeder as described in the corresponding section.
Å Guide the used tape into the used tape channel of the cutter as described in Fig. 4.5 - 2
The used tape guide channels are located upstream of the feeder modules. They are posi-
tioned directly above the used tape cutters. 4
The tape is automatically guided through the used tape guide channel into the used tape cutter
below. There, the tape is shredded by the pneumatically-actuated cutting blade. The waste
tape then passes via the waste tape chute into the waste container. 4
4

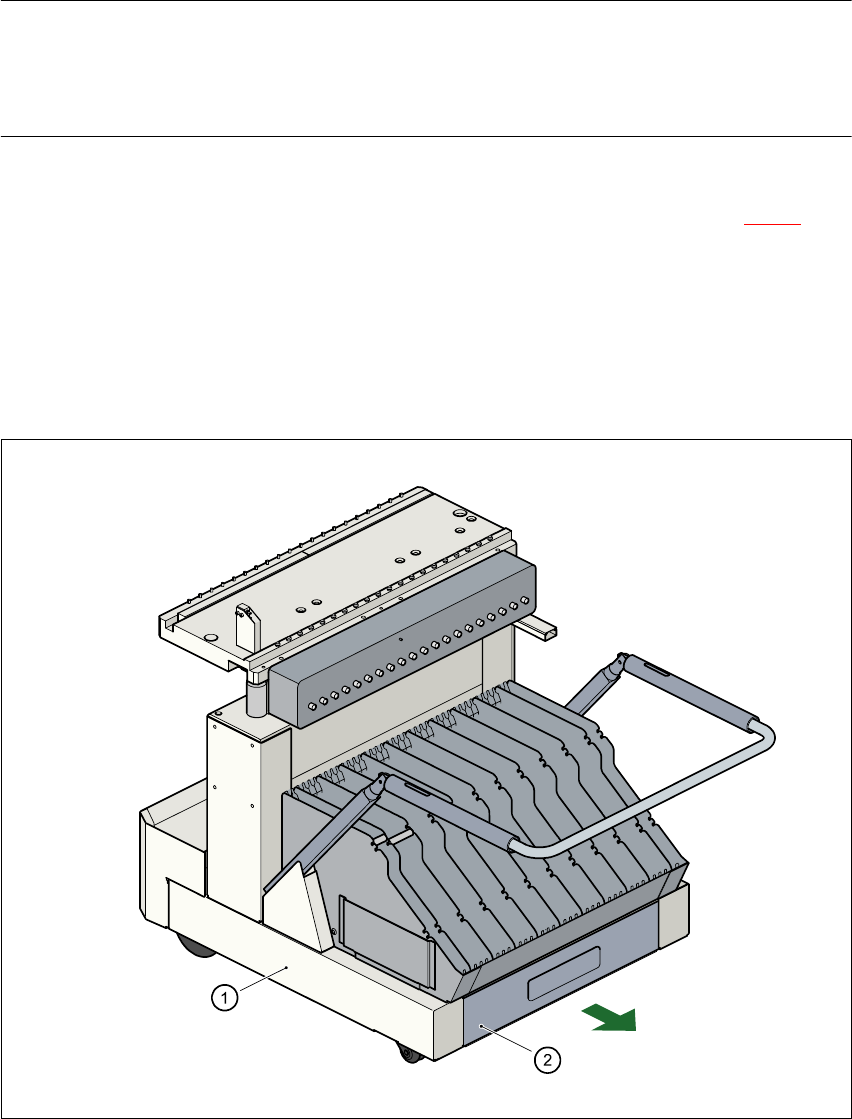

Fig. 4.5 - 3 Used tape container in the component changeover table, withdrawable
(1) Component changeover table
(2) Used tape container, withdrawable
