Samsung Pneumatic T ape Feeder Users' Manual 1-2 1.1.2. 8mm tape feeder 1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet 5: Sprocket 6: Buck Up 7: Shutter 8: Tape Guide 9: Clamp Lever 10: Manual Lever 11: Pawl L…
Overview
1-1
Chapter 1. Overview
1.1. Configuration of the Feeder
1.1.1. 8mm disposal type tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Buck Up 7: Shutter 8: Tape Guide
9: Clamp Lever 10: Manual Lever 11: Planet Lever 12: Planet Gear
13: Drain Pawl 14: Forming Gear 15: Drain Gear 16: Reel Arm Post
17: Duct
Figure 1-1. Configuration of the 8mm disposal type tape feeder
Samsung Pneumatic Tape Feeder Users' Manual
1-2
1.1.2. 8mm tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Buck Up 7: Shutter 8: Tape Guide
9: Clamp Lever 10: Manual Lever 11: Pawl Lever 12: Planet Lever
13: Planet Gear 14: Take Up Reel 15: Reel Arm Post 16: Planet Spring
Figure 1-2. Configuration of the 8mm tape feeder
Overview
1-3

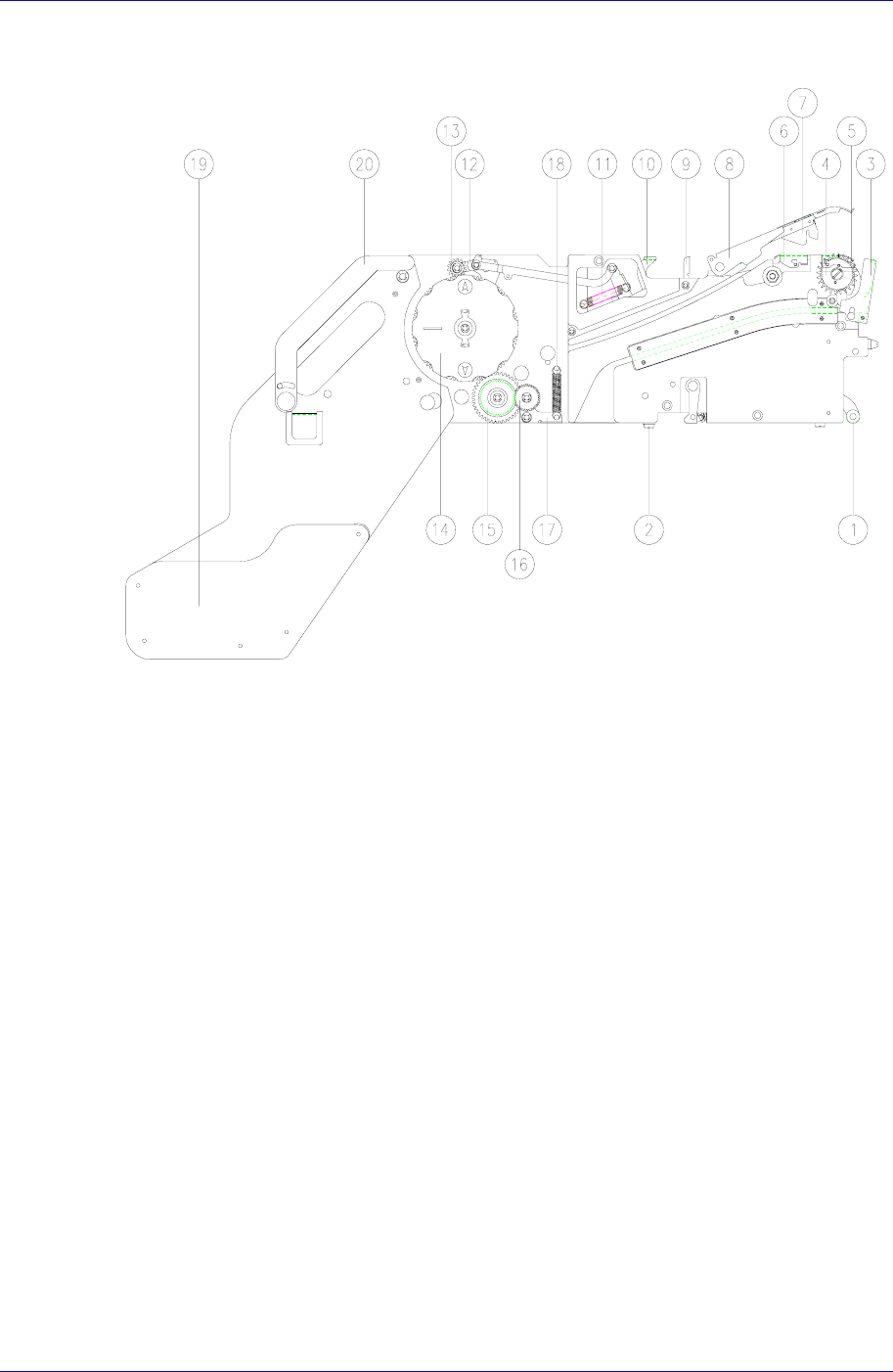

1.1.3. 8mm Non-Stop tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Buck Up 7: Shutter 8: Tape Guide
9: Clamp Arm 10: Manual Lever 11: Rewind Spring 12: Planet Lever
13: Planet Gear 14: Drain Gear 15: Idler Gear 16: Forming Gear
17: Forming
Bracket
18: Drain Pawl
Spring
19: Pocket 20: Handle
Figure 1-3. Configuration of the 8mm non-stop tape feeder
