Samsung Pneumatic Tape Feeder Users' Manual
2-16
For the 8mm tape feeder, pass the upper cover tape coming out of the tape separation slit
through groove B by keeping in contact with rollers A, B, and C.

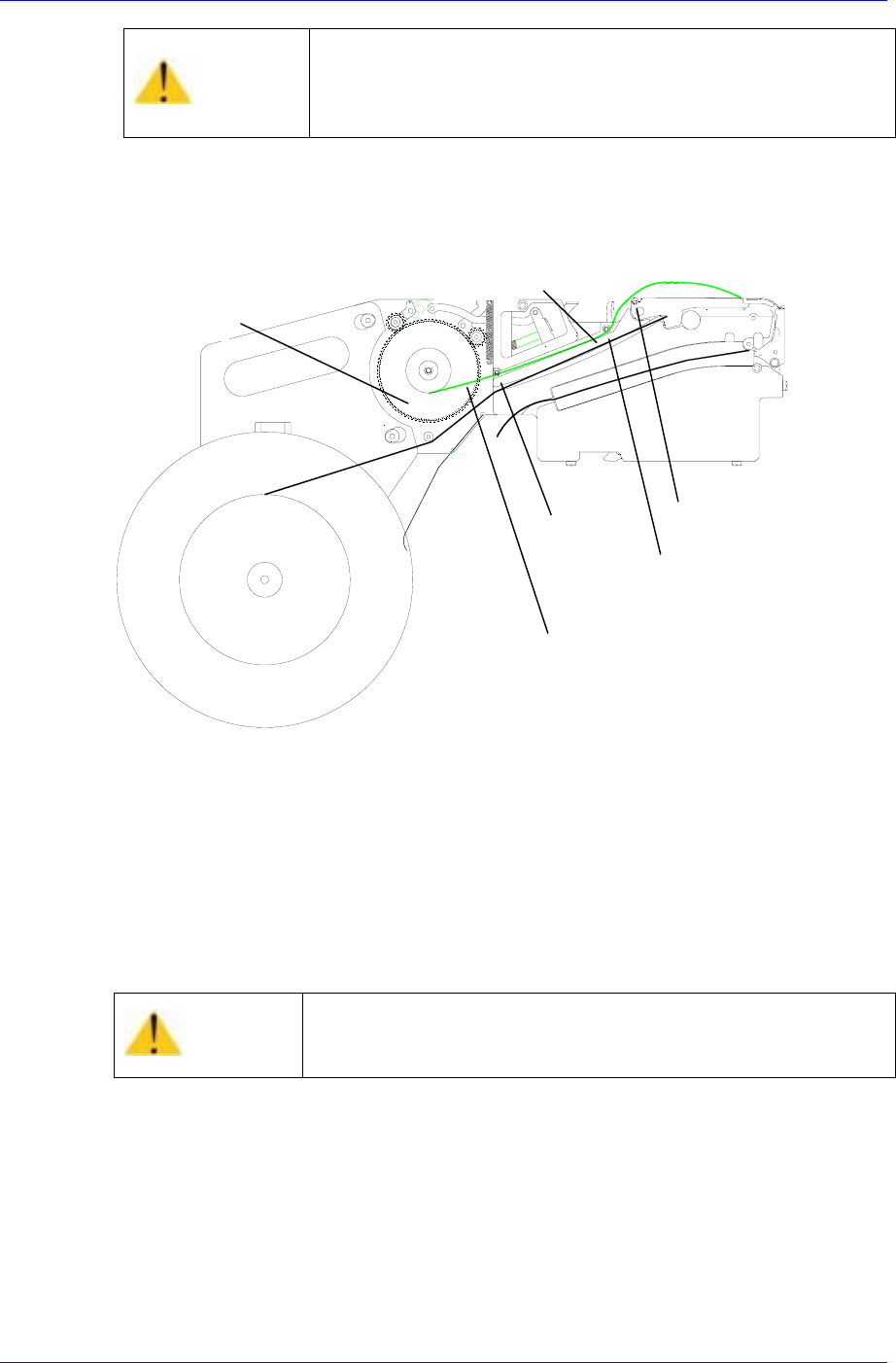

Figure 2-29. Installing the upper cover tape of the 8mm tape feeder
For the 8mm disposal type tape feeder, wind the end of the upper cover tape that has
passed through groove B on the upper of the drain gear as shown in the figure below.
Then pull the drain pawl clockwise so that the end of the upper cover tape is between the
drain gear and forming gear, Release the drain pawl to fix the end of the upper cover tape.
Caution
Since errors (no tape feed or collision with the machine
body) can occur if the tape feeder is used with the tape
guide and locking cover being incompletely locked, ensure
that the tape feeder is completely locked before using it.
Caution
When the cover tape is fixed, be careful so that fingers don’t
get stuck between the forming gear and the drain gear as
the drain pawl receives force from the spring.
Roller A
Roller B
Roller C
Upper cover tape
Take up reel
Groove B
Operation of the Tape Feeder
2-17
Figure 2-30. Installing the upper cover tape of the 8mm disposal type tape feeder (drain gear)
Figure 2-31. Installing the upper cover tape of the 8mm disposal type tape feeder (forming gear)
For the 8mm disposal type tape feeder, fix the end of the upper cover tape that has passed
through groove B and then it is between the drain gear and the forming gear. And rotate
the drain gear counterclockwise until there is no slack in the tape as shown in the figure
below.
Forming gea
r
Groove B
The upper of the drain gea
r
Drain pawl
Forming gea
r
Groove B
The upper of the drain gear
Drain pawl
Upper cover tape
Roller C
Roller B
Roller A
Upper cover tape
Roller C
Roller B
Roller A
Samsung Pneumatic Tape Feeder Users' Manual
2-18
Figure 2-32. Installing the upper cover tape of the 12-56mm tape feeder on forming gear & drain gear.
Fix the end of the upper cover tape that has passed through groove B on the take up reel
as shown in the figure below. Then rotate the take up reel counterclockwise until there is
no slack in the tape.
Figure 2-33. Fixing the tape on the take up reel
How to fix the tape on the take-up reel depends on the feeder type; winding type, disposal
type. For the disposal type feeder, pass the upper cover tape over roller A, then under
roller B and through Groove B and pass the upper cover tape under Roller D, then over
Drain gear
Forming gear
Take up reel
