Samsung Pneumatic T ape Feeder Users' Manual 2-6 Figure 2-7. Lif ting the tape guide of the 12mm -56mm Non-S top T ape Feeder Fix the position of the buck-up by moving it along the d irection of the arrow , and make…
Operation of the Tape Feeder
2-5

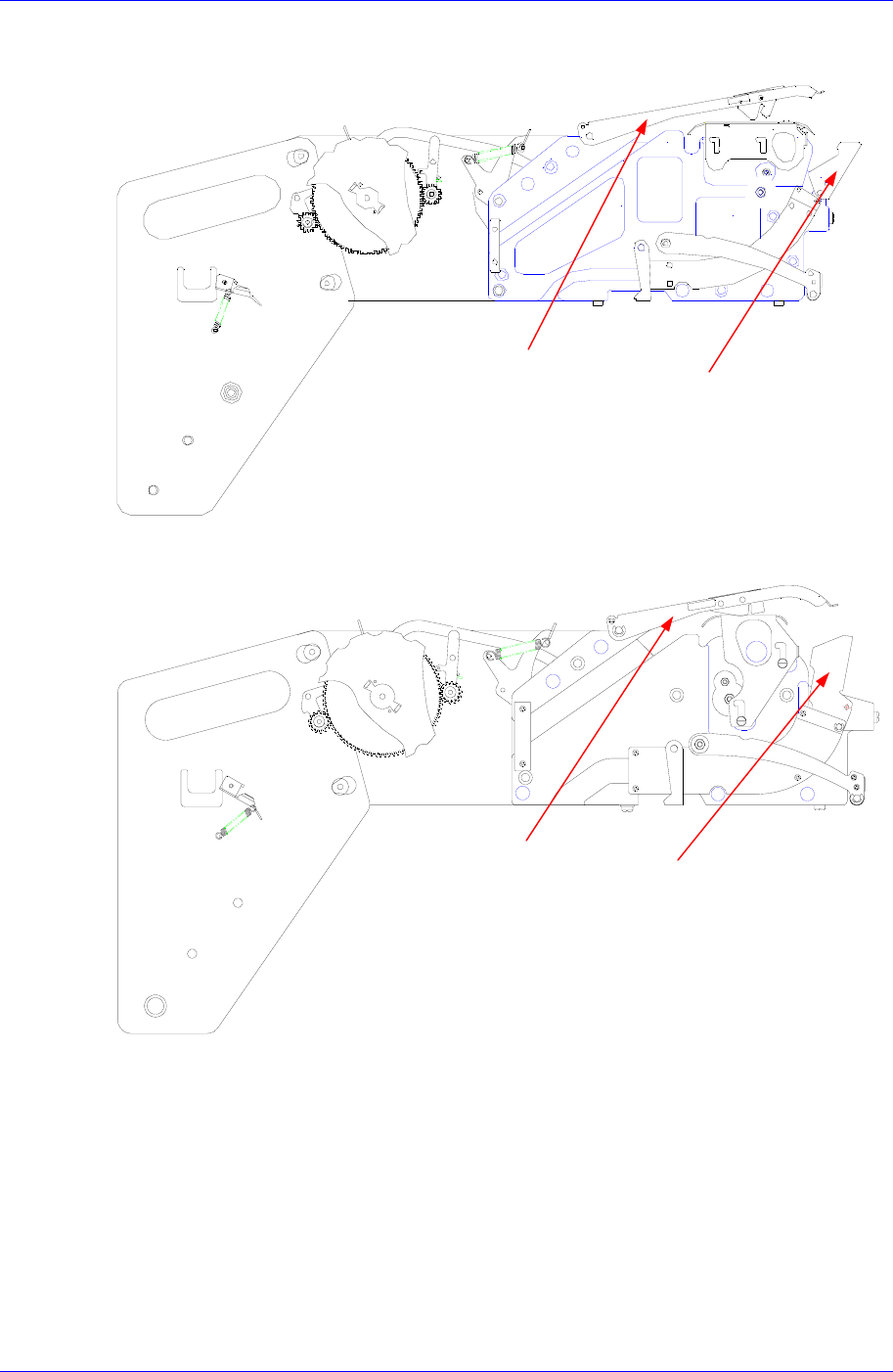

Figure 2-5. Lifting the tape guide of the 12mm tape feeder
Figure 2-6. Lifting the tape guide of the 16-56mm tape feeder
Tape Guide
Locke
r
Tape Guide
Locke
r
Samsung Pneumatic Tape Feeder Users' Manual
2-6

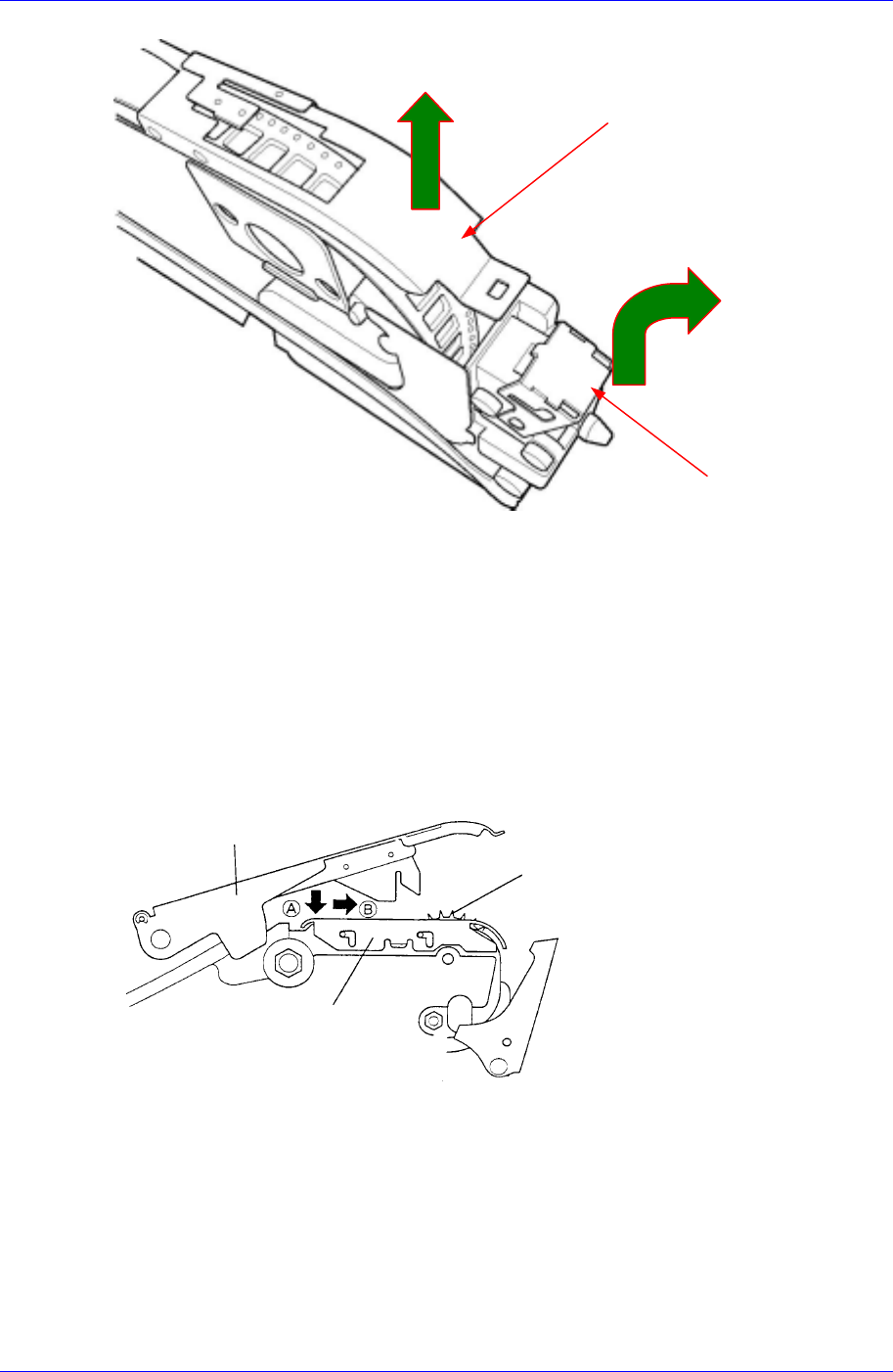

Figure 2-7. Lifting the tape guide of the 12mm-56mm Non-Stop Tape Feeder
Fix the position of the buck-up by moving it along the direction of the arrow, and
make sure that the sprocket is protruding from the buck-up.
The 8mm Emboss Tape Feeder and the 0603 disposal type tape feeder need not
be fixed, because it has no Back-up.

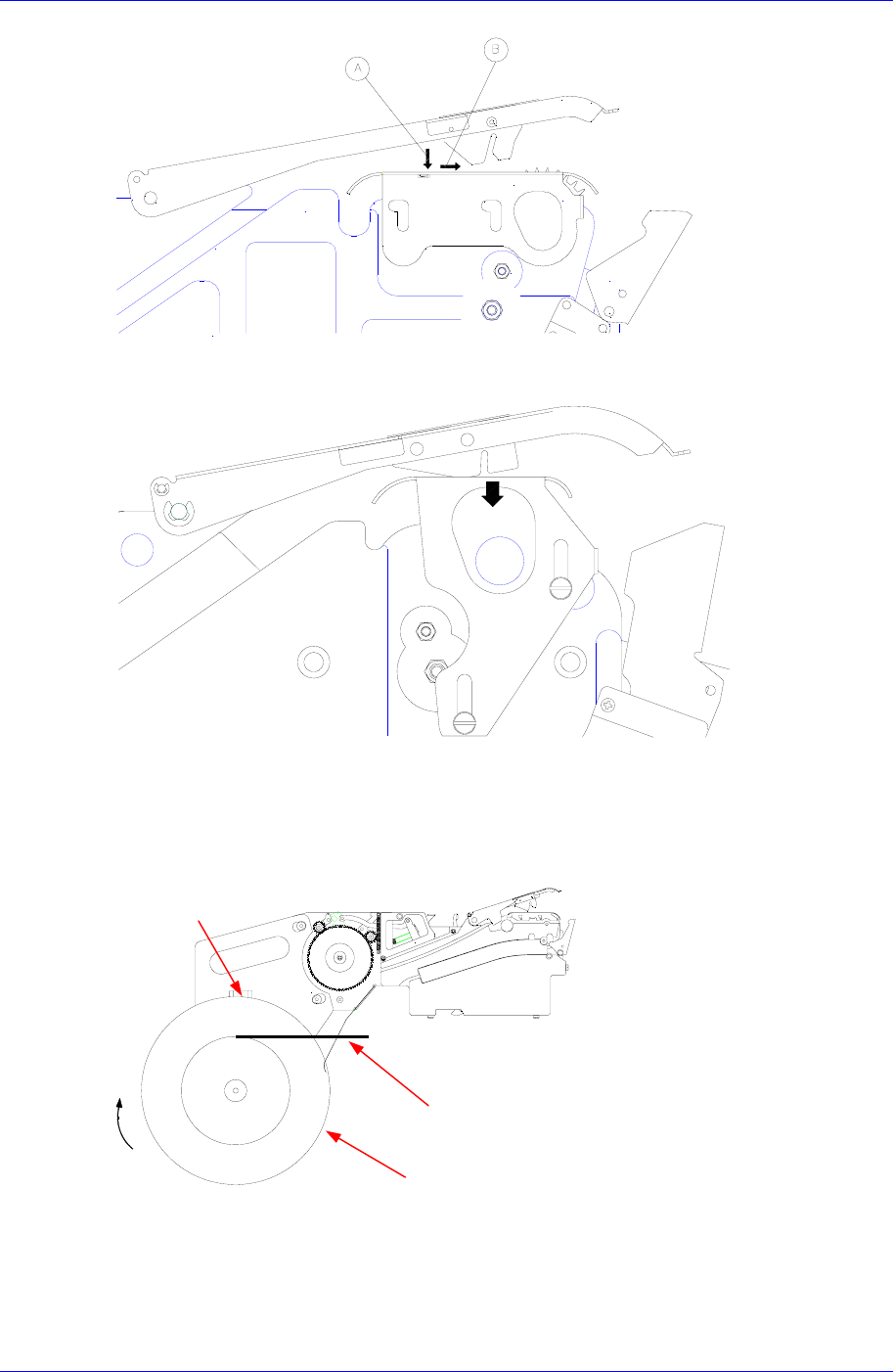

Figure 2-8. Locking the buck-up of the 8mm tape feeder
Buck-up
Sprocket
Tape Guide
Locke
r
1
Tape Guide
2
Operation of the Tape Feeder
2-7
Figure 2-9. Locking the buck-up of the 12mm tape feeder
Figure 2-10. Locking the buck-up of the 16-56mm tape feeder
Taking note of the direction for winding the tape, set the tape reel as shown in the figure
below.
Figure 2-11. Setting the tape reel of the 8mm tape feeder
Tape
Tape reel locke
r
Tape reel
Direction
of rotation
