Operation of the Tape Feeder
2-31
Figure 2-51. Rewind spring position adjustment of the 24mm-56mm tape feeder
The spring is principally hung at the normal position. The vinyl tape stripping force may
be increased or decreased by hanging it at the ( + ) or ( - ) position respectively as
required.
2.3. Installing the tape feeder on the feeder base
While pulling the clamp lever toward the back of the tape feeder, adjust the location pin
under the feeder to the large hole in the feeder base and adjust and fix the location pin on
the front of the feeder to the holes in the feeder base vertical plate.
Warning
When installing the feeder on the feeder base of the
machine, not checking whether the machine is in idle
status could cause severe injury. Be sure to check to see if
the machine operation mode is idle before installing the
feeder.
Caution
When transporting a large feeder, be sure to lift it with a
proper poster. Otherwise, injury might occur as it is heavy.
A large feeder needs to be transported by more than 2
people.
Check whether the feeder is installed on the feeder base
properly before operating the machine.
When mounting the feeder, be careful so that part of
clothing doesn’t get caught between the feeder and the
feeder base.
Check if the multi cylinder on the installation position is
down before mounting.
Samsung Pneumatic Tape Feeder Users' Manual
2-32

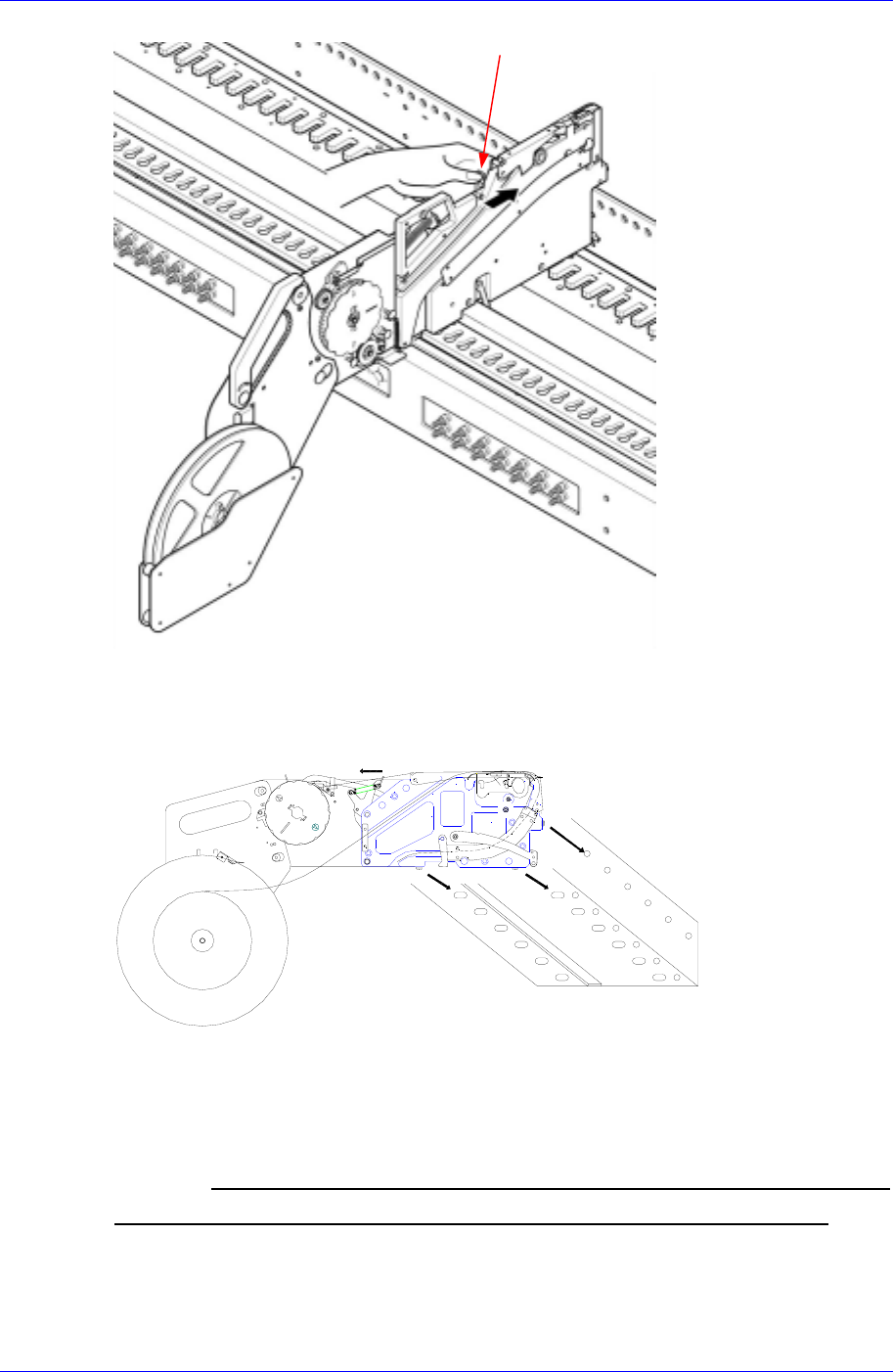

Figure 2-52. Inserting to the feeder base of the 8mm tape feeder
While releasing the clamp lever, fix the feeder on the feeder base rail.
Figure 2-53. Installing on the feeder base of the 8mm tape feeder
For the 8mm Non-Stop tape feeder, after releasing the clamp arm, press it once more
toward the equipment direction until it reaches the stopper.
Caution
In the case of the 12mm-56mm Non-Stop Tape Feeder,
since the multi-cylinder movement point is different from
the S-type pickup point, the feeder setup must be checked.
Operation of the Tape Feeder
2-33
Figure 2-54. Installing the feeder base of the 8mm Non-Stop tape feeder
Figure 2-55. Inserting/Installing on the feeder base of the 12-56mm tape feeders
The appearance of the 0603 Disposal Type Feeder is similar to other general disposal type
feeders, but its clamping method is distinctive. Therefore, press it with care before
mounting. For the 0603 disposal type tape feeder, after releasing the clamp arm,
press it once more toward the equipment direction until it reaches the stopper.
Clamp arm
