Overview 1-1 Chapter 1. Overview 1.1. Configuration of the Feeder 1.1.1. 8mm disposal type tape feeder 1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet 5: Sprocket 6: Buck Up 7: Shutter 8: Tape Guide 9: Clamp Lever 1…
Samsung Pneumatic Tape Feeder Users' Manual
iv
tape feeder.......................................................................................2-34
Figure 3-1. Lubrication and removing foreign matter on the shutter area ......... 3-2
Figure 3-2. Lubrication and removing foreign matter on the ratchet area ......... 3-2
Figure 3-3. Lubrication and removing foreign matter on the take up reel area..3-3
Figure 3-4. Removing foreign matter on the sprocket area............................... 3-3
Figure 3-5. Removing foreign matter on the sprocket and locker areas of the
0603 disposal type tape feeder.......................................................... 3-4
Figure 3-6. Adjusting the position error of the pickup point ............................... 3-6
List of Tables
Table 1-1. Types of tape feeder and pitch .......................................................1-10
Table 1-2. Table for pitch setting (unit: mm).....................................................1-13
Overview
1-1
Chapter 1. Overview
1.1. Configuration of the Feeder
1.1.1. 8mm disposal type tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Buck Up 7: Shutter 8: Tape Guide
9: Clamp Lever 10: Manual Lever 11: Planet Lever 12: Planet Gear
13: Drain Pawl 14: Forming Gear 15: Drain Gear 16: Reel Arm Post
17: Duct

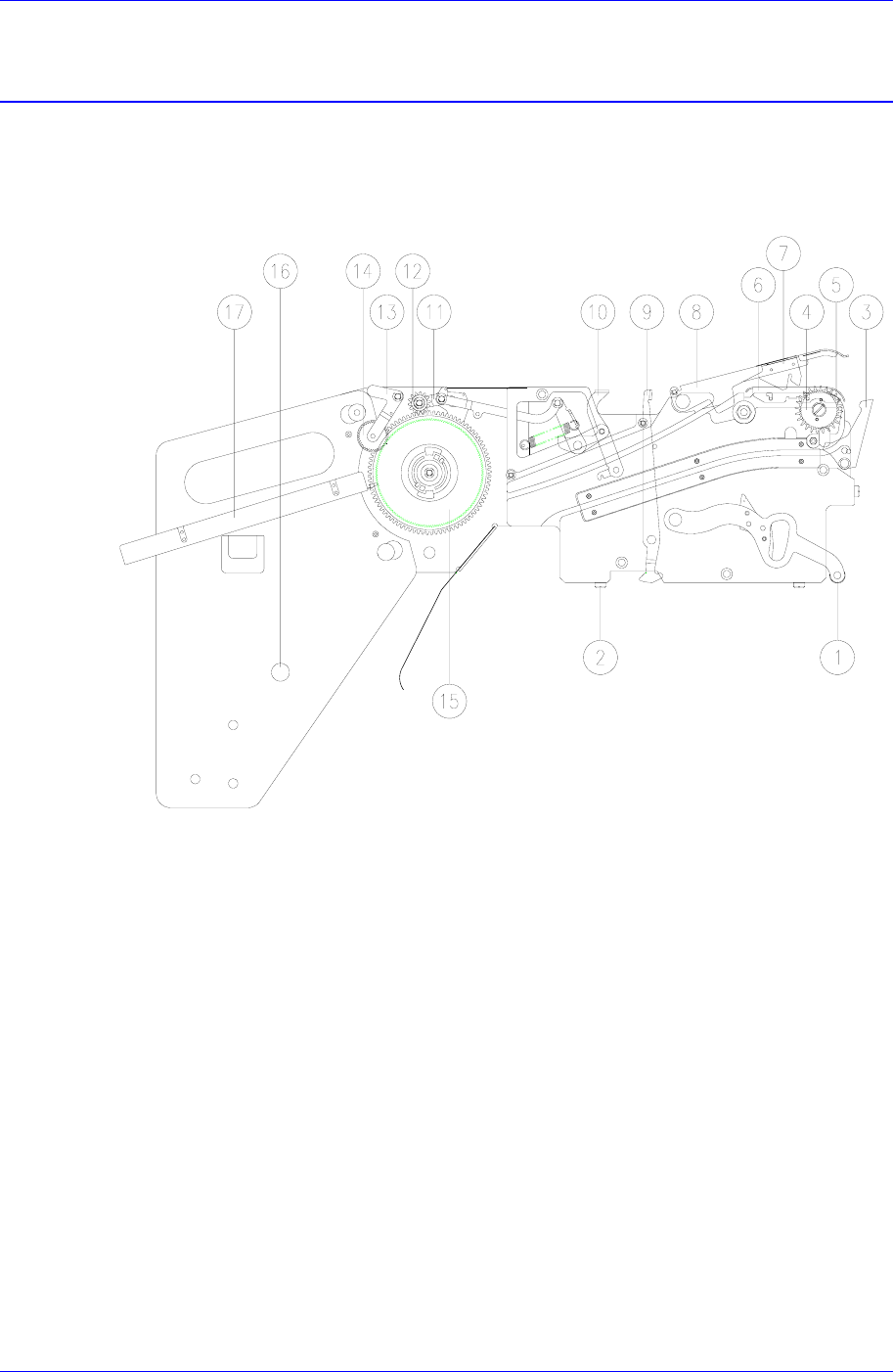

Figure 1-1. Configuration of the 8mm disposal type tape feeder
Samsung Pneumatic Tape Feeder Users' Manual
1-2
1.1.2. 8mm tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Buck Up 7: Shutter 8: Tape Guide
9: Clamp Lever 10: Manual Lever 11: Pawl Lever 12: Planet Lever
13: Planet Gear 14: Take Up Reel 15: Reel Arm Post 16: Planet Spring

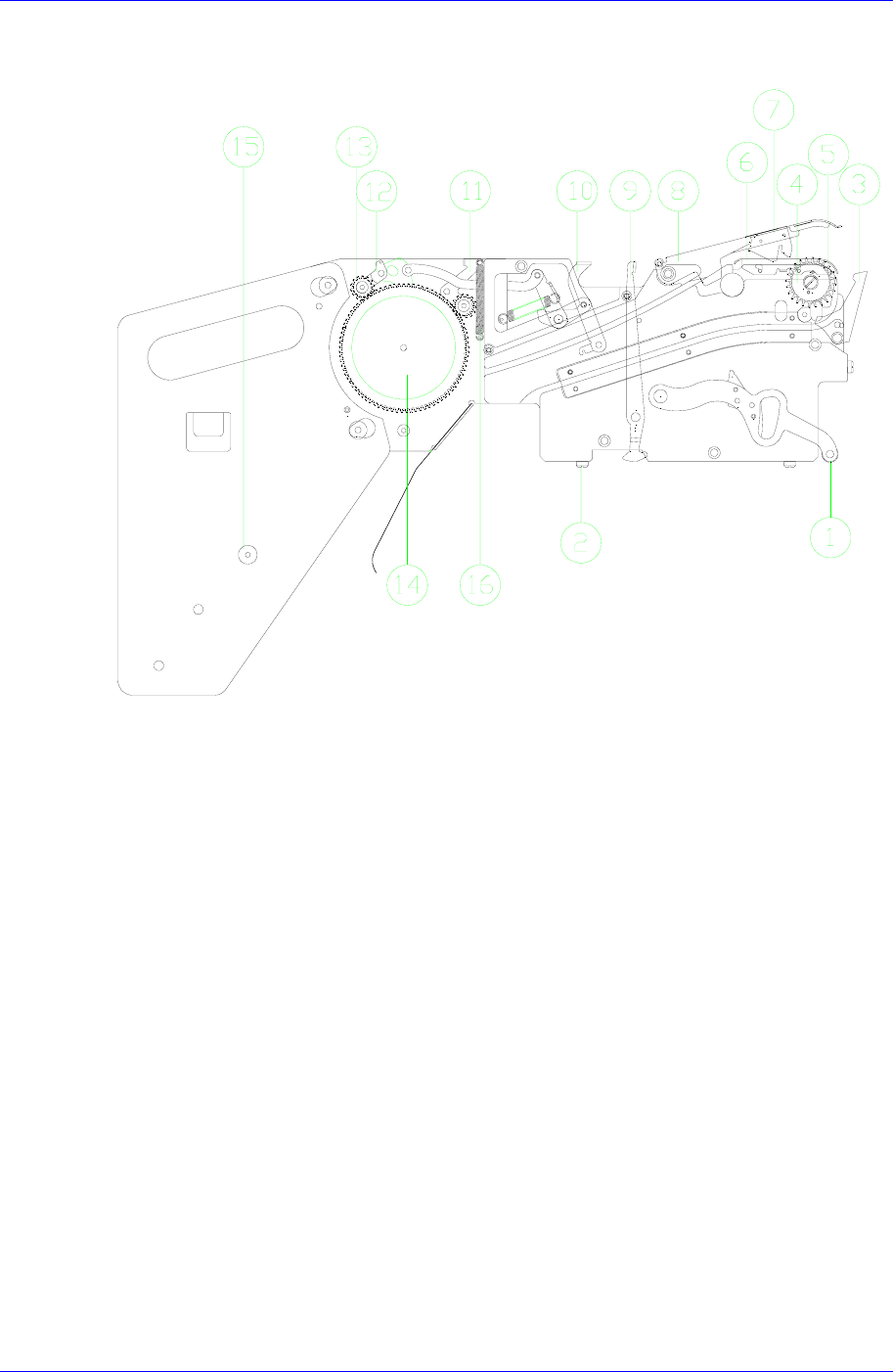

Figure 1-2. Configuration of the 8mm tape feeder
