Operation of the T ape Feeder 2-5 Figur e 2-5. Lifting the ta pe guide of the 12mm tape feeder Figur e 2-6. Lifting the ta pe guide of the 16-56mm tape feed er T ape Guide Locke r T ape Guide Locke r
Samsung Pneumatic Tape Feeder Users' Manual
2-4

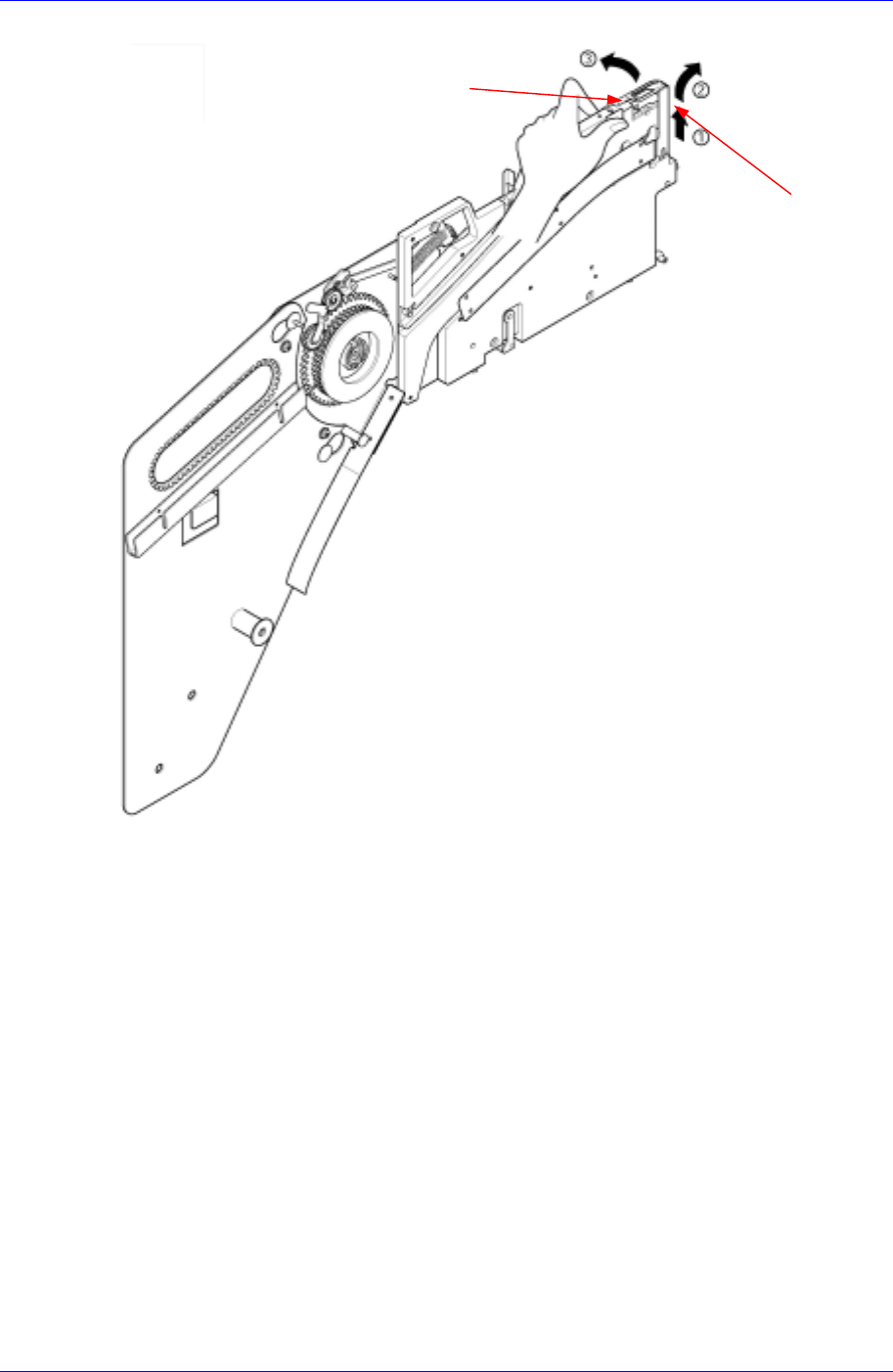

Figure 2-4. Lifting the tape guide of the 0603 disposal type tape feeder
Tape Guide
Locke
r
Operation of the Tape Feeder
2-5
Figure 2-5. Lifting the tape guide of the 12mm tape feeder
Figure 2-6. Lifting the tape guide of the 16-56mm tape feeder
Tape Guide
Locke
r
Tape Guide
Locke
r
Samsung Pneumatic Tape Feeder Users' Manual
2-6
Figure 2-7. Lifting the tape guide of the 12mm-56mm Non-Stop Tape Feeder
Fix the position of the buck-up by moving it along the direction of the arrow, and
make sure that the sprocket is protruding from the buck-up.
The 8mm Emboss Tape Feeder and the 0603 disposal type tape feeder need not
be fixed, because it has no Back-up.
Figure 2-8. Locking the buck-up of the 8mm tape feeder
Buck-up
Sprocket
Tape Guide
Locke
r
1
Tape Guide
2
