Operation of the T ape Feeder 2-21 Figur e 2-37. Installing the upper cover tape of the 8mm non-stop tape feeder ( disposal type) Roller A Roller B Groove B Roller D Roller E Forming gear Idler gea r
Samsung Pneumatic Tape Feeder Users' Manual
2-20

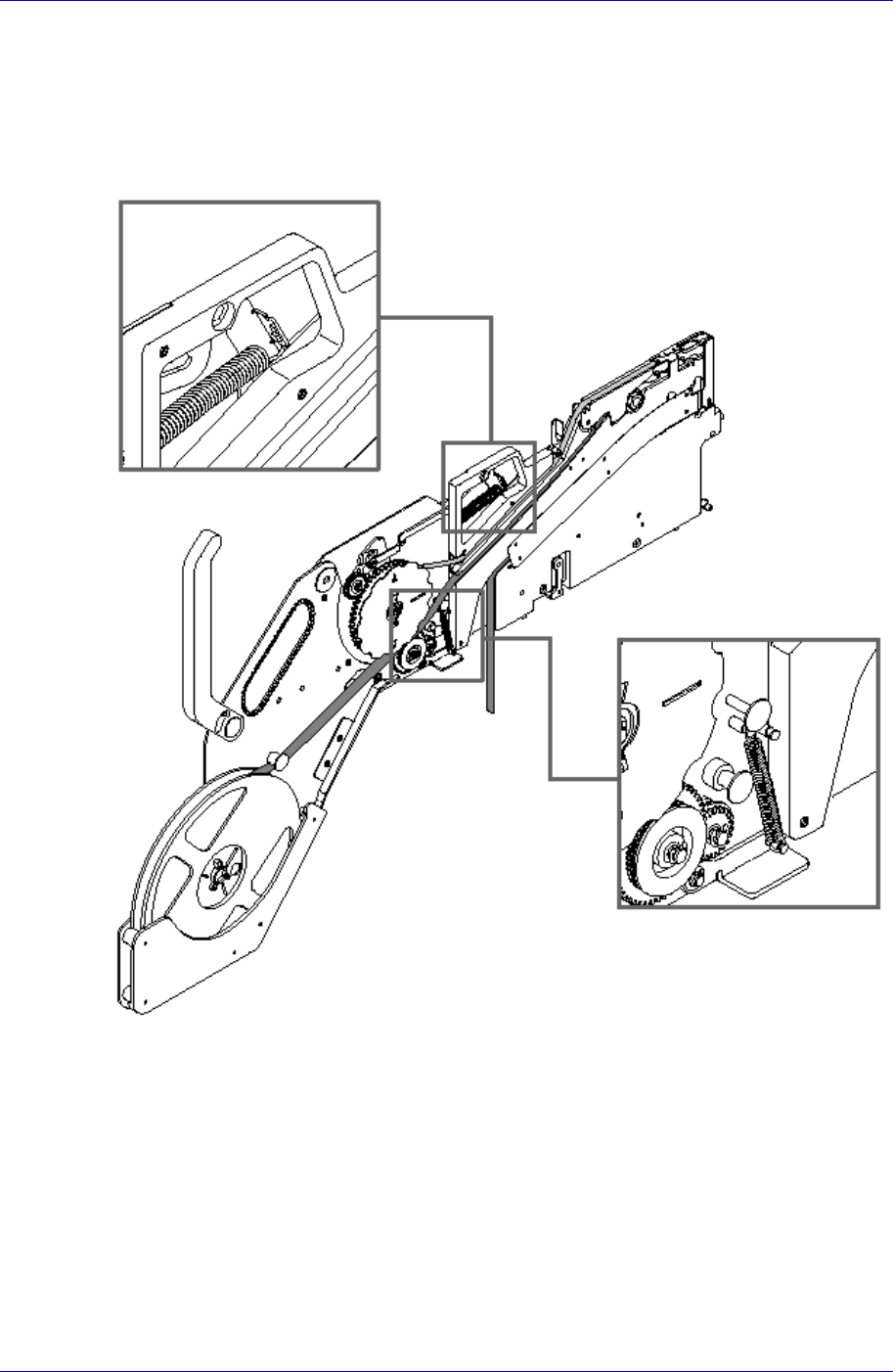

Figure 2-36. How to set the upper cover tape on the roller and between gears (12/16mm Non-Stop
Tape Feeder)
Operation of the Tape Feeder
2-21

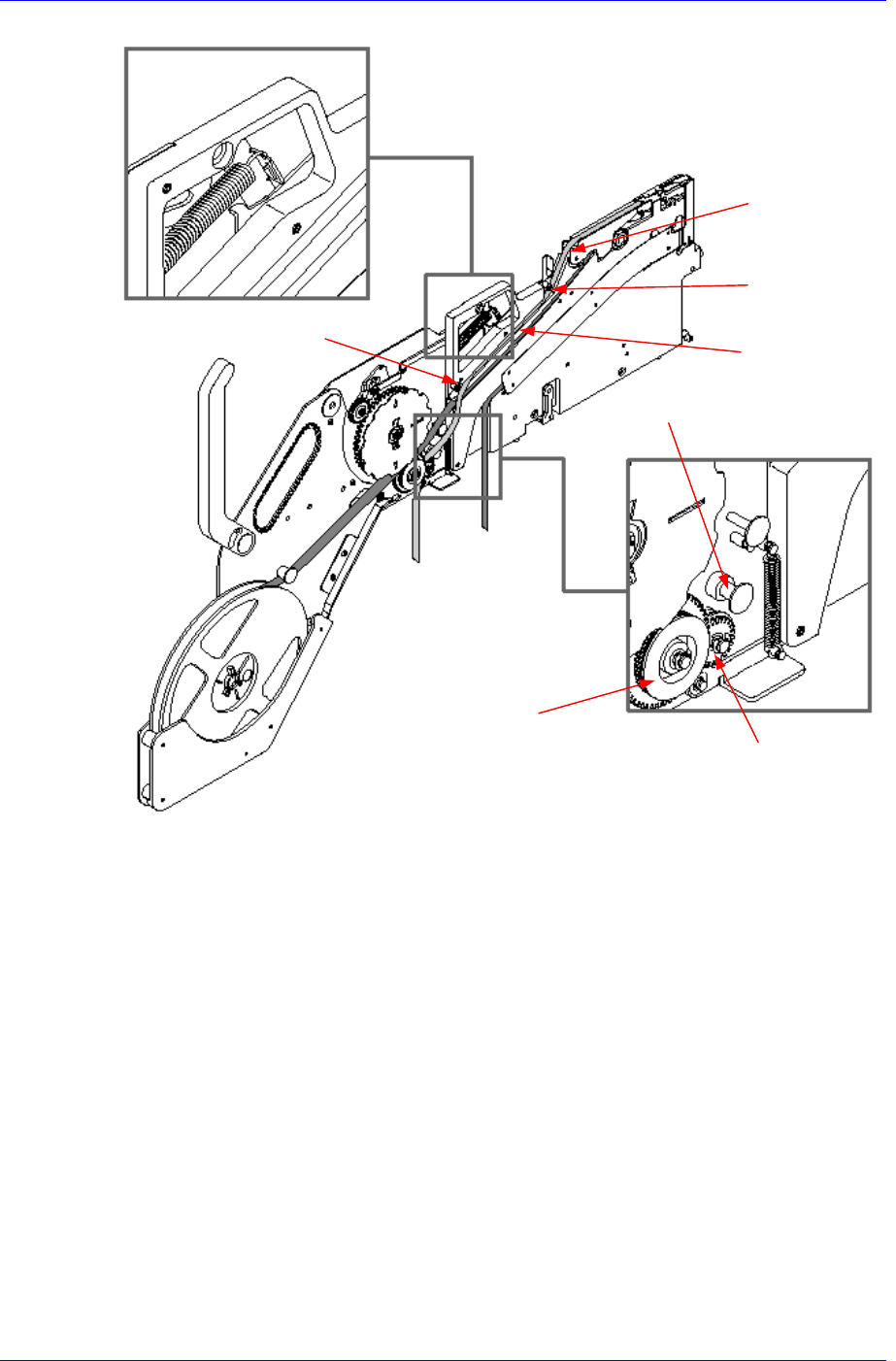

Figure 2-37. Installing the upper cover tape of the 8mm non-stop tape feeder (disposal type)
Roller A
Roller B
Groove B
Roller D
Roller E
Forming gear
Idler gea
r
Samsung Pneumatic Tape Feeder Users' Manual
2-22
For the winding type, use the same mounting method as the top cover mounting method
for the winding type tape feeder. (Please refer to Figure 2-29.)
However, the winding type is applied to the tape of special specification for NST-08P4
and NST08E-4P.
Figure 2-38. Installing the upper cover tape of the 8mm Non-Stop tape feeder (winding type)
