Samsung Pneumatic T ape Feeder Users' Manual 1-6 1.1.6. 12mm-56mm tape feeder 1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet 5: Sprocket 6: Buck Up 7: Shutter 8: Planet Spring 9: T ape Guide 10: Clamp Lever 1 …
Overview
1-5
1.1.5. 0603 disposal-Type tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Shutter 7: Tape Guide 8: Clamp Arm
9: Manual Lever 10: Rewind Spring 11: Planet Lever 12: Planet Gear
13: Drain Pawl 14: Forming Gear 15: Drain Gear 16: Reel Arm Post
17: Duct
Figure 1-5. Configuration of the 0603 disposal type tape feeder
The color of the upper part of the Clamp Arm of the 0603 Disposal Type Feeder is green.
Memo
Samsung Pneumatic Tape Feeder Users' Manual
1-6

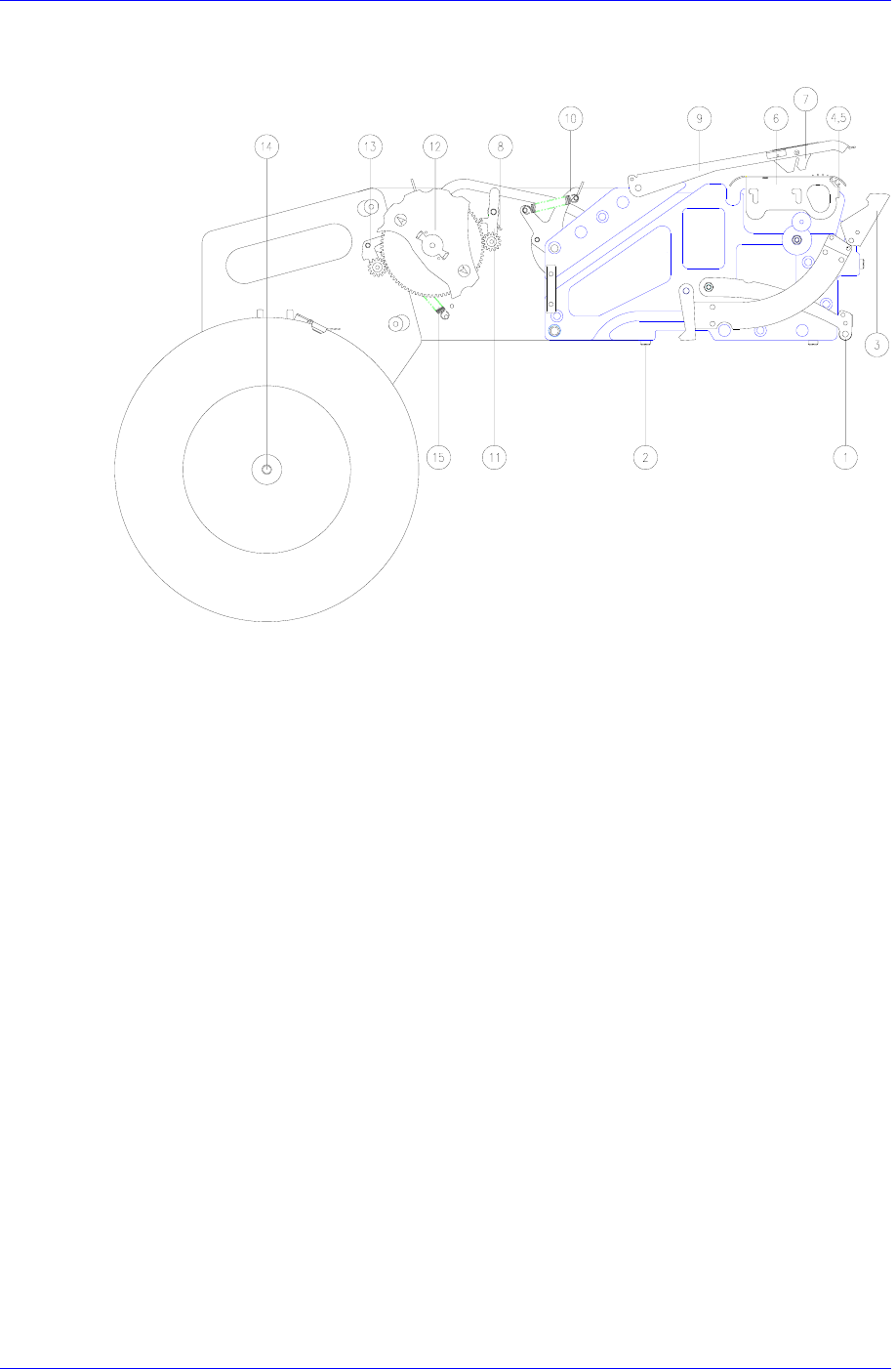

1.1.6. 12mm-56mm tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Buck Up 7: Shutter 8: Planet Spring
9: Tape Guide 10: Clamp Lever 11: Pawl Lever 12: Take Up Reel
13: Planet Lever 14: Reel Arm Post 15: Rewind Spring
Figure 1-6. Configuration of the 12-56mm tape feeder
Overview
1-7
1.1.7. 12mm-16mm Non-Stop tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Tape Support 7: Shutter 8: Planet Gear
9: Tape Guide 10: Clamp Lever 11: Pawl Lever 12: Take Up Reel
13: Planet Lever 14: Reel Arm Post 15: Rewind Spring 16: Drain Gear
17: Forming Gear 18: Forming Bracket 19: Drain Pawl Spring 20: Stopper
21: Reel Arm Plate
Figure 1-7. Configuration of the 12-16mmnon-stop tape feeder
20
13
8
12
11
14
15
16
17
18
19
9
6
1
3
7
4
5
2
10
21
