Samsung Pneumatic T ape Feeder Users' Manual 2-28 Figur e 2-46. Pitch setup for the 12mm Non-S top T ape Feeder 2.2.4. Adjusting the position of t he 8mm Non-S top tape feeder (NST -08P4, NST08E-4P) spring The NST -…
Operation of the Tape Feeder
2-27
Figure 2-44. Setting the pitch for the 16mm tape feeder
Figure 2-45. Setting the pitch for the 24mm-56mm tape feeder
20mm pitch 16mm pitch 12mm pitch 8mm pitch
12mm pitch
8mm pitch 4mm pitch
Samsung Pneumatic Tape Feeder Users' Manual
2-28
Figure 2-46. Pitch setup for the 12mm Non-Stop Tape Feeder
2.2.4. Adjusting the position of the 8mm Non-Stop tape feeder (NST-08P4,
NST08E-4P) spring
The NST-08P4 Non-Stop Tape Feeder and the NST08E-4P Non-Stop Emboss Tape
Feeder use disposal type or winding type tape depending on the tape specification. The
position of the rewind spring and the drain pawl spring shall be adjusted accordingly.
However, using both the disposal type and winding type by adjusting the position of the
spring is applied to NST-08 only.

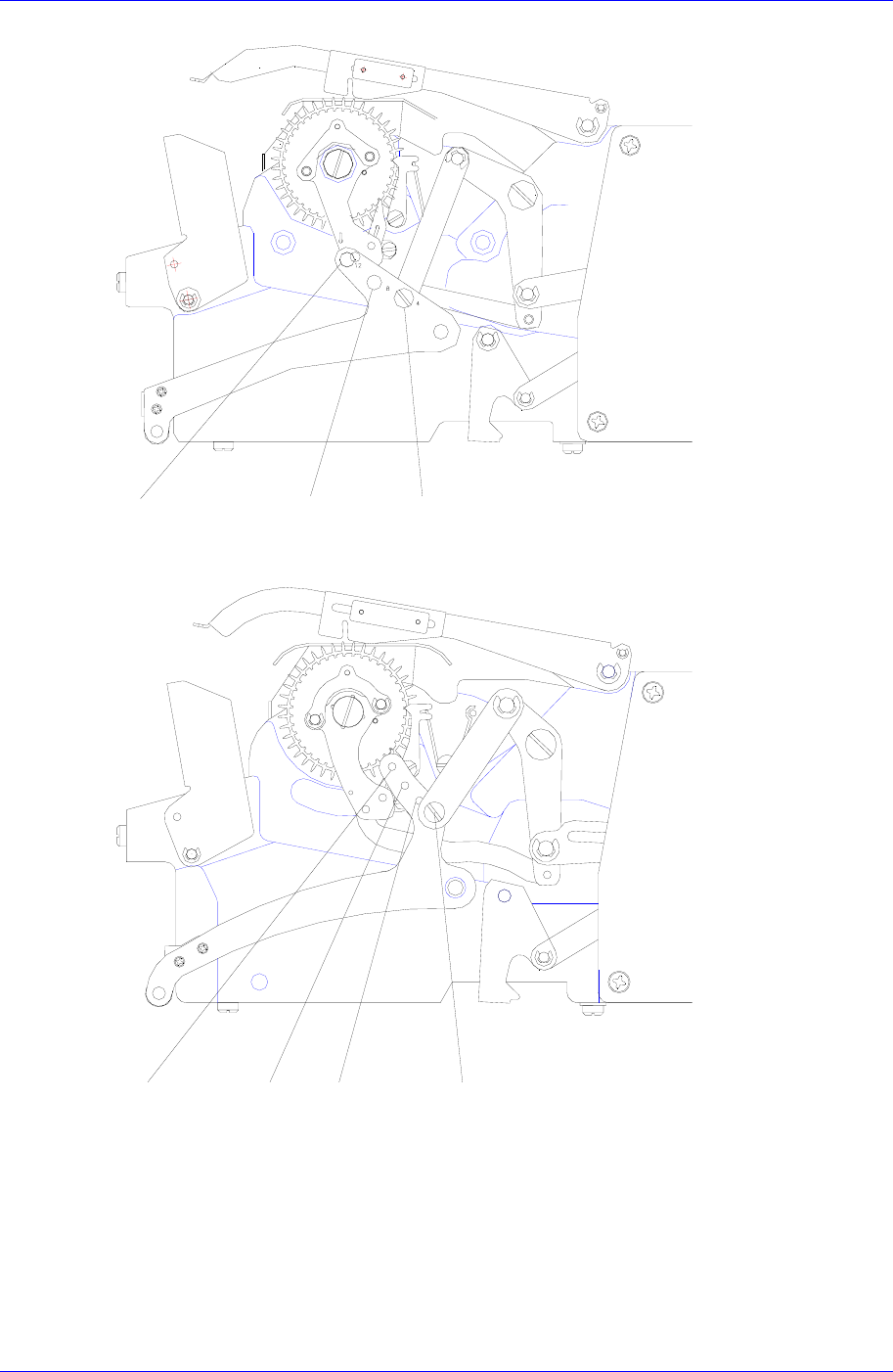

Figure 2-47. Adjusting the positions of the rewind spring and the drain pawl spring of the NST-08
Non-Stop tape feeder (disposal type)
Drain pawl spring
Rewind spring
Operation of the Tape Feeder
2-29

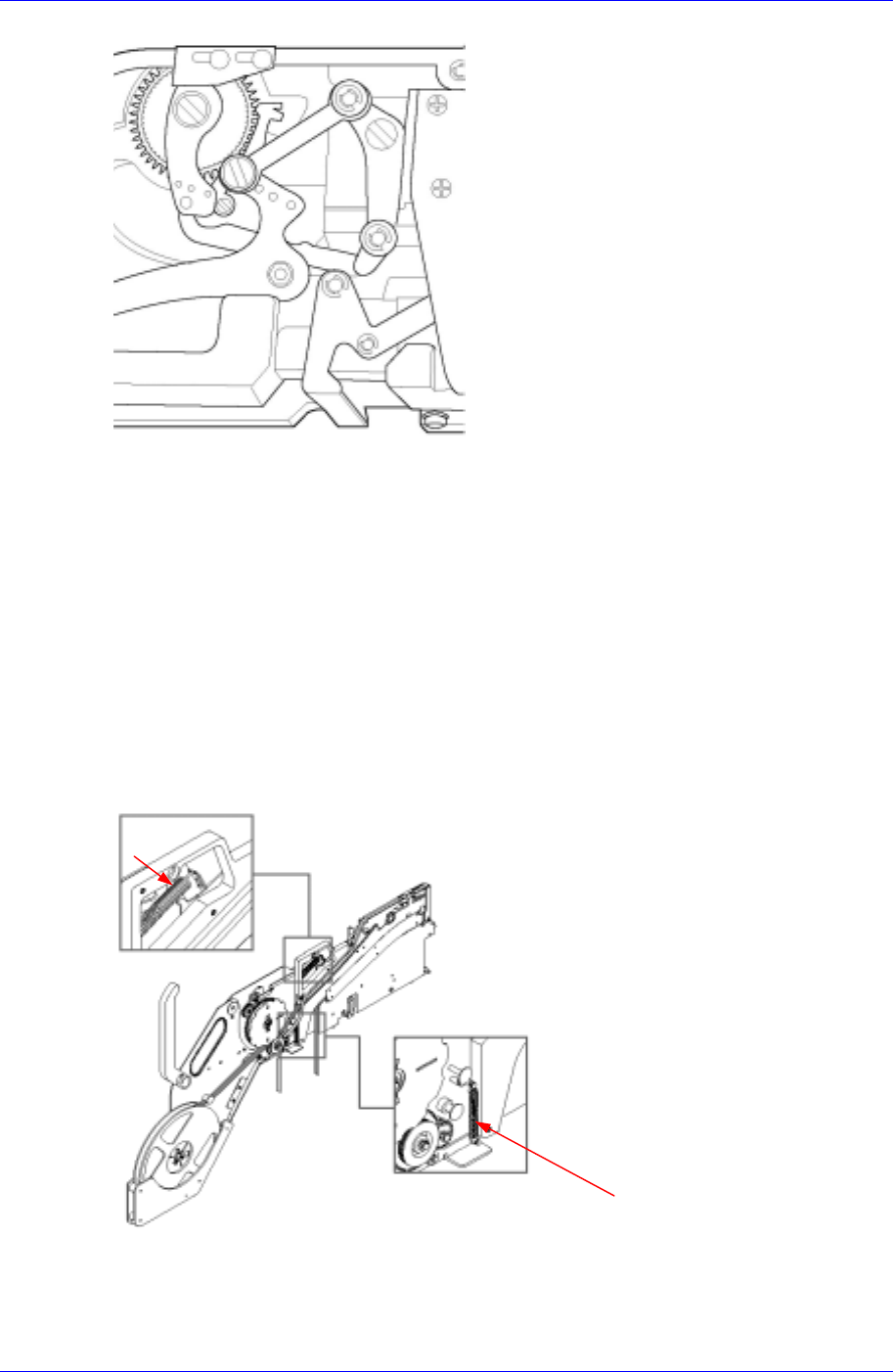

Figure 2-48. Adjusting the positions of the rewind spring and the drain pawl spring of the NST-08
Non-Stop tape feeder (winding type)
2.2.5. Adjusting the location of 12~56mmtape feeder Rewind Spring
Adjust the position of the rewind spring according to the condition of component supply.
12mm 16mm 24-44mm 56mm
Figure 2-49. Adjusting the location of 12~56mmtape feeder Rewind Spring
The normal position of locking up the spring as a base, the force of removing the vinyl
can be increased by moving the position to (+) direction and it can be decreased by
moving it to (-) direction.
If the height of a component is high, hook the spring on the pin in the (+) direction to
increase the force needed to strip off the vinyl sheet. If the height of a component is low
Normal
(
-
)
Normal
(
+
)
(
-
)
Normal
(
-
)
(
+
)
(
-
)
Normal
