Samsung Pneumatic Tape Feeder Users' Manual

2-26

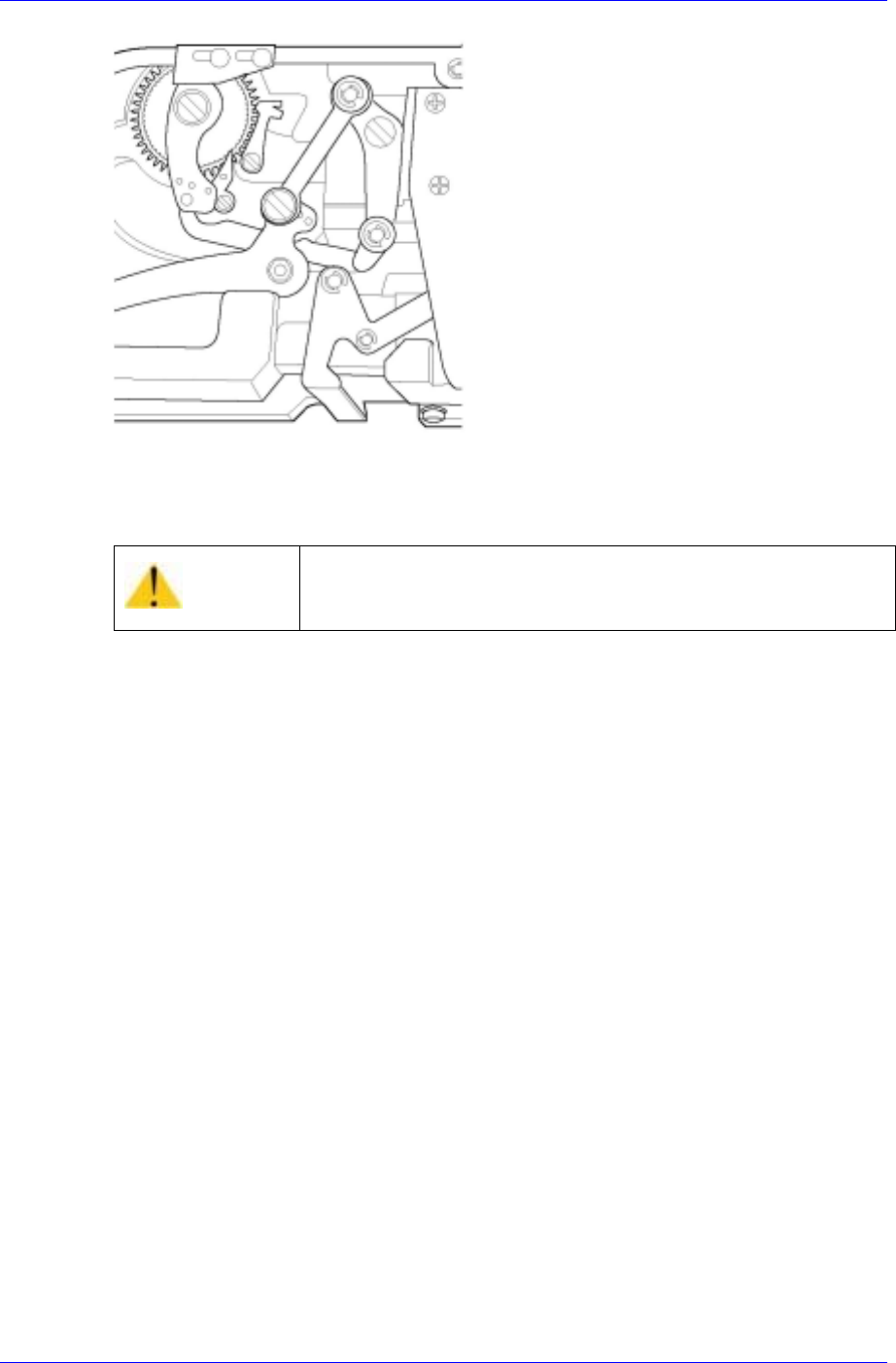

Figure 2-43. Pitch setup for the 12/16mm Non-Stop Tape Feeder

2.2.3. Changing the pitch of the 16-56mm tape feeder

For tape feeders over 16mm, set the pitch to the one indicated on the pusher lever (1

place).

For the 16mm tape feeder, the pitch can be set to 4mm, 8mm, or 12mm.

For the 24mm tape feeder, the pitch can be set to 8mm, 12mm, 16mm, or 20mm.

For the 32mm tape feeder, the pitch can be set to 8mm, 12mm, 16mm, or 20mm(If the

user wants the transport pitch to be 24mm, 32mm, or 40mm, set the pitch to 12mm,

16mm, or 20mm respectively and rotate the cylinder of the component placer twice).

For the NST32mm-L tape feeder, the pitch can be set to 8mm, 12mm, 16mm, or 20mm.

For the NST32mm-S tape feeder, the pitch can be set to 12mm or 16mm.

For the 44mm-L tape feeder, the pitch can be set to 8mm, 12mm, 16mm, or 20mm. For

the 44mm-S tape feeder, the pitch can be set to 16mm or 20mm. (If the user wants the

transport pitch to be 24mm, 32mm, or 40mm, set the pitch to 12mm, 16mm, or 20mm

respectively and rotate the cylinder of the component placer twice). The 56mm tape

feeder uses the same method as that of the 32mm tape feeder.

Caution

Pitch change must be done in a clean place using proper

tools. Also, pay attention to safety and try not to damage or

lose components.

Operation of the Tape Feeder

2-27

Figure 2-44. Setting the pitch for the 16mm tape feeder

Figure 2-45. Setting the pitch for the 24mm-56mm tape feeder

20mm pitch 16mm pitch 12mm pitch 8mm pitch

12mm pitch

8mm pitch 4mm pitch

Samsung Pneumatic Tape Feeder Users' Manual

2-28

Figure 2-46. Pitch setup for the 12mm Non-Stop Tape Feeder

2.2.4. Adjusting the position of the 8mm Non-Stop tape feeder (NST-08P4,

NST08E-4P) spring

The NST-08P4 Non-Stop Tape Feeder and the NST08E-4P Non-Stop Emboss Tape

Feeder use disposal type or winding type tape depending on the tape specification. The

position of the rewind spring and the drain pawl spring shall be adjusted accordingly.

However, using both the disposal type and winding type by adjusting the position of the

spring is applied to NST-08 only.

Figure 2-47. Adjusting the positions of the rewind spring and the drain pawl spring of the NST-08

Non-Stop tape feeder (disposal type)

Drain pawl spring

Rewind spring
