Samsung Pneumatic T ape Feeder Users' Manual 1-12 1.2.3. Applicable components Square chips, MELF , TR, SOP , PLCC, odd-type components ( For the 8mm Embossing T ype T ape Feeder , the maximum length of T 2 is 2.5 m…
Overview
1-11

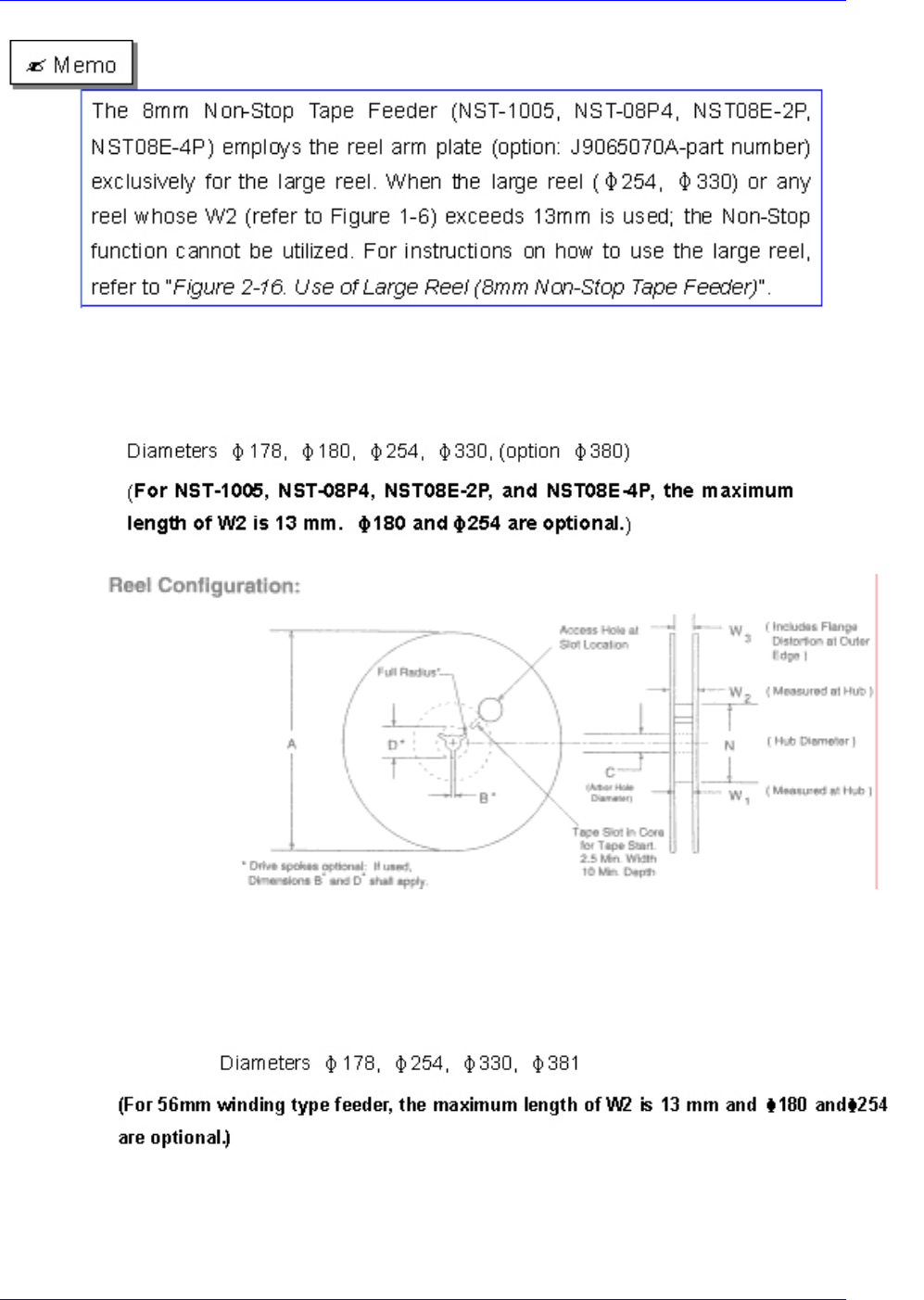

1.2.2. Applicable reels
1.2.2.1. The applicable reel to 8mm tape feeder
Figure 1-10. Reel size
1.2.2.2. The applicable reel to the 16mm~56mm tape feeders
Figure 1-11. Reel size for 16mm~56mm tape feeders
Samsung Pneumatic Tape Feeder Users' Manual
1-12
1.2.3. Applicable components
Square chips, MELF, TR, SOP, PLCC, odd-type components
(For the 8mm Embossing Type Tape Feeder, the maximum length of T
2
is 2.5 mm.
for NST08E-4P, it is 3.5 mm. And for NST08E-4P, the maximum length of B1 is 4.35
mm. for NST08E-4P, it is 4.0 mm.)

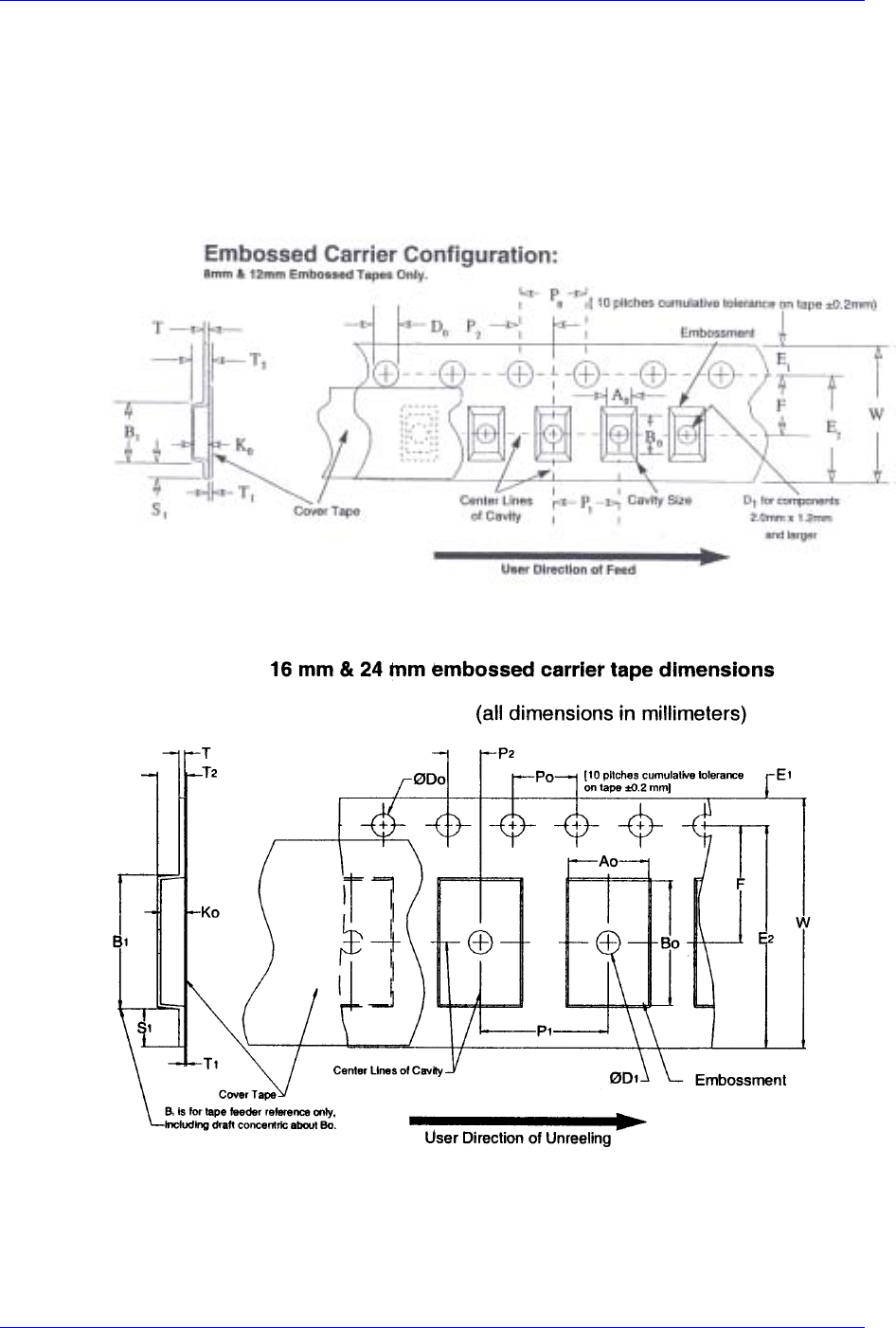

Figure 1-12. Embossed Carrier Tape (8/12mm)
Figure 1-13. Embossed Carrier Tape (16/24mm)
Overview
1-13

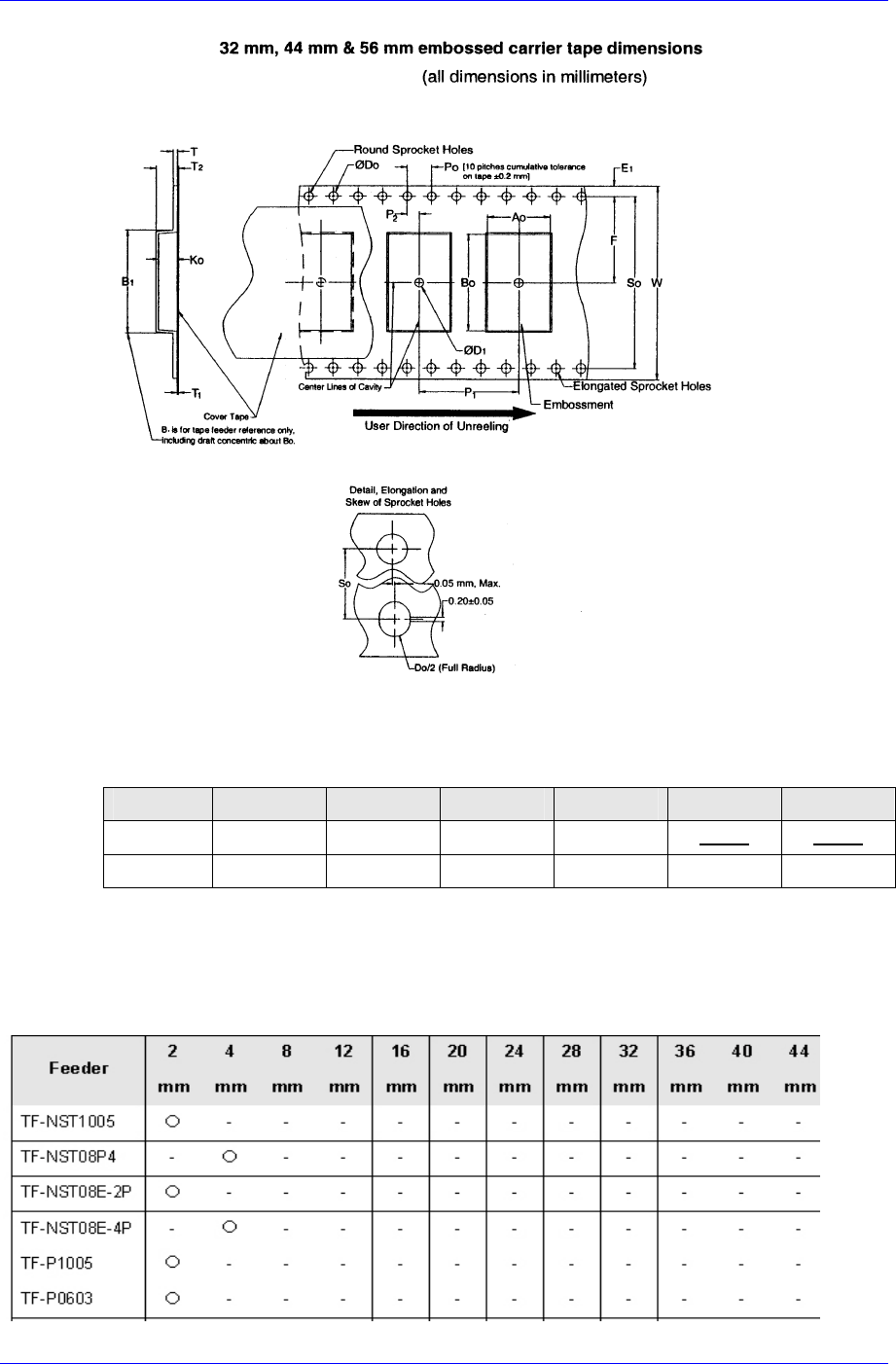

Figure 1-14. Embossed Carrier Tape (32mm-56mm)
Dimensions for EIA-481-1A, EIA-481-2-A standard
12mm 16mm 24mm 32mm 44mm 56mm
T2 Max. 6.5 8.0 12.0 12.0
*16.0
*20.0
B1 Max. 8.2 12.1 20.1 23.0 35.0 46.0
(For NST12~56E-(L/S) Tape Feeder, the maximum length of T2.is 12.5mm.)
1.2.4. Table for pitch setting
Table 1-2. Table for pitch setting (unit: mm)
