Samsung Pneumatic Tape Feeder Users' Manual
2-32
Figure 2-52. Inserting to the feeder base of the 8mm tape feeder
While releasing the clamp lever, fix the feeder on the feeder base rail.
Figure 2-53. Installing on the feeder base of the 8mm tape feeder
For the 8mm Non-Stop tape feeder, after releasing the clamp arm, press it once more
toward the equipment direction until it reaches the stopper.
Caution
In the case of the 12mm-56mm Non-Stop Tape Feeder,
since the multi-cylinder movement point is different from
the S-type pickup point, the feeder setup must be checked.
Operation of the Tape Feeder
2-33

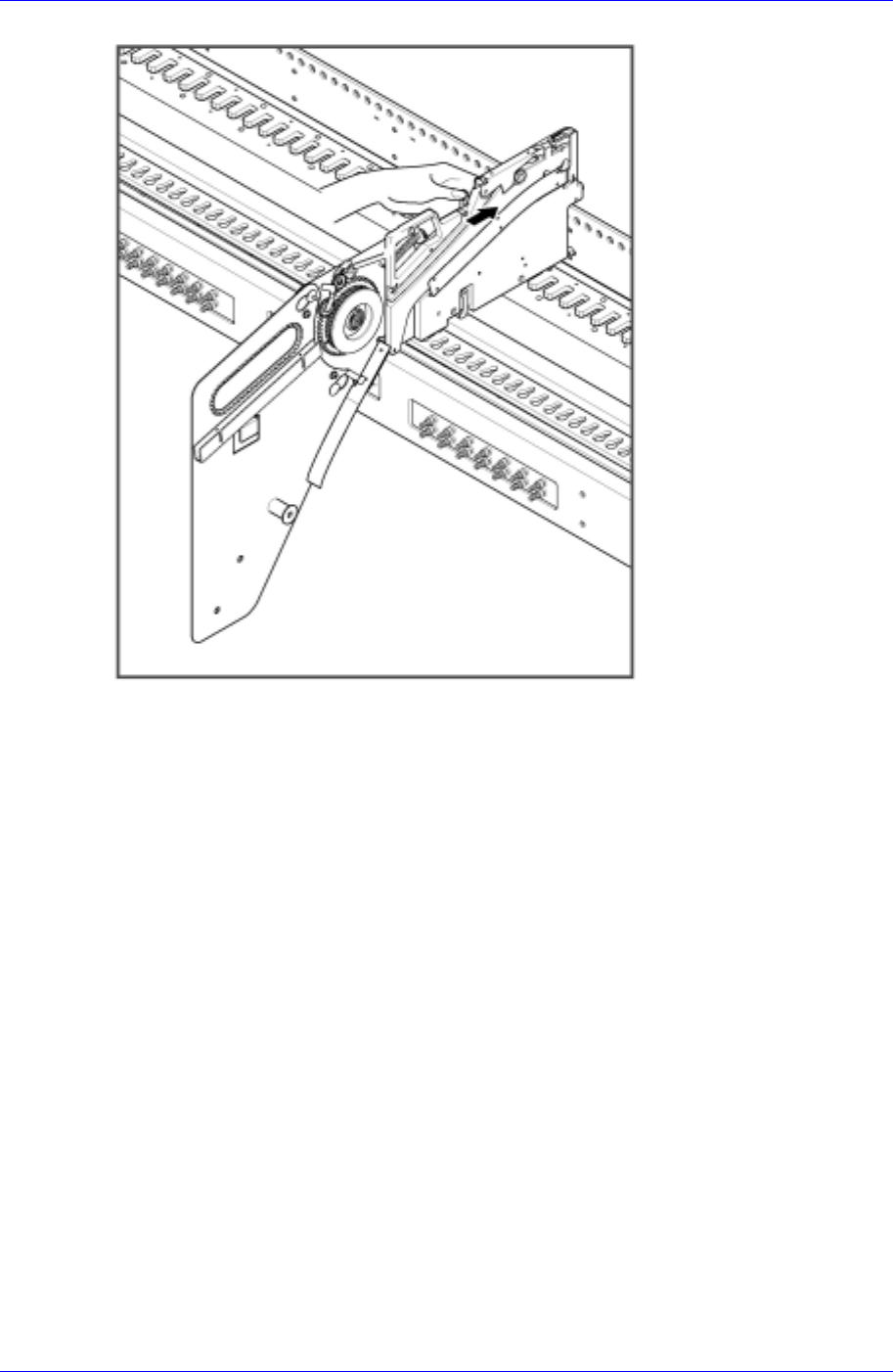

Figure 2-54. Installing the feeder base of the 8mm Non-Stop tape feeder
Figure 2-55. Inserting/Installing on the feeder base of the 12-56mm tape feeders
The appearance of the 0603 Disposal Type Feeder is similar to other general disposal type
feeders, but its clamping method is distinctive. Therefore, press it with care before
mounting. For the 0603 disposal type tape feeder, after releasing the clamp arm,
press it once more toward the equipment direction until it reaches the stopper.
Clamp arm
Samsung Pneumatic Tape Feeder Users' Manual
2-34
Figure 2-56. Inserting/Installing on the feeder base of the 0603 disposal type tape feeder
