Samsung Pneumatic T ape Feeder Users' Manual 2-30 or if the component is lightweight or has a long transfer pitch, hook the spring on the pin in the (-) direction to decrease the force needed to strip off the vinyl …
Operation of the Tape Feeder
2-29

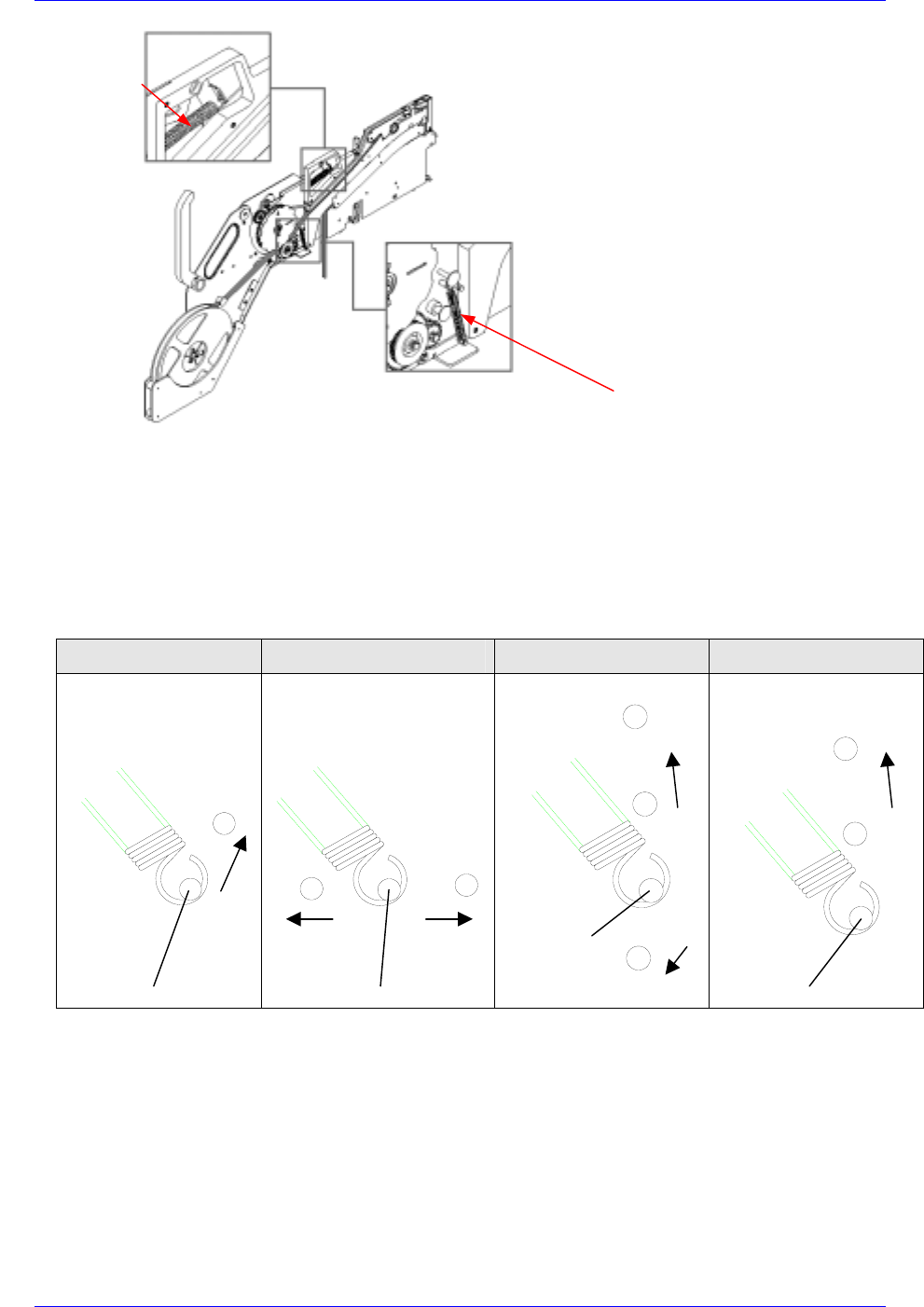

Figure 2-48. Adjusting the positions of the rewind spring and the drain pawl spring of the NST-08
Non-Stop tape feeder (winding type)
2.2.5. Adjusting the location of 12~56mmtape feeder Rewind Spring
Adjust the position of the rewind spring according to the condition of component supply.
12mm 16mm 24-44mm 56mm
Figure 2-49. Adjusting the location of 12~56mmtape feeder Rewind Spring
The normal position of locking up the spring as a base, the force of removing the vinyl
can be increased by moving the position to (+) direction and it can be decreased by
moving it to (-) direction.
If the height of a component is high, hook the spring on the pin in the (+) direction to
increase the force needed to strip off the vinyl sheet. If the height of a component is low
Normal
(
-
)
Normal
(
+
)
(
-
)
Normal
(
-
)
(
+
)
(
-
)
Normal
Drain pawl spring
Rewind spring
Samsung Pneumatic Tape Feeder Users' Manual
2-30
or if the component is lightweight or has a long transfer pitch, hook the spring on the pin
in the (-) direction to decrease the force needed to strip off the vinyl sheet.
2.2.6. Rewind Spring Position Adjustment for 12mm-16mm Non-Stop Tape
Feeder
Adjust the position of the rewinding spring according to the component supply state
before using the tape feeder.
Figure 2-50. Rewind spring position adjustment of the 12mm-16mm tape feeder
The spring is principally hung at the normal position. The vinyl tape stripping force may
be increased or decreased by hanging it at the ( + ) or ( - ) position respectively as
required.
2.2.7. Rewind Spring Position Adjustment for 24mm-56mm Non-Stop Tape
Feeder
Adjust the position of the rewinding spring according to the component supply state
before using the tape feeder.
Caution
After changing the pitch, check manually if the pitch is set as
desired before mounting and using.
When changing the pitch, if screws are not tightened firmly,
loose screws might cause malfunction. Be sure to tighten the
screws firmly when changing the pitch.
(+)
(-)
N
ormal
Operation of the Tape Feeder
2-31
Figure 2-51. Rewind spring position adjustment of the 24mm-56mm tape feeder
The spring is principally hung at the normal position. The vinyl tape stripping force may
be increased or decreased by hanging it at the ( + ) or ( - ) position respectively as
required.
2.3. Installing the tape feeder on the feeder base
While pulling the clamp lever toward the back of the tape feeder, adjust the location pin
under the feeder to the large hole in the feeder base and adjust and fix the location pin on
the front of the feeder to the holes in the feeder base vertical plate.
Warning
When installing the feeder on the feeder base of the
machine, not checking whether the machine is in idle
status could cause severe injury. Be sure to check to see if
the machine operation mode is idle before installing the
feeder.
Caution
When transporting a large feeder, be sure to lift it with a
proper poster. Otherwise, injury might occur as it is heavy.
A large feeder needs to be transported by more than 2
people.
Check whether the feeder is installed on the feeder base
properly before operating the machine.
When mounting the feeder, be careful so that part of
clothing doesn’t get caught between the feeder and the
feeder base.
Check if the multi cylinder on the installation position is
down before mounting.
