Samsung Pneumatic T ape Feeder Users' Manual 2-14 When using the 8mm Non-Stop T ape Feeder , ensure that the tape guide is tightly contacted to the frame. Figur e 2-25. Checking the closeness between th e tape guide…
Operation of the Tape Feeder
2-13
Figure 2-22. Installing the carrier tape on the sprocket
Figure 2-23. Installing the carrier tape on the sprocket (8mm Non-Stop tape feeder)
Figure 2-24. Installing the carrier tape on the sprocket (8mm non-stop emboss tape feeder)
Caution
While the buck up is fixed, applying impact or closing the
lock cover could force the buck up to bounce, which could
cause injury.
Do not close the lock cover while the tape guide is open.
Be sure to check if the positions of the shutter and the pin
match when closing the tape guide
Tape guide
Carrier tape
Lock cover
Sprocket
Buck-up
Samsung Pneumatic Tape Feeder Users' Manual
2-14
When using the 8mm Non-Stop Tape Feeder, ensure that the tape guide is tightly
contacted to the frame.
Figure 2-25. Checking the closeness between the tape guide and the frame (8mm non-stop tape
feeder)
When using the 8mm Non-Stop emboss tape feeder or the 0603 disposal type tape feeder,
ensure that the tape guide, tape and frame are tightly contacted.
Figure 2-26. Checking the closeness between the tape guide, tape and the frame (8mm non-stop
emboss tape feeder, 0603 disposal type tape feeder)
Caution
If the tape guide and tape frame for the 8mm Non-Stop
emboss tape feeder and the 0603 disposal type tape
feeder are not tightly contacted, the tape may not be
supplied and the dump rate of the components may
increase. Therefore, ensure that they are tightly contacted
prior to using the tape feeder.
Frame
Tape guide
Tape
Tape Guide
Frame
Operation of the Tape Feeder
2-15
When using the 8mm Non-Stop tape feeder or the 0603 disposal type tape feeder, ensure
that the tape guide and the lock cover are properly locked.

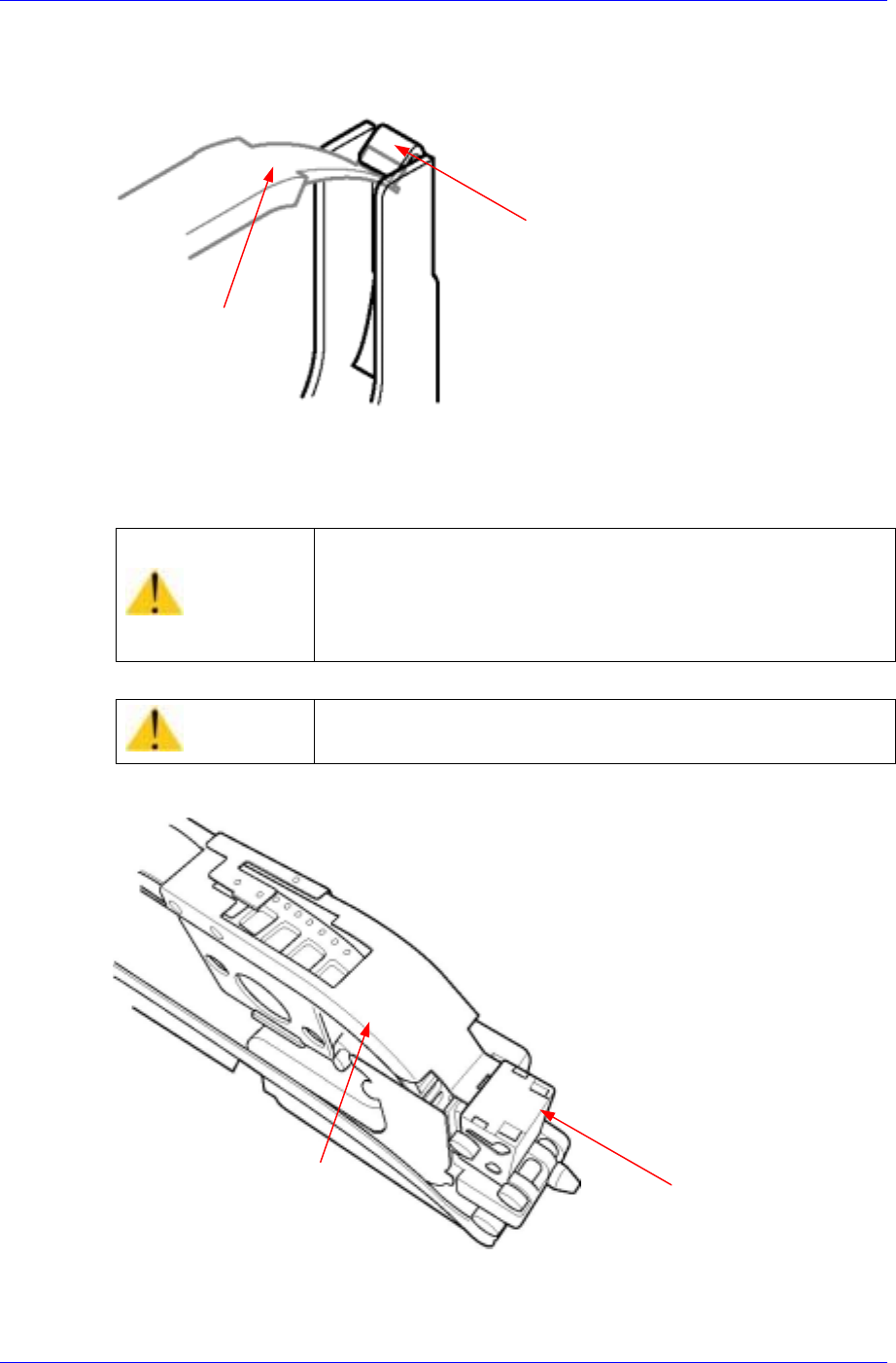

Figure 2-27.Checking the locking state of the tape guide and the lock cover (8mm non-stop tape
feeder, 0603 disposal type tape feeder)
Figure 2-28. Checking the locking state of the tape guide and the lock cover (12mm~56mm non-
stop tape feeder)
Caution
Check the locking state of the tape guide and the lock
cover. The tape feeder whose tape guide and lock cover
are not properly locked may cause problems such as lack
of tape supply or collision with the machine. Ensure that
they are properly locked prior to use.
Caution
Check if the sprocket is engaged in the tape hole.
Tape guide
Lock cover
Tape guide
Lock cover
