Samsung Pneumatic T ape Feeder Users' Manual 1-8 1.1.8. 24mm Non-S top tape feeder 1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet 5: Sprocket 6: T ape Support 7: Shutter 8: Planet Gear 9: T ape Guide 10: Clamp…
Overview
1-7

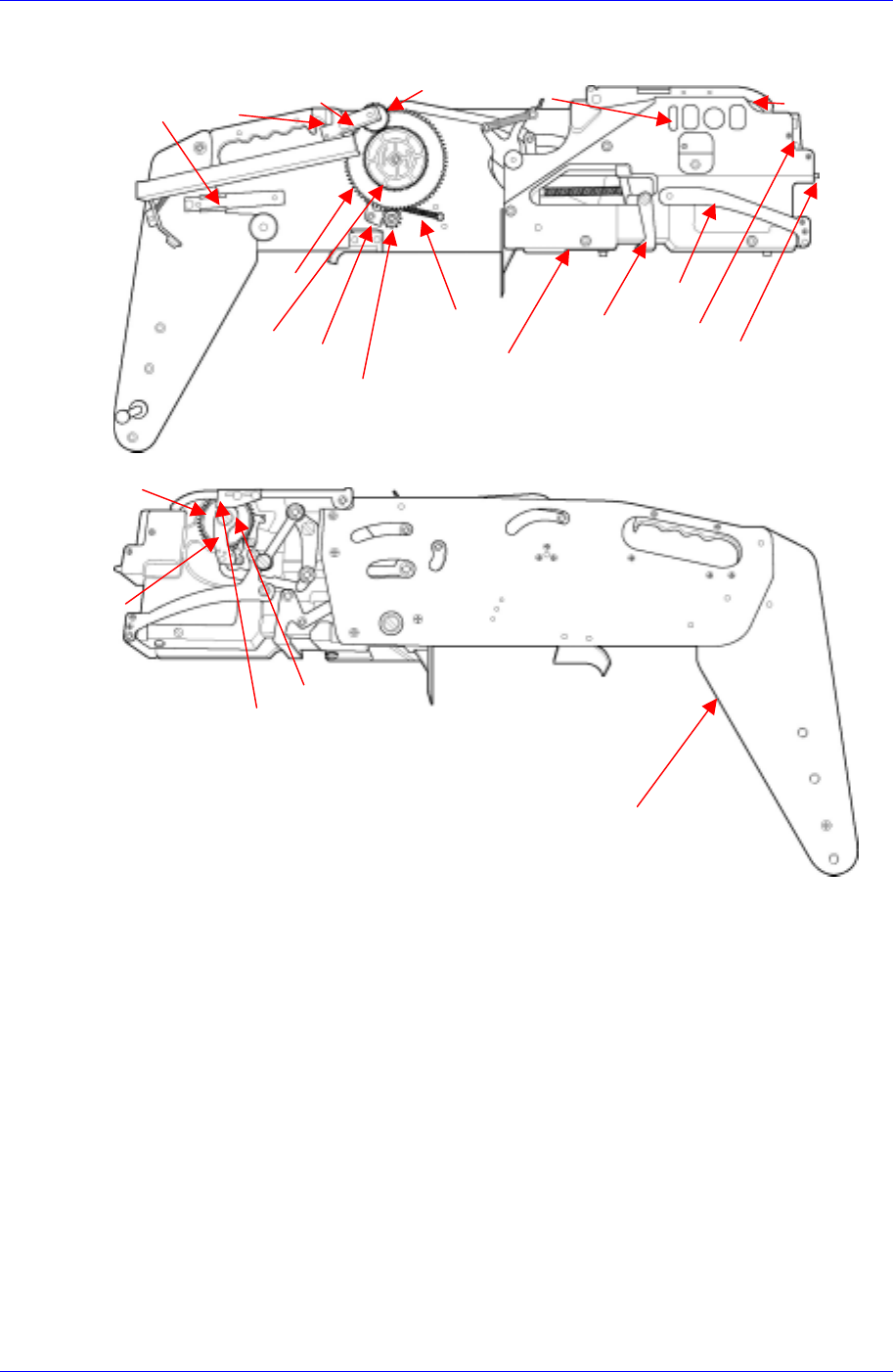

1.1.7. 12mm-16mm Non-Stop tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Tape Support 7: Shutter 8: Planet Gear
9: Tape Guide 10: Clamp Lever 11: Pawl Lever 12: Take Up Reel
13: Planet Lever 14: Reel Arm Post 15: Rewind Spring 16: Drain Gear
17: Forming Gear 18: Forming Bracket 19: Drain Pawl Spring 20: Stopper
21: Reel Arm Plate
Figure 1-7. Configuration of the 12-16mmnon-stop tape feeder
20
13
8
12
11
14
15
16
17
18
19
9
6
1
3
7
4
5
2
10
21
Samsung Pneumatic Tape Feeder Users' Manual
1-8

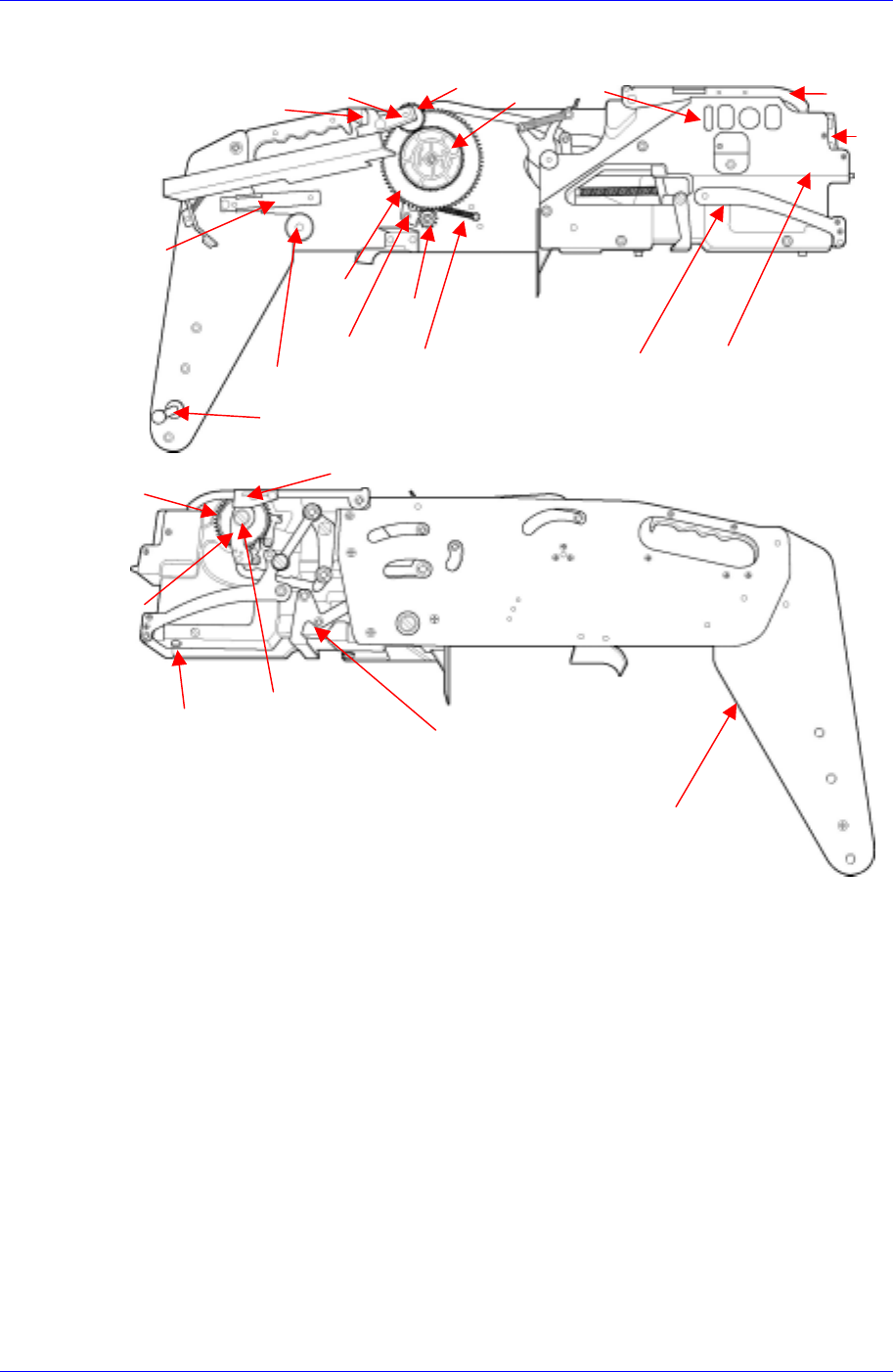

1.1.8. 24mm Non-Stop tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Tape Support 7: Shutter 8: Planet Gear
9: Tape Guide 10: Clamp Lever 11: Pawl Lever 12: Take Up Reel
13: Planet Lever 14: Reel Arm Post 15: Rewind Spring 16: Drain Gear
17: Forming Gear 18: Damper 19: Drain Pawl Spring 20: Stopper
21: Reel Arm Plate 22: Sub Frame 23: Sprocket Bush
Figure 1-8. Configuration of the 12-16mmnon-stop tape feeder
20
19
11
17
12
16
13
8
15
22
10
1
6
9
3
2
23
7
5
4
21
Overview
1-9
1.1.9. 32mm-56mm Non-Stop tape feeder
1: Pusher Lever 2: Location Pin 3: Locker 4: Ratchet
5: Sprocket 6: Tape Support 7: Shutter 8: Planet Gear
9: Tape Guide 10: Clamp Lever 11: Pawl Lever 12: Take Up Reel
13: Planet Lever 14: Reel Arm Post 15: Rewind Spring 16: Drain Gear
17: Forming Gear 18: Damper 19: Drain Pawl Spring 20: Stopper
21: Reel Arm Plate 22: Sub Frame 23: Sprocket Bush
Figure 1-9. Configuration of the 32-56mmnon-stop tape feeder
20
18
14
8
13
15
19
11
17
12
16
6
9
22
3
1
23
7
5
4
21
10
2
