Version 27.00, October 2024
Rohde & Schwarz R&S
®
SMW200A Vector Signal Generator 15
Setting time
to < 0.1 dB deviation from final value, with GUI update stopped, no relay switchover,
f > 10 MHz, I/Q optimization mode: fast, health and utilization monitoring service
(HUMS) off
after IEC/IEEE bus delimiter
3
< 1.2 ms, 1 ms (typ.)
with switching of mechanical step
attenuator, after IEC/IEEE bus delimiter
< 25 ms
R&S
®
SMW-B1044, R&S
®
SMW-B1044N,
R&S
®
SMW-B1044O,
R&S
®
SMW-B2044, R&S
®
SMW-B2044N,
R&S
®
SMW-B2044O,
R&S
®
SMW-B1056, R&S
®
SMW-B1056N,
R&S
®
SMW-B1056O,
R&S
®
SMW-B1067, R&S
®
SMW-B1067N,
R&S
®
SMW-B1067O,
with switching of mechanical step
attenuator,
after IEC/IEEE bus delimiter
< 30 ms
Setting time (list mode)
to < 0.1 dB deviation from final value, with GUI update stopped, no relay switchover,
f > 10 MHz, I/Q optimization mode: fast, health and utilization monitoring service
(HUMS) off
after trigger pulse
3
< 0.8 ms, 0.55 ms (typ.)
with R&S
®
SMW-B711,
R&S
®
SMW-B721, run mode: live
< 1 ms
Interruption-free level setting range
level setting characteristic:
uninterrupted level setting
> 20 dB
Reverse power (from 50 Ω source)
maximum permissible RF power in output frequency range of RF path with
R&S
®
SMW-B1003, R&S
®
SMW-B2003, R&S
®
SMW-B1006, R&S
®
SMW-B2006
frequency options;
Note: The RF path is switched off if the reverse power exceeds a limit
(+27 dBm (meas.), depends on RF frequency).
1 MHz < f ≤ 3 GHz
50 W
3 GHz < f ≤ 6 GHz
10 W
maximum permissible RF power in output frequency range of RF path with
R&S
®
SMW-B1007, R&S
®
SMW-B2007, R&S
®
SMW-B1012, R&S
®
SMW-B1020,
R&S
®
SMW-B2020, R&S
®
SMW-B1031, R&S
®
SMW-B2031, R&S
®
SMW-B1040,
R&S
®
SMW-B1040N, R&S
®
SMW-B1044, R&S
®
SMW-B2044, R&S
®
SMW-B1044N,
R&S
®
SMW-B2044N, R&S
®
SMW-B1044O, R&S
®
SMW-B2044O, R&S
®
SMW-B1056,
R&S
®
SMW-B1056N, R&S
®
SMW-B1056O, R&S
®
SMW-B1067, R&S
®
SMW-B1067N,
R&S
®
SMW-B1067O frequency options
1 MHz < f ≤ 67 GHz
0.5 W
Maximum permissible DC voltage
R&S
®
SMW-B1003, R&S
®
SMW-B2003,
R&S
®
SMW-B1006, R&S
®
SMW-B2006
frequency options
50 V
R&S
®
SMW-B1007, R&S
®
SMW-B2007,
R&S
®
SMW-B1012, R&S
®
SMW-B2012
frequency options
35 V
R&S
®
SMW-B1020, R&S
®
SMW-B2020,
R&S
®
SMW-B1031, R&S
®
SMW-B1040,
R&S
®
SMW-B1040N, R&S
®
SMW-B1044,
R&S
®
SMW-B2044, R&S
®
SMW-B1044N,
R&S
®
SMW-B2044N, R&S
®
SMW-B1044O,
R&S
®
SMW-B2044O, R&S
®
SMW-B1056,
R&S
®
SMW-B1056N, R&S
®
SMW-B1056O,
R&S
®
SMW-B1067, R&S
®
SMW-B1067N,
R&S
®
SMW-B1067O frequency options
0 V
3
R&S
®
SMW-B1007, R&S
®
SMW-B2007, R&S
®
SMW-B1012, R&S
®
SMW-B1020, R&S
®
SMW-B2020, R&S
®
SMW-B1031, R&S
®
SMW-B1040,
R&S
®
SMW-B1040N: temperature > +18 °C.
Version 27.00, October 2024
16 Rohde & Schwarz R&S
®
SMW200A Vector Signal Generator

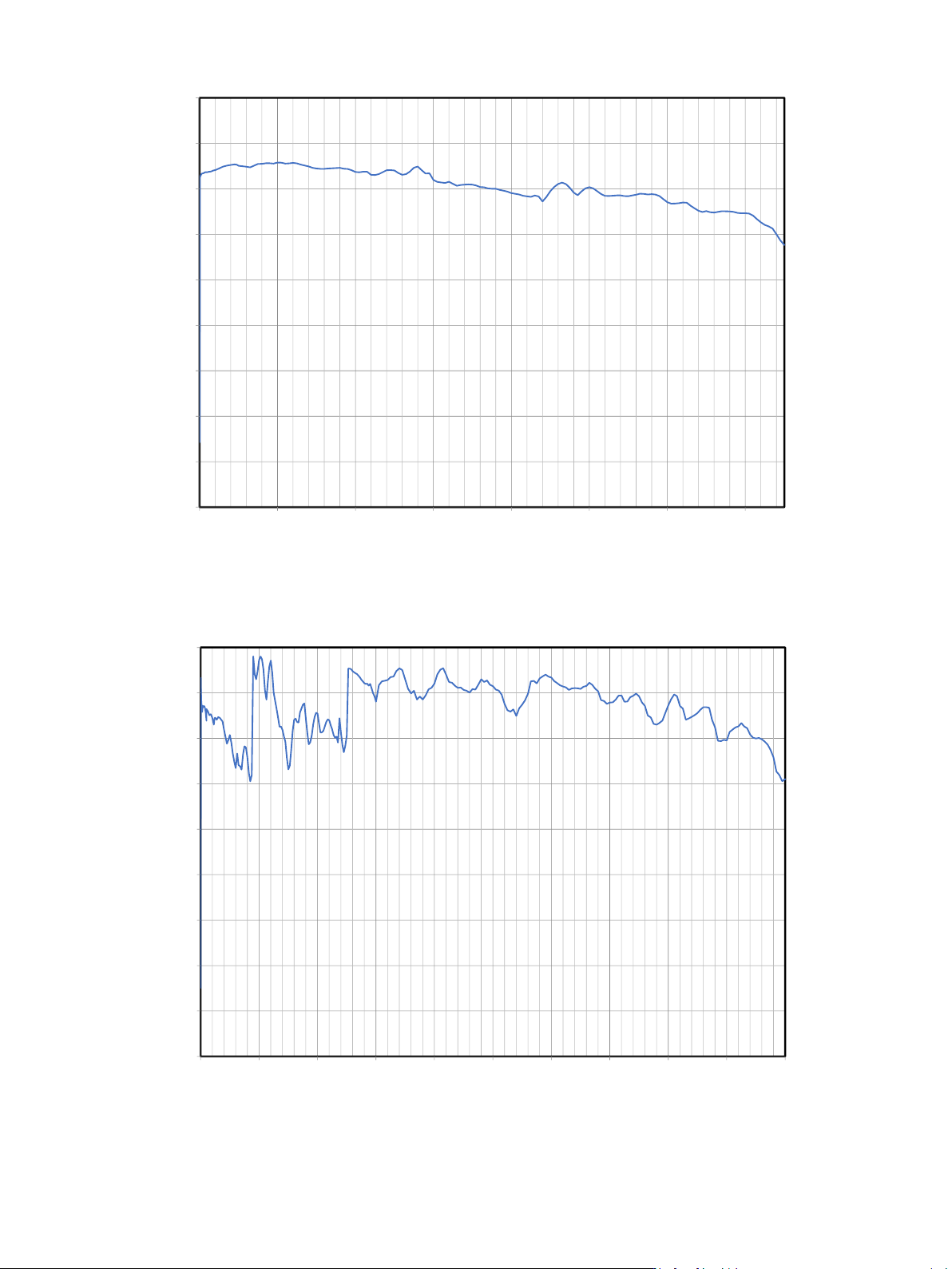

Measured maximum available output level versus frequency with R&S
®
SMW-B1007, R&S
®
SMW-B2007 frequency options
Measured maximum available output level versus frequency with R&S
®
SMW-B1020, R&S
®
SMW-B2020 frequency options
10
12
14
16
18
20
22
24
26
28
0 2 4 6 8 10 12 14 16 18 20
Level / dBm
Carrier frequency / GHz
10
12
14
16
18
20
22
24
26
28
0 1 2 3 4 5 6 7
Level / dBm
Carrier frequency / GHz
Version 27.00, October 2024
Rohde & Schwarz R&S
®
SMW200A Vector Signal Generator 17

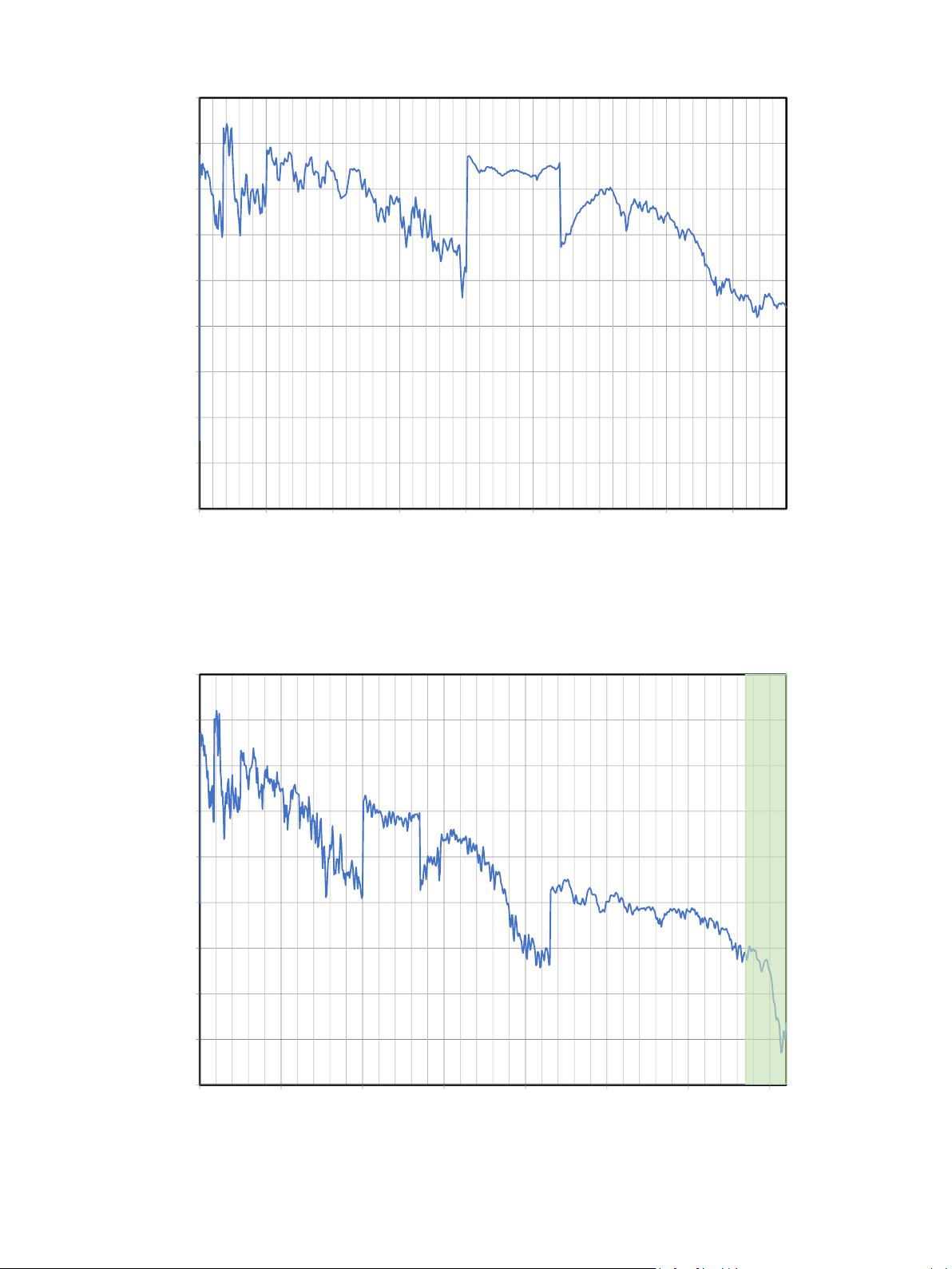

Measured maximum available output level versus frequency with R&S
®
SMW-B1044, R&S
®
SMW-B1044N, R&S
®
SMW-B1044O,
R&S
®
SMW-B2044, R&S
®
SMW-B2044N, R&S
®
SMW-B2044O frequency options
Measured maximum available output level versus frequency with R&S
®
SMW-B1067, R&S
®
SMW-B1067N,
R&S
®
SMW-B1067O frequency options
10
12
14
16
18
20
22
24
26
28
0 5 10 15 20 25 30 35 40
Level / dBm
Carrier frequency / GHz
10
12
14
16
18
20
22
24
26
28
0 10 20 30 40 50 60 70
Level / dBm
Carrier frequency / GHz
Overrange
