3 Installation
3.8 Final work
80 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Stationäre Kamera Typ 25/33 (GigE) Stationary
Camera Type 25/33 (GigE) 03/2021

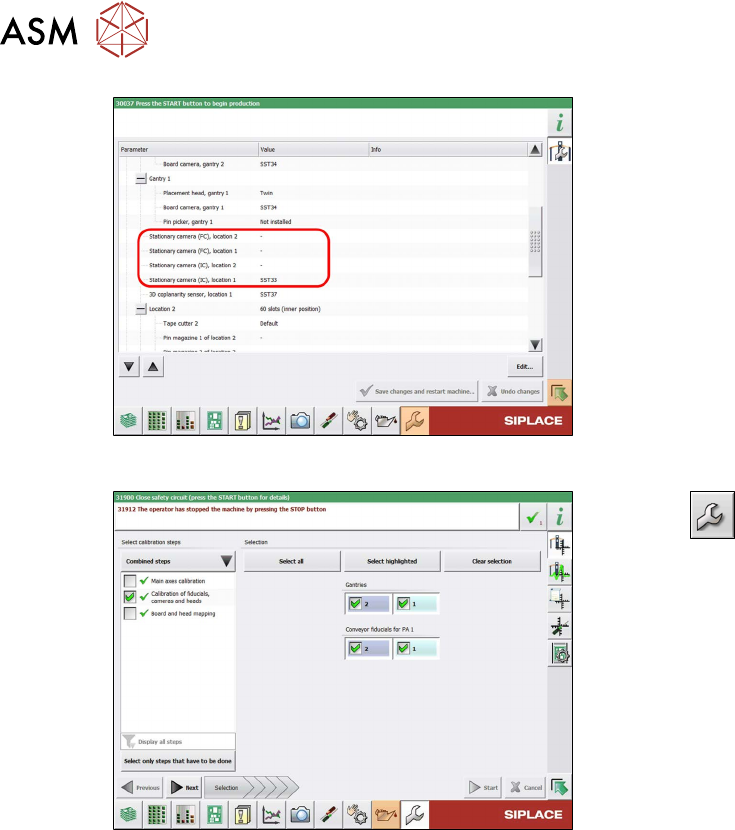

Fig.29: Configuration
Configure the installed camera, at the
relevant location, in the station software
(Machine configuration
menu).
Fig.30: Calibration
Select --> Automatic Cali-
bration.
Select Calibration of fiducials, cam-
eras and heads and the relevant
gantry.
Follow any other instructions on the
screen (e.g. prerequisites).
Select Start.
ð After calibration, the camera will be
ready for use.
Perform the next steps, if necessary:
Change the machine configuration for the new camera in SIPLACE Pro.
Perform placement program optimization for the line.
4 Appendix
4.1 Excerpts from the Service Manual
Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Stationäre Kamera Typ 25/33 (GigE) Stationary
Camera Type 25/33 (GigE) 03/2021
81
4 Appendix
4.1 Excerpts from the Service Manual
The following chapters are excerpts from the service manual for your machine. If required, further
information is provided there.
Service Manual SIPLACE SX1/SX2 V3 [DE:00198707‑xx] [EN:00198708‑xx]
4.1.1 Replacing the Waste Tape Chute
Parts, equipment and tools
Select the appropriate waste tape slide:
Assembly Waste tape slide
COT insert 60 [03059353-xx] Waste slide SX1/2 COT60 [03064026-xx]
COT insert 30 [03067206-xx] Waste slide SX1/2 COT30 [03073312-xx]
Removal
Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}55]
Unhook the waste tape slide.
Installation
Hook the waste tape slide into place.

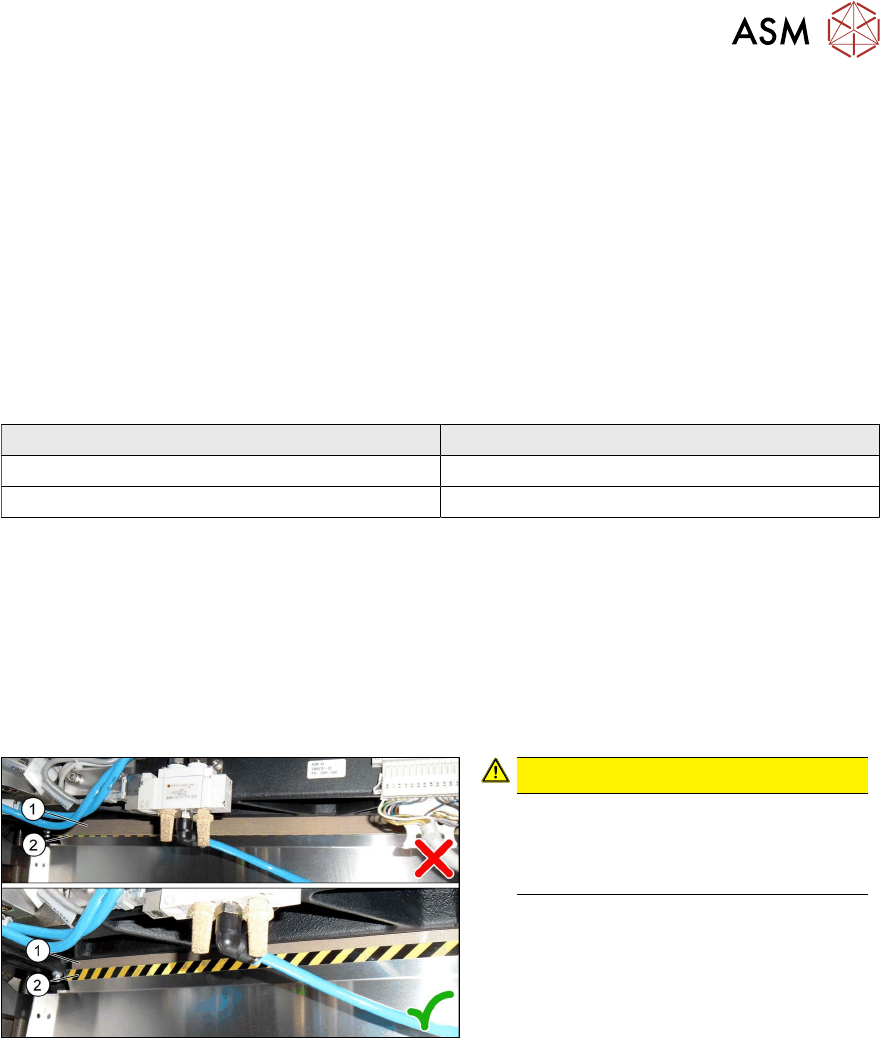

Fig.31: Plastic strips
 CAUTION!
Make sure that the plastic strips(1) are
located behind the plate(2)
.
The black-yellow hatched label must
be completely visible.
.
4 Appendix
4.1 Excerpts from the Service Manual
82 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Stationäre Kamera Typ 25/33 (GigE) Stationary
Camera Type 25/33 (GigE) 03/2021
4.1.2 Replacing the SX1/SX2 COT insert assembly
Parts, equipment and tools
Standard: COT insert for SX1/SX2 [03059353-xx]
With WPC: COT insert 30 [03067206-xx]
Mounting tool [03072615-xx]
Suitable lifting device (e.g. Flexolift 175 [03072616-xx])
Removal
Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
1.2 "Preparatory work..." [}55]
Unplug all electrical and pneumatic connections from the nozzle changer. You may like to
mark their positions, to make clear assignment easier later on.
Remove the nozzle changer.
Remove the cutter from the machine.
Dismantle the downholder.
4.1.2.1
"Fitting the Downholder" [}84]
Unplug all electrical and pneumatic connections from the COT insert. These are in sectors 2
and 4, on the right of the location. You may like to mark their positions, to make clear assign-
ment easier later on.

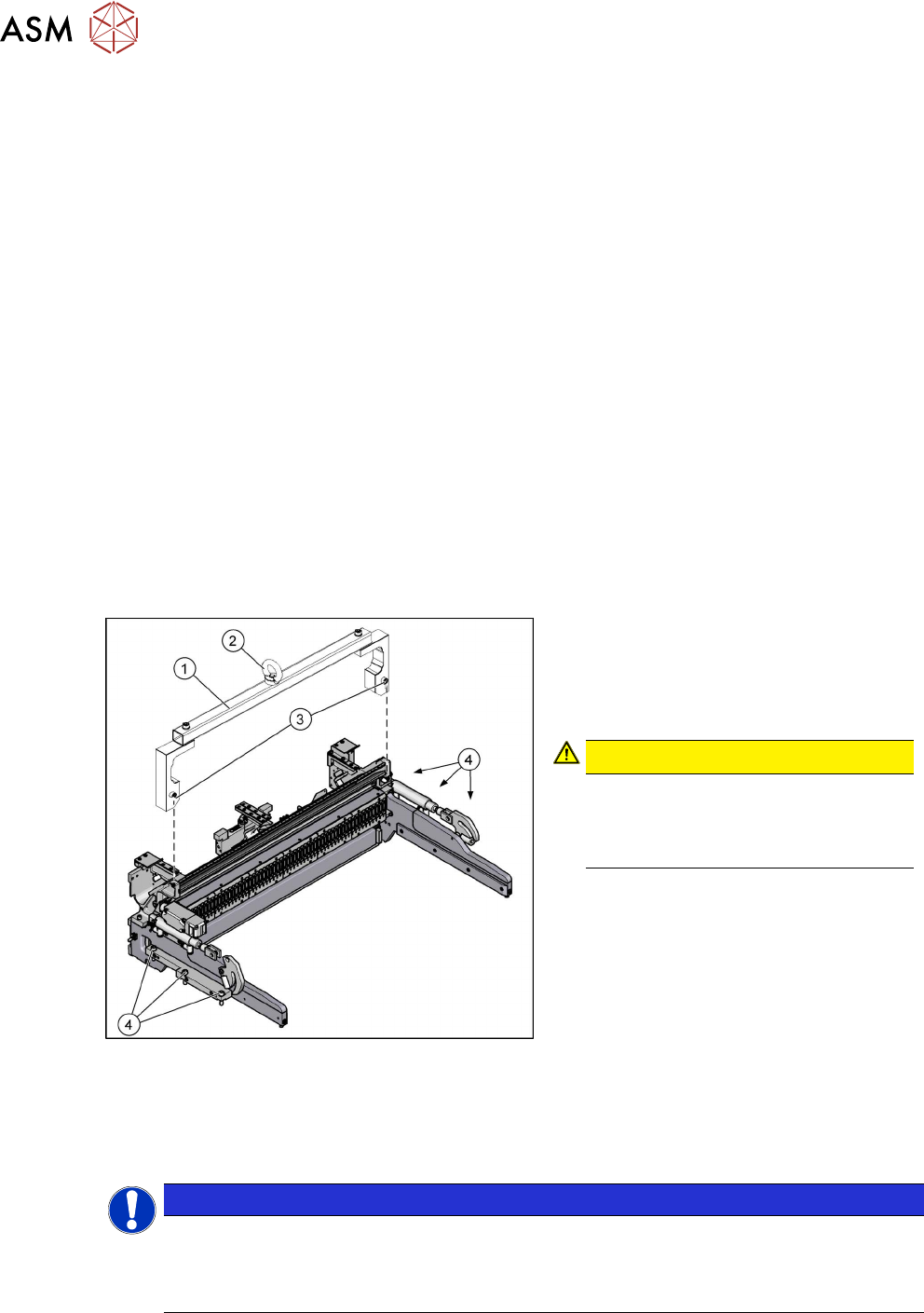

Fig.32: Fastening screws
1. Mounting tool
2. Eyelet
3. Fastening screws for mounting tool
4. Fastening screws for COT insert
 CAUTION!
Heavy machine part!
The COT insert is heavy. To lift it out,
you will need to use the mounting tool
and a suitable lifting device.
.
Attach the mounting tool to the fixtures provided on the COT insert.
Remove the six screws fastening the COT insert.
Fix the lifting device to the eyelet of the mounting tool.
NOTICE
Marking the installation position
The COT insert can be installed at different positions (inner/outer) in the machine location.
Mark the position of your COT insert, to ensure that this is subsequently returned to its ori-
ginal position.
Lift the complete COT insert out of the machine and place it on a suitable surface (e.g. four
wooden blocks).
Make sure not to damage any valves, connection cables, hoses, etc.
