Installation

Follow the removal instructions in reverse order for installation. Also observe the following instruc-

tions:

► Attach the mounting tool to the new COT insert and lift it into the machine, with the help of the

lifting device.

► Make sure not to damage the cables and hoses.

► Observe the instructions in section 4.1.2.1 "Fitting the Downholder" [}84].

► Hook the waste tape slide into place. Pay particular attention to the plastic strips and the fuses

(if present).

4 Appendix

4.1 Excerpts from the Service Manual

84 Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Stationäre Kamera Typ 25/33 (GigE) Stationary

Camera Type 25/33 (GigE) 03/2021

4.1.2.1 Fitting the Downholder

Preparing the downholder

NOTICE

Only when table position changed

The downholder pin only needs to the converted if the table position inside/outside has

been changed.

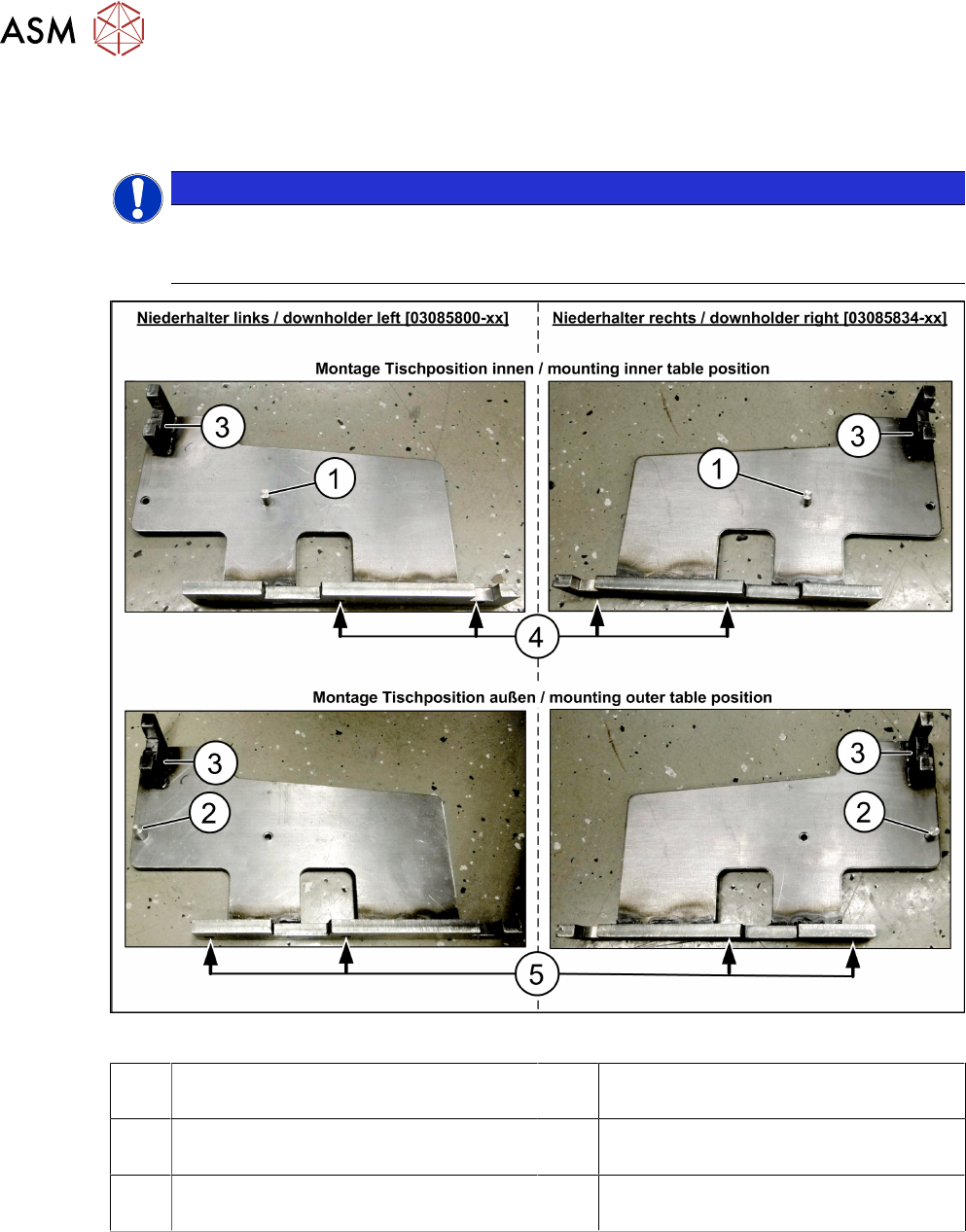

Fig.33: Downholder

1 Pin DIN6325-10-M6x30-St [00358814-

xx] at position inside

2 Pin DIN6325-10-M6x30-St [00358814-

xx] at position outside

3 Docking aid 4 Screw ISO4762-M8x40-A2-70

[03042589-xx]

5 Screw ISO4762-M8x40-A2-70

[03042589-xx]

Depending on the position of the component trolley (inside/outside), the downholder pin

[03085247-xx] is fitted either in position(1)

or(2). This is then secured in place with a screw

ISO4762-M6x12-A2-70 [03042572‑xx].

After installation, the docking aid (3) docking aid on the downholder is always in the same position

as the docking unit that was previously dismantled (near the protective cover). The downholder pin

and therefore the assembly position of the downholder depends on the table position (inside/out-

side).

4 Appendix

4.1 Excerpts from the Service Manual

Assembly Instructions / Montageanleitung SIPLACE SX1/SX2 V3 Stationäre Kamera Typ 25/33 (GigE) Stationary

Camera Type 25/33 (GigE) 03/2021

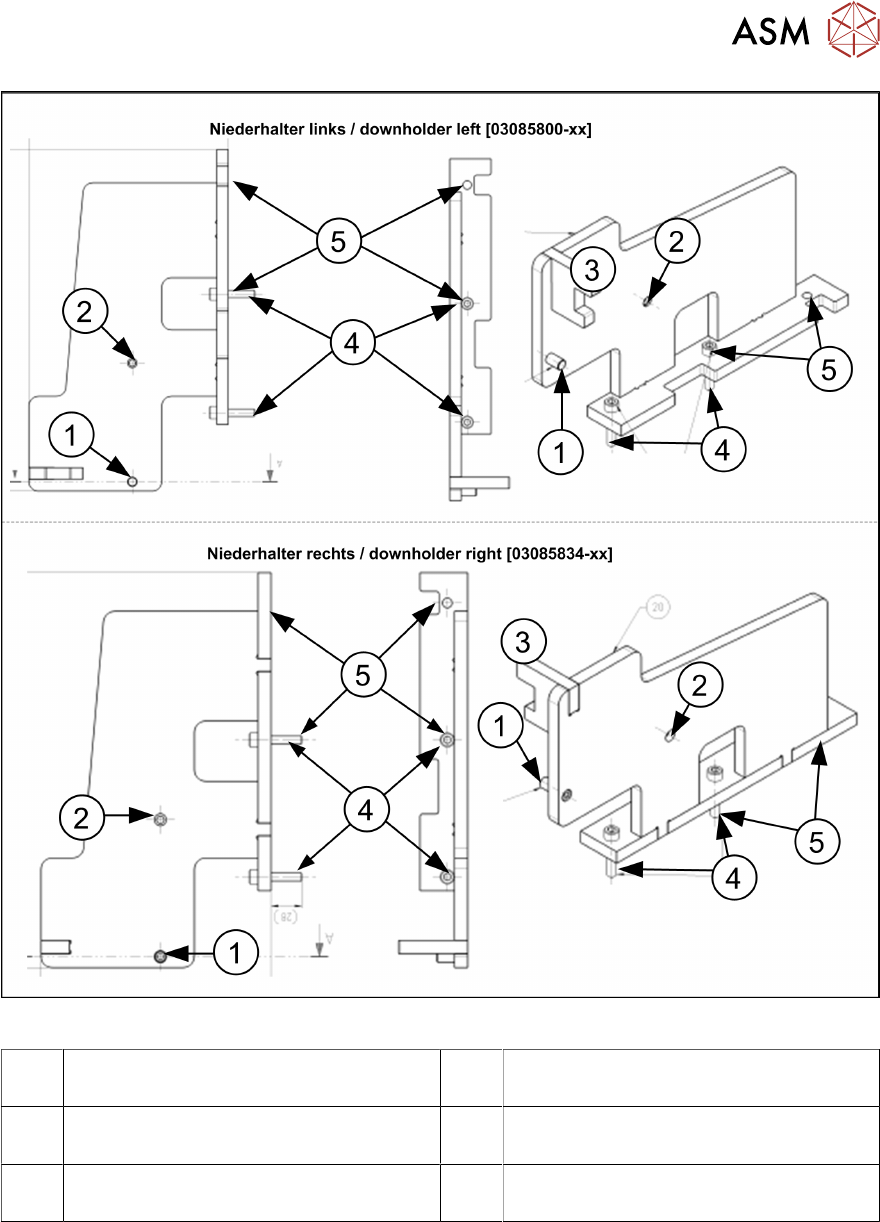

Fig.34: Docking aid

1 Pin DIN6325-10-M6x30-St [00358814-

xx] at position inside

2 Pin DIN6325-10-M6x30-St [00358814-

xx] at position outside

3 Docking aid 4 Screw ISO4762-M8x40-A2-70

[03042589-xx]

5 Screw ISO4762-M8x40-A2-70

[03042589-xx]

The position of the fastening screws(4) and(5) depends on the position of the COT insert.

When the table is in the inner position, the downholder pin(1) is moved approx. 125mm inwards,

towards the docking aid(3)

and the downholders are fixed with two new screws each to the posi-

tion(4)

, together with the COT insert.

When the table is in the outer position, the downholder pin(2) is underneath the docking aid(3)

and the downholders are fixed with two new screws each to the position(5), together with the COT

insert.
