3.3.5 Squeegee speed
With some types of flux the squeegee speed may have an influence on the surface of the flux after
application.

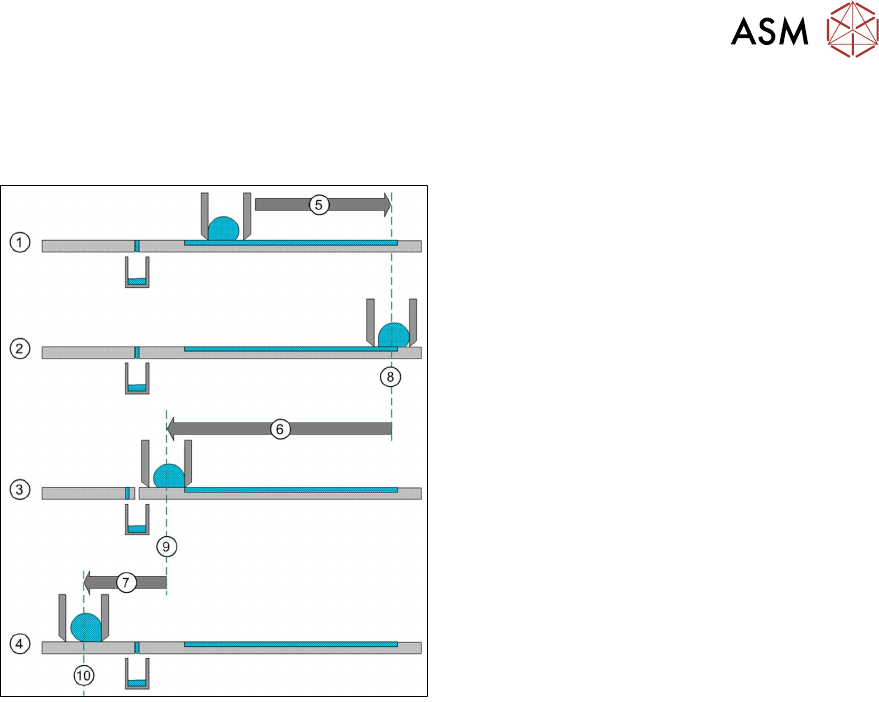

1. The squeegee axis moves with maximum
speed forward to the reverse position(5)
.
2. The squeegee axis is now in the reverse
position(8)
.
3. The squeegee axis moves with adjustable
squeegee speed over the cavity(6)
back in
the acceleration position(9)
.
4. The squeegee axis moves with maximum
speed(7)
back to the park position on the
park plate(10)
.
The squeegee speed is set in the line software: 4.1.12 "Setting the warm-up cycles and the squee-
gee speed" [}162].
The optimum squeegee speed for the flux used must be determined in tests. It is therefore useful to
use the maximum speed as a starting point:
●
Flux = 200mm/s
●
Solder paste = 200mm/s
3 Function description and structure
3.3 Basic process
144 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020
3.3.6 Dipping process and dwell time
The dipping process in placement machines roughly consists of the following steps:
1. Pick component up from the relevant feeder module
2. Dipping component in the flux
3. Check and center component with the Vision system
4. Place component on the board
The detailed dipping procedure (step 2) consists of the following steps:

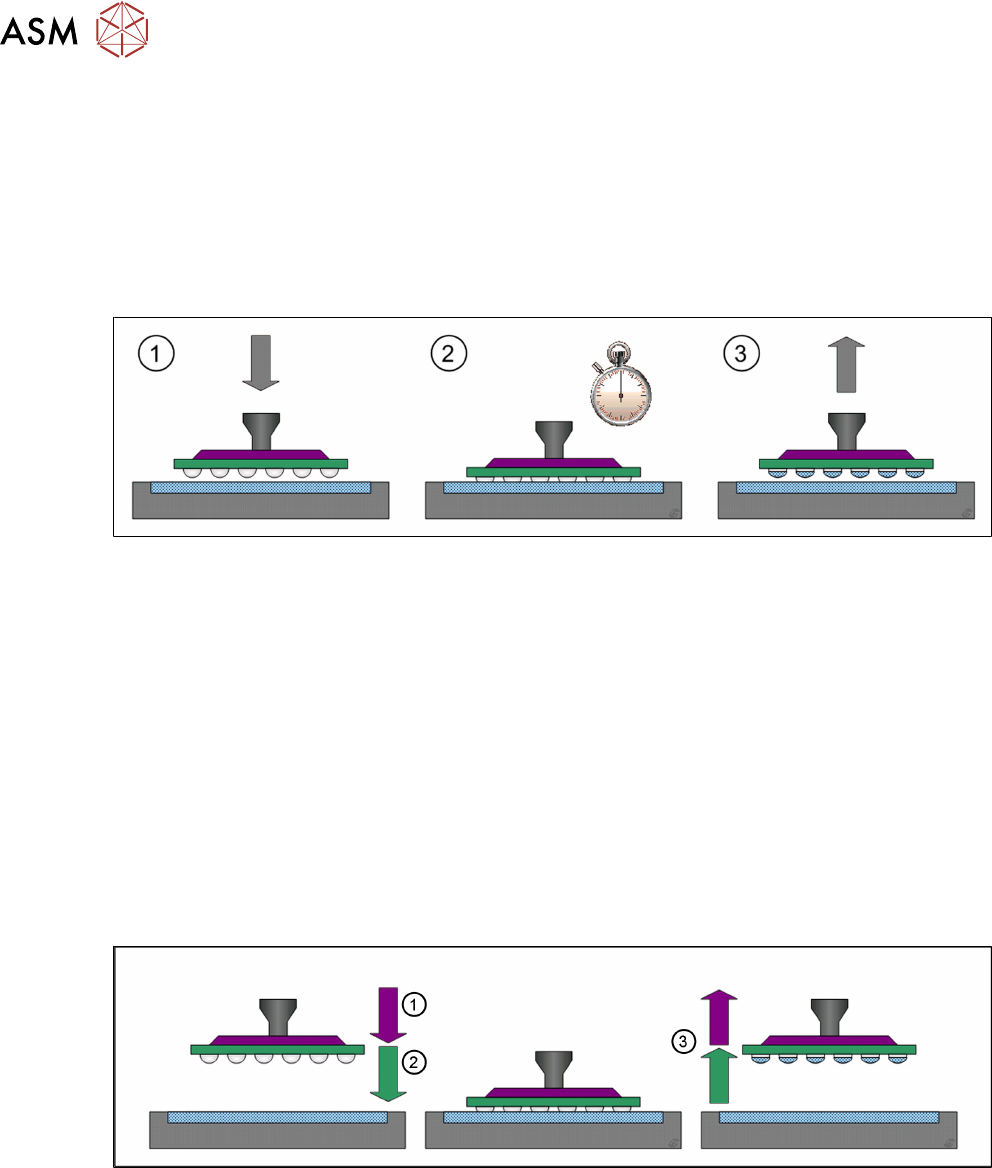

1. The placement head moves with the component over the LDU to an unused part of the dip-
ping area. The placement head moves down until the component reaches the bottom of the
cavity.
2. The down sensor for the placement head starts a dwell time.
3. After the end of the dwell time, the placement head moves up again.
During the dwell time, the flux can coat the component on the parts which have been dipped into it.
The dwell time can be set in the line software: 4.1.7
"Setting the dipping sequence and the dwell
time" [}158]. The correct dwell time must be determined through tests.
3.3.7 Creep distance
Depending on the viscosity of the flux used, it can be necessary to adjust the speed down or speed
up when dipping into the cavity. Components which get stuck in the flux of the cavity when the
nozzle moves up indicate that the speed up is too high. A speed down that is too high can lead to
uneven wetting of the component balls/bumps.
The distance between the surface of the cavity depth and the creep point is the creep distance.
(1) The placement head moves down with normal speed until it reaches the adjustable creep point
where it slows down to the adjustable speed down value.
(2) The placement head moves down with the speed down until it reaches the surface of the cavity
depth.
(3) The placement head moves up with the adjustable speed up until it reaches the creep point
where it accelerates to normal speed.
Creep point, speed down and speed up for each component and flux are set in the line software:
4.1.9
"Setting the creep distance" [}160].
