4 Operation
4.1 Settings in SIPLACE Pro
146 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020
4.1.1 Setting up the LDU
●
Depending on the head and changeover table SIPLACE Pro checks whether the LDU can be
reached or not. A general limitation doesn’t exist.
●
SIPLACE Pro checks whether the LDU can be reached or not depending on the head and
table. There is no general limitation.
●
The LDU can be set up directly next to any feeder modules.
●
The LDU should not be configured in direct vicinity to feeder modules for very small components.
●
It is recommended not to set up any linear feeder and stick feeder modules together with the
LDU on the same changeover table.
► In SIPLACE Pro, click on the Setup tab(1).
► Click on the Feeder Tree View tab(2).
► Drag the relevant LDU from the tree view(3) to the desired track of the changeover table(4).
4 Operation
4.1 Settings in SIPLACE Pro
User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020 147
4.1.2 Defining the dipping plate
Creating a dipping plate object
► In SIPLACE Pro, click on the Tools tab(1).
► In the Tools Tree View, right-click on the folder you want to add a new dipping plate to.
► Select New Dipping Plate Type from the menu(2).
There are 3 dipping plate types that can be used with the LDU 2 X:
●
Standard dipping plates with one cavity of a fixed depth
●
Special dipping plates with multiple cavities of fixed depths (cavities on one dipping plate can
have different sizes and depths)
●
Auto Cavity dipping plates with one cavity of an adjustable depth (only for LDU 2 X with Auto
Cavity option)
4 Operation
4.1 Settings in SIPLACE Pro
148 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020
Defining a standard dipping plate

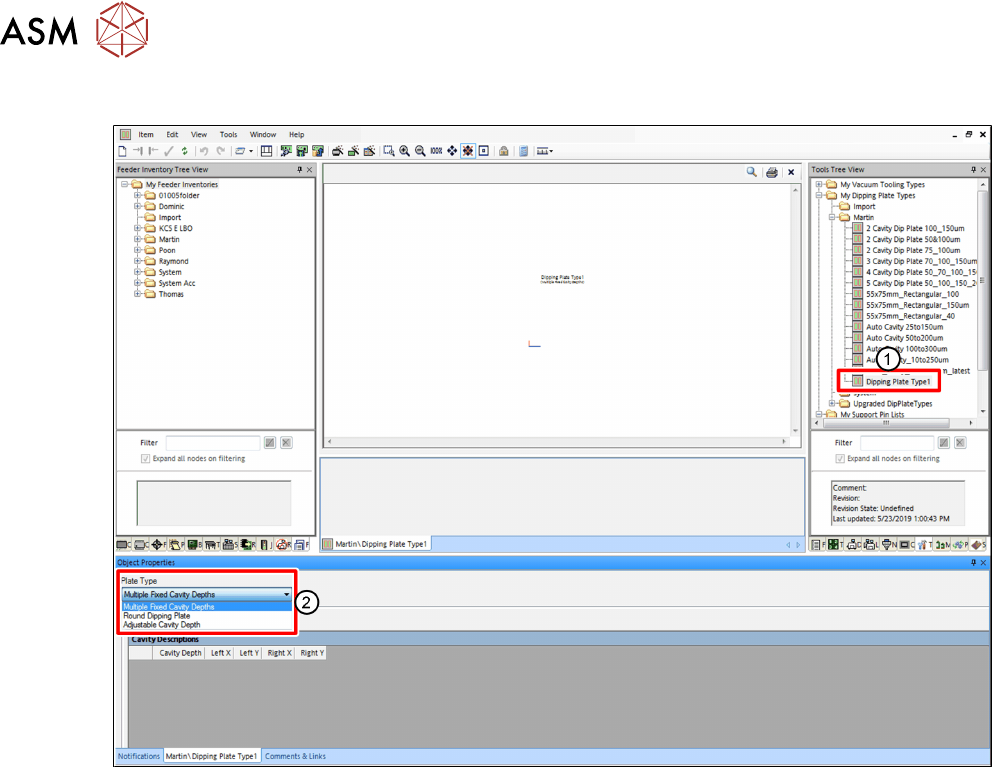

► In the Tools Tree View, select the dipping plate to be defined(1).
► In the Object Properties area, select Multiple Fixed Cavity Depths from the Plate Type
menu(2).
