4 Operation 4.18 Logging off and removal User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020 193 4.18 Logging off and removal NOTICE Target group: standard operator The procedure described is…
4 Operation
4.17 Refreshing the dipping medium
192 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020
4.17 Refreshing the dipping medium
NOTICE
Target group: standard operator
The procedure described is a regular task that can be carried out by any trained operator.
With the Refresh dipping medium function you can perform a set number of squeegee move-
ments to refresh the flux in the cavity.

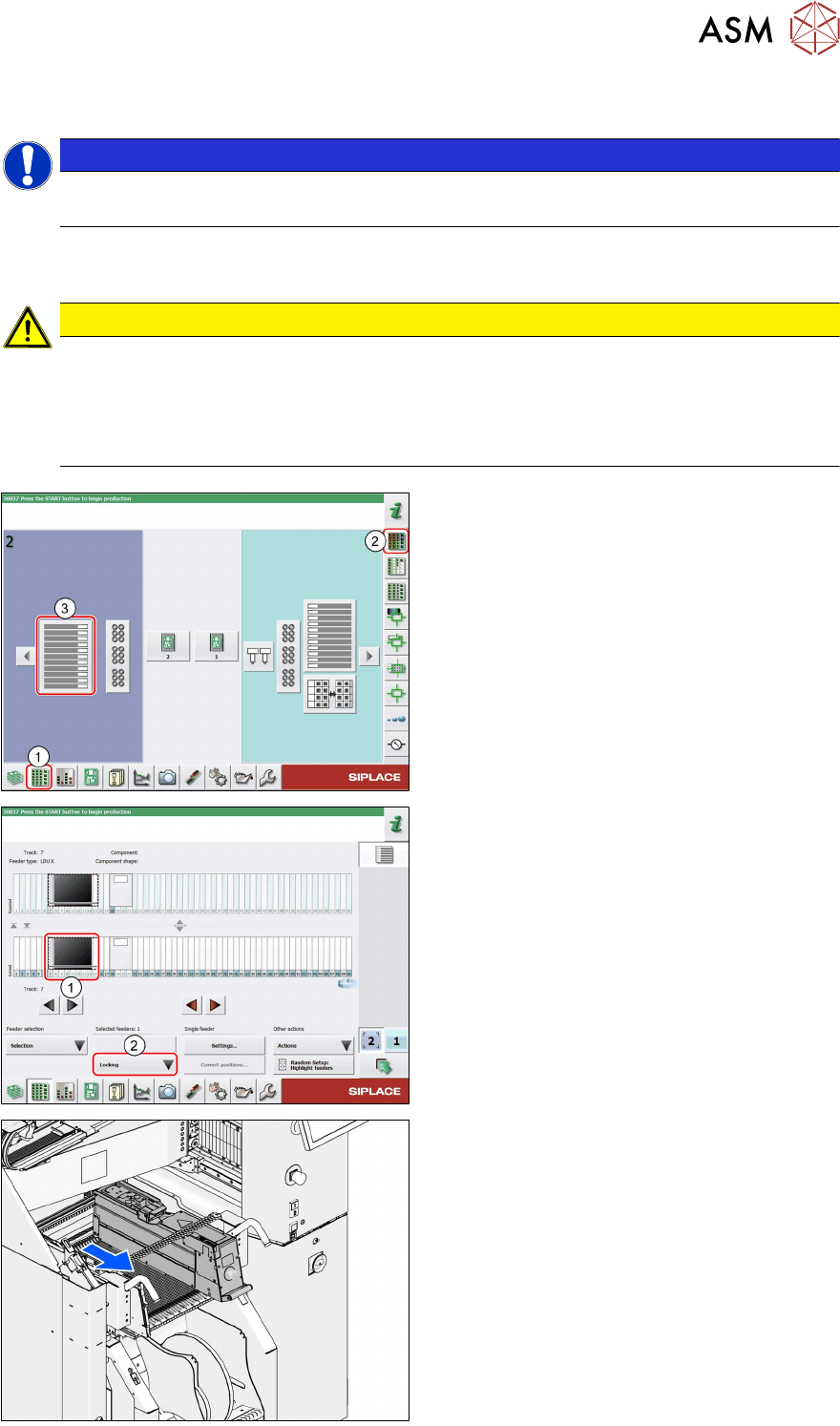

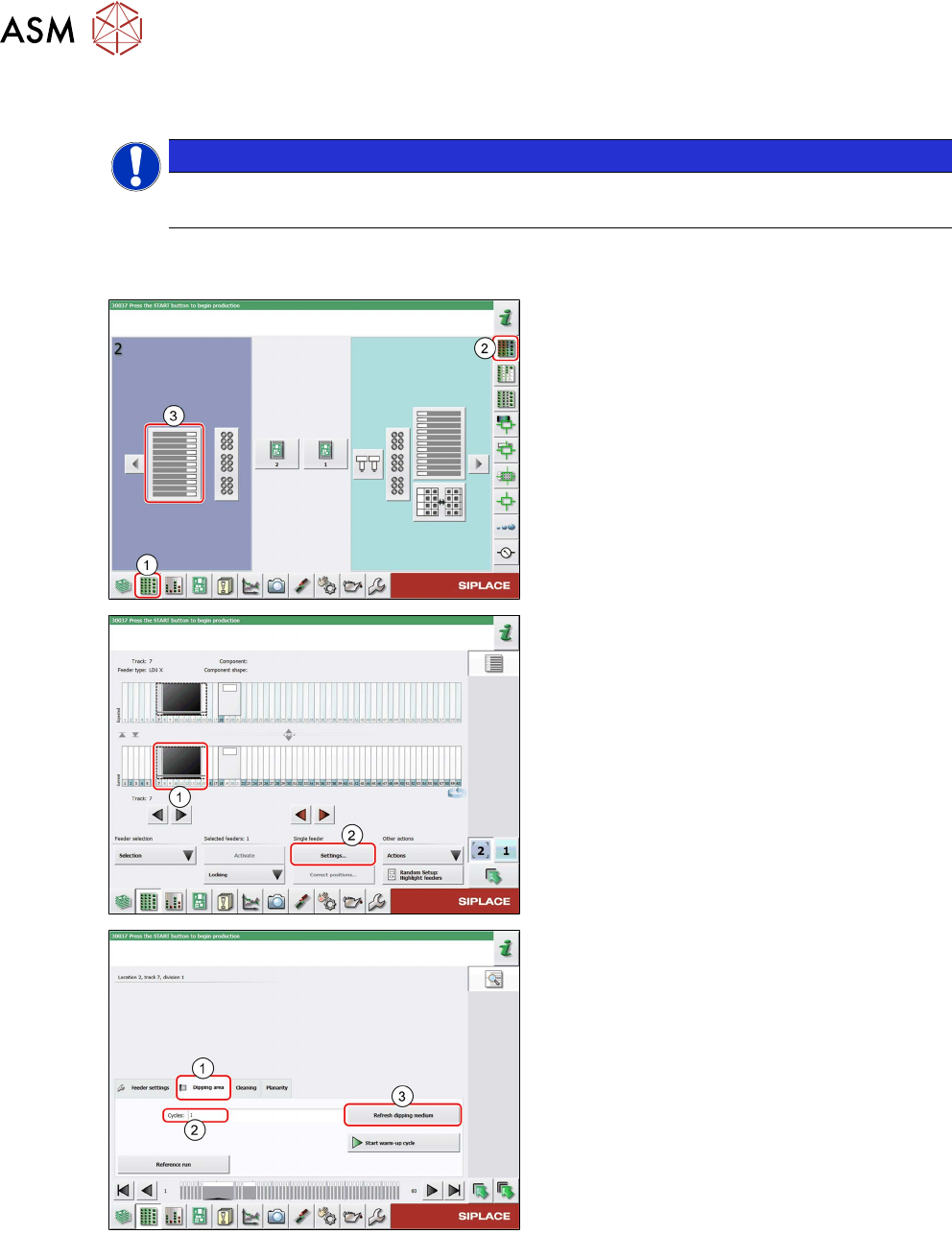

► In the station software, select the Setup
view(1) and then the Locations area (2).
► Select the Table (3) on which the LDU is
set up.
► Select the icon of the LDU(1).
► Click on the Settings... button (2).
► Select the Dipping area tab (1).
► If required, enter the desired number of
squeegee movements to be performed in
the Cycles
field.
► Click on the Refresh dipping medium
button (3).
The LDU performs the set number of squeegee
movements.
4 Operation
4.18 Logging off and removal
User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020 193
4.18 Logging off and removal
NOTICE
Target group: standard operator
The procedure described is a regular task that can be carried out by any trained operator.
The LDU 2 X will be logged off, unlocked and removed from the placement machine like any X-
feeder module.
CAUTION
Danger of tilting or falling down
The LDU2X can tilt or fall down when handled incorrectly during removal from the
changeover table.
► When removing the LDU2X hold it with both hands: take the gripper with one hand
and support the housing with the other hand (see chapter 4.9
"Handling" [}182]).
► In the station software, select the Setup
view(1) and then the Locations area (2).
► Select the Changeover table (3) on which
the LDU is set up.
► Select the icon of the LDU(1).
► Click on the Locking button (2) and select
Unlock
.
The LDU will be logged off and unlocked from
the placement machine.
► Carefully pull the LDU 2 X backwards by
the handle.
4 Operation
4.18 Logging off and removal
194 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020

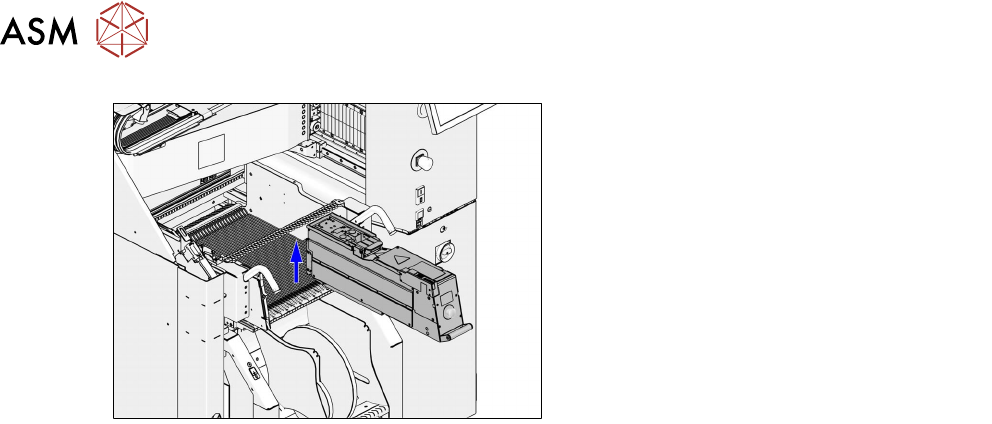

► Remove the LDU 2 X with both hands from
the changeover table.
