5 Cleaning
5.2 Removing the parts to be cleaned
196 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020
5.2 Removing the parts to be cleaned
NOTICE
Observe the exact order
It is important to perform the steps for removal of the parts to be cleaned in the sequence
described here.

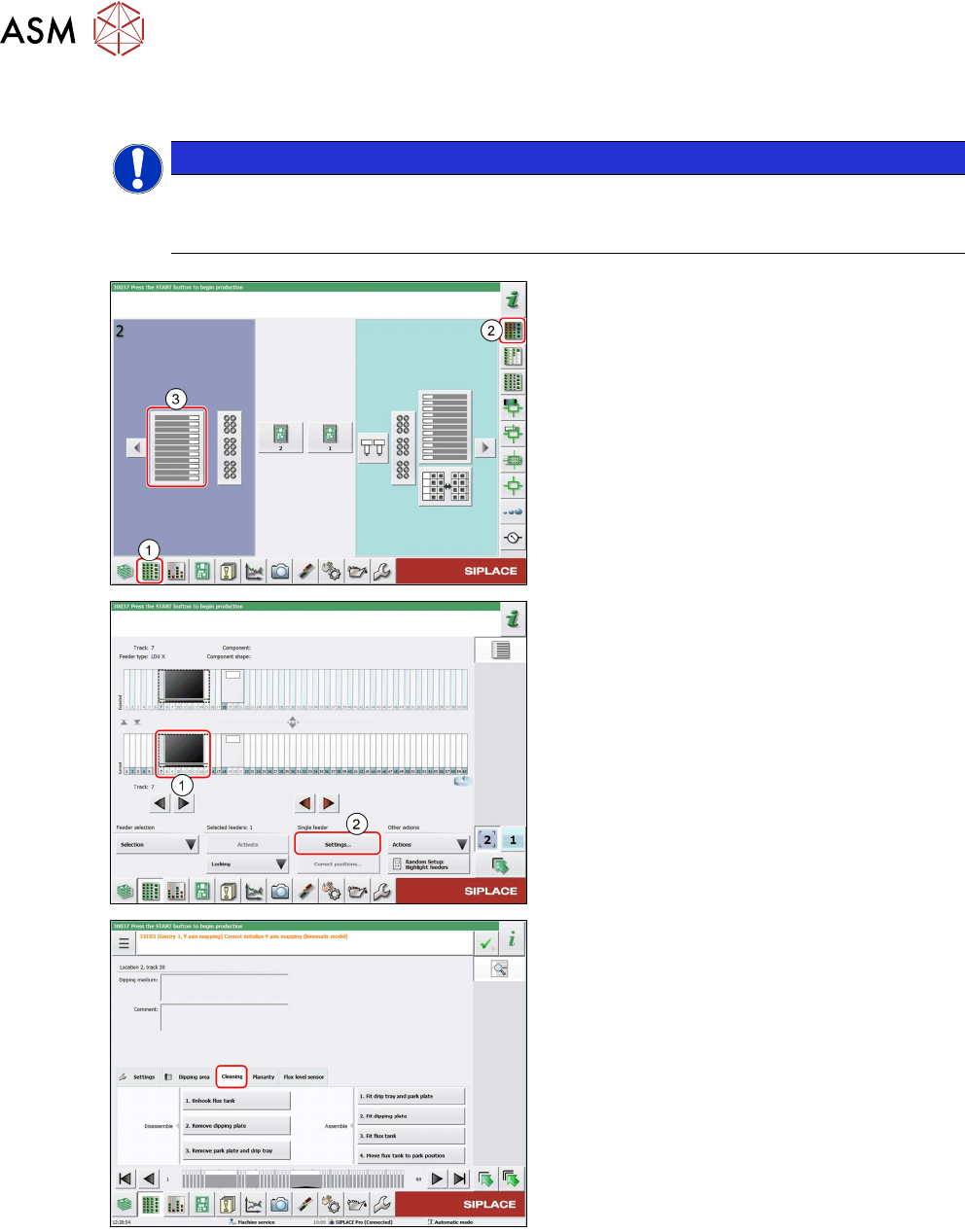

► In the station software, select the Setup
view(1) and then the Locations area (2).
► Select the Table (3) on which the LDU is
set up.
► Select the icon of the LDU(1).
► Click on the Settings... button (2).
► Select the Cleaning tab.
5 Cleaning
5.2 Removing the parts to be cleaned
User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020 197
Releasing the flux tank
Prerequisites: Park plate and dipping plate are fitted.

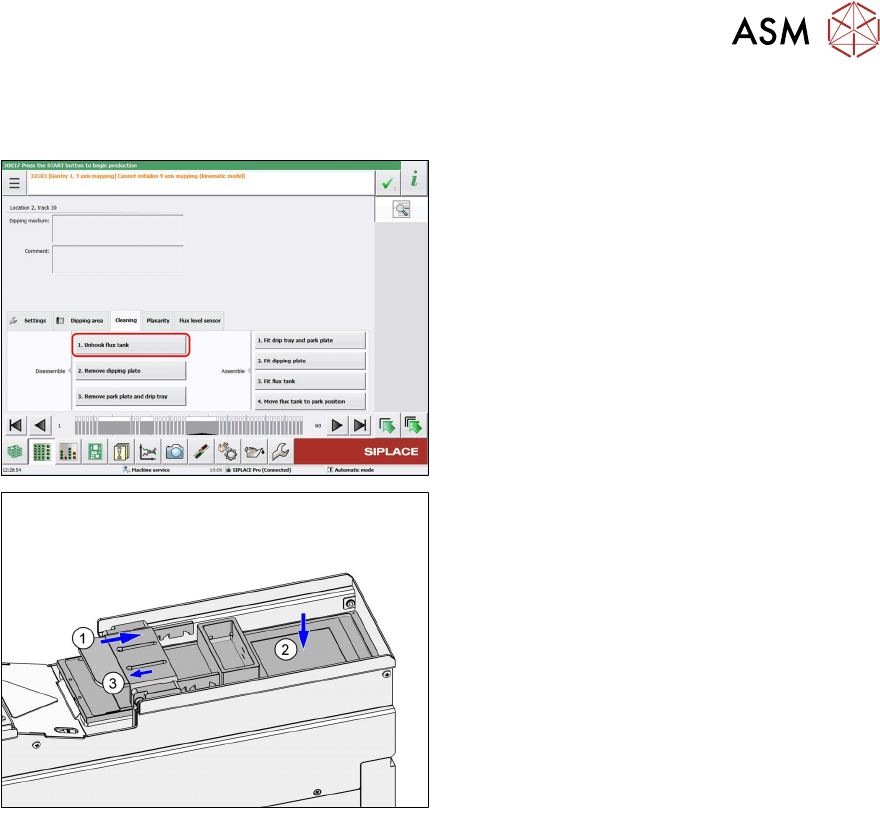

► Click on the Unhook flux tank button.
(1) The LDU moves the squeegee over the dip-
ping plate.
(2) The lifting axis is lowered and the flux tank is
released.
(3) The LDU moves the squeegee slightly back
over the park plate.
► Make sure that the flux tank is completely
released.
5 Cleaning
5.2 Removing the parts to be cleaned
198 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020
Removing the flux tank and the dipping plate
Prerequisites: The park plate and the dipping plate are fitted.

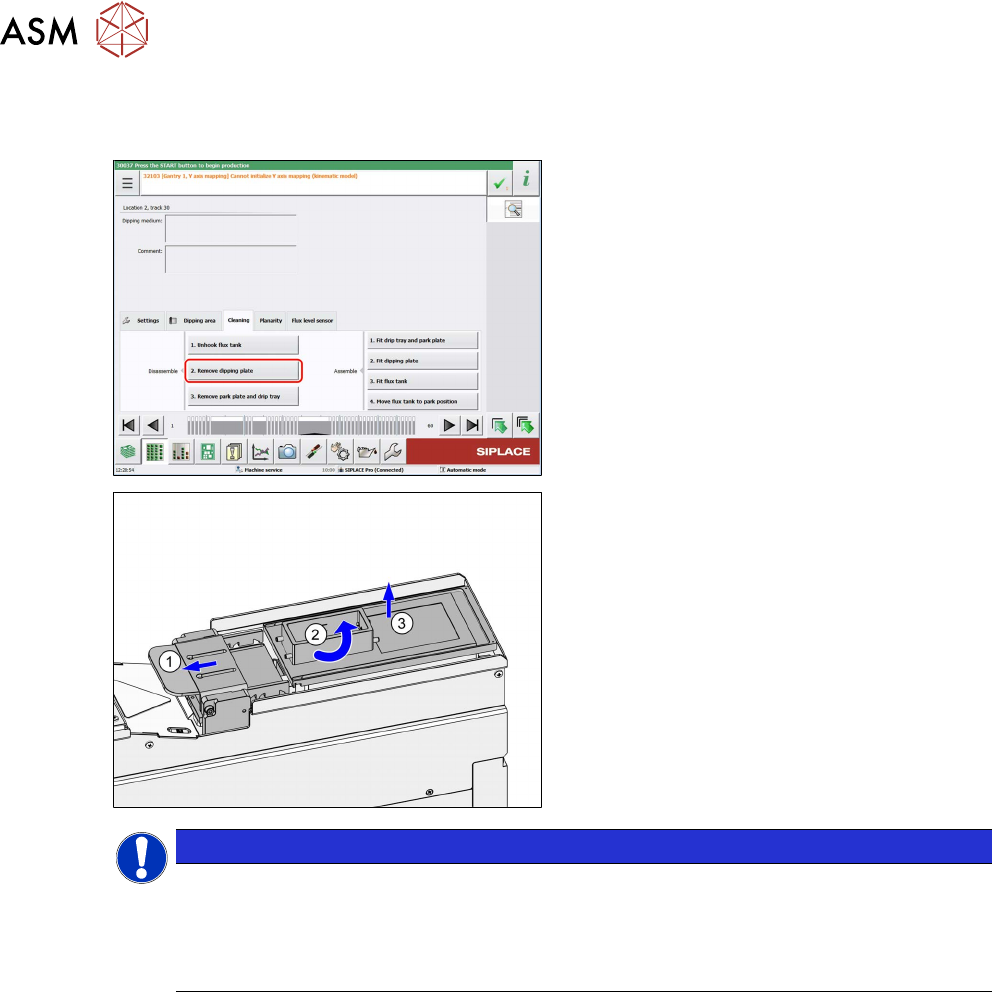

► Click on the Remove dip plate button.
(1) The LDU moves the squeegee back over the
park plate and the dipping plate with the flux
tank is lifted.
(2) Rotate the flux tank on the dipping plate by
approx. 90°.
(3) Remove the dipping plate together with the
flux tank.
NOTICE
Avoid leakage of flux
When removing the flux tank and the dipping plate leave the flux tank on the dipping plate
so that remaining flux cannot leak out of the flux tank and contaminate the LDU. The remo-
val is easier when you rotate the flux tank on the dipping plate by approx. 90° without lifting
it.
