4 Operation
4.3 Setting the zero position of the dipping plate
168 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020

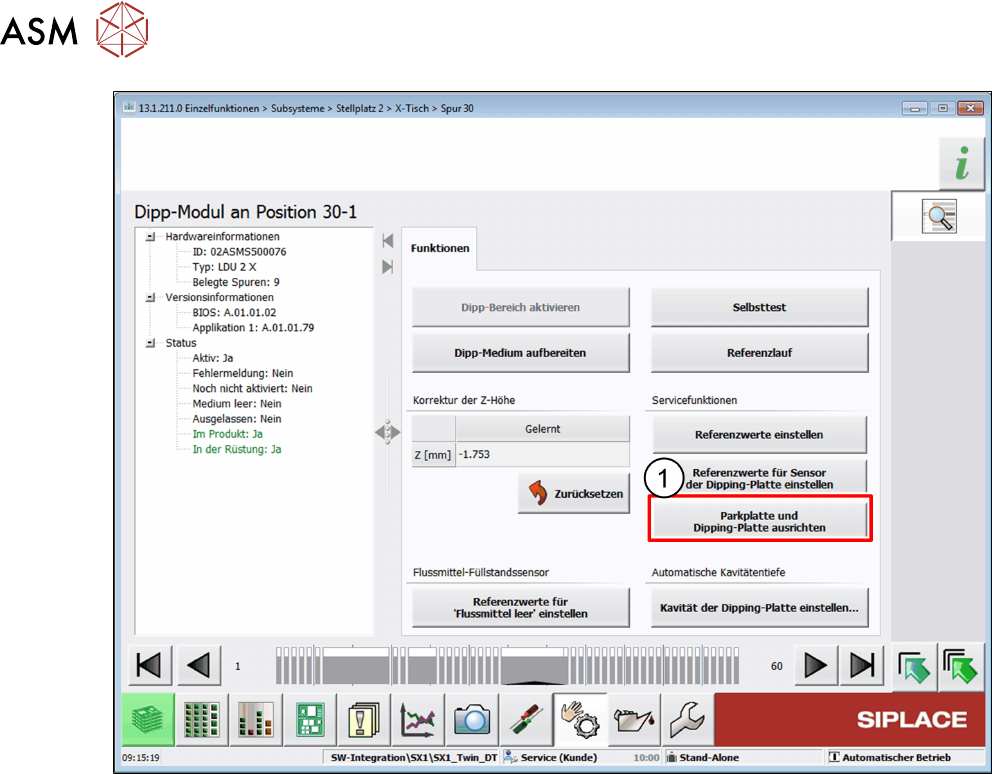

► Click on the Align park plate and dipping plate button(1).
4 Operation
4.3 Setting the zero position of the dipping plate
User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020 169

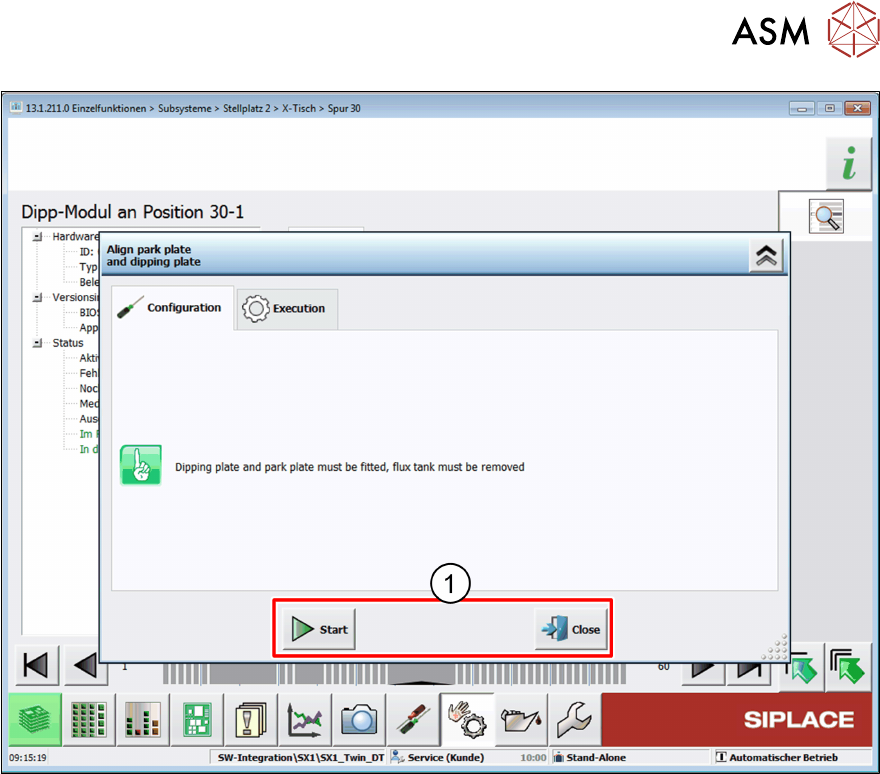

Click on one of the following buttons(1):
●
Click on the Start button to start the alignment procedure.
●
Click on the Close button to exit the alignment procedure.
4 Operation
4.3 Setting the zero position of the dipping plate
170 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020

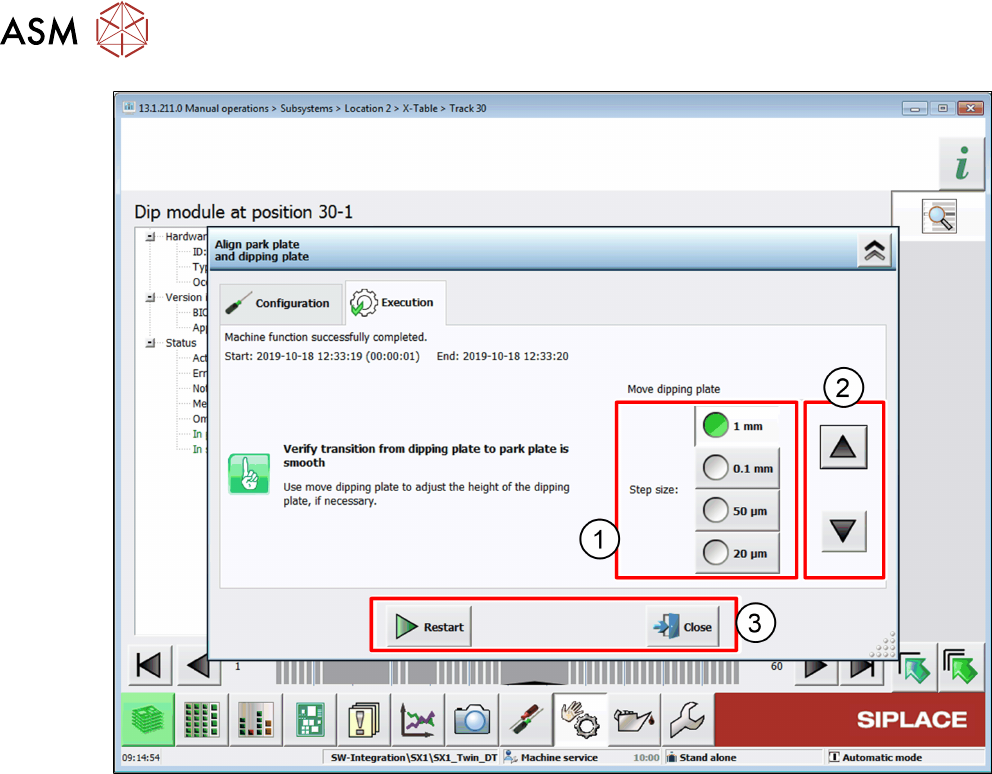

► Select a suitable step size(1).
► Click on the arrow buttons(2) to move the dipping plate up or down until the dipping plate is
exactly level to the park plate.
► Click on one of the following buttons(3):
●
Click on the Restart button to reset all values and restart the alignment procedure.
●
Click on the Close button to exit the alignment procedure without saving the values.
●
Click on the Accept buttonto exit the alignment procedure and save the values.
