5 Cleaning
5.4 Refitting the cleaned parts
User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020 203

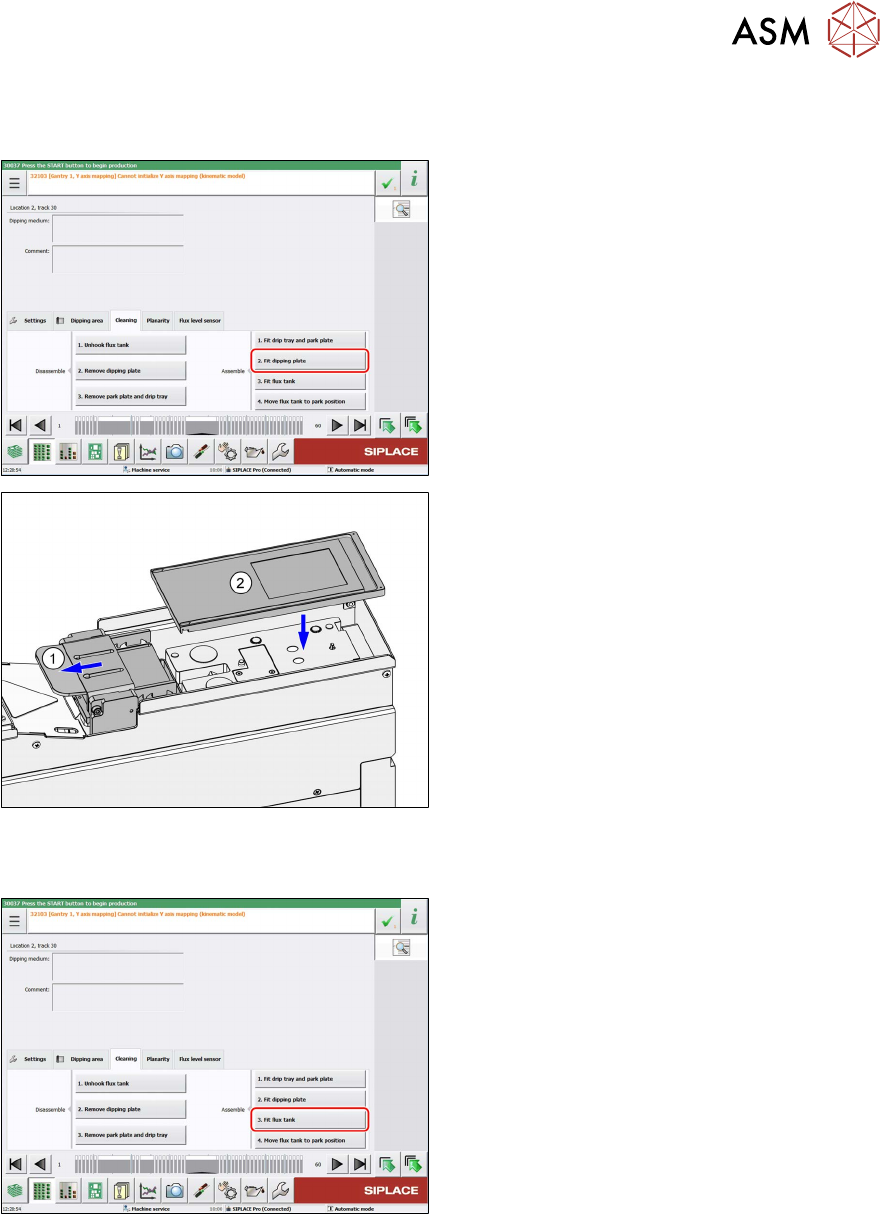

Fitting the dipping plate
Prerequisites: The drip tray and the park plate are fitted. The dipping plate is not yet fitted.
► Click on the Fit dip plate button.
(1) The LDU moves the squeegee back over the
park plate and moves the lifting axis up.
► (2) Fit the dipping plate in the orientation
shown.
Fitting the flux tank
Prerequisites: The park plate and the dipping plate are fitted.
► Click on the Fit flux tank button.
5 Cleaning
5.4 Refitting the cleaned parts
204 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020

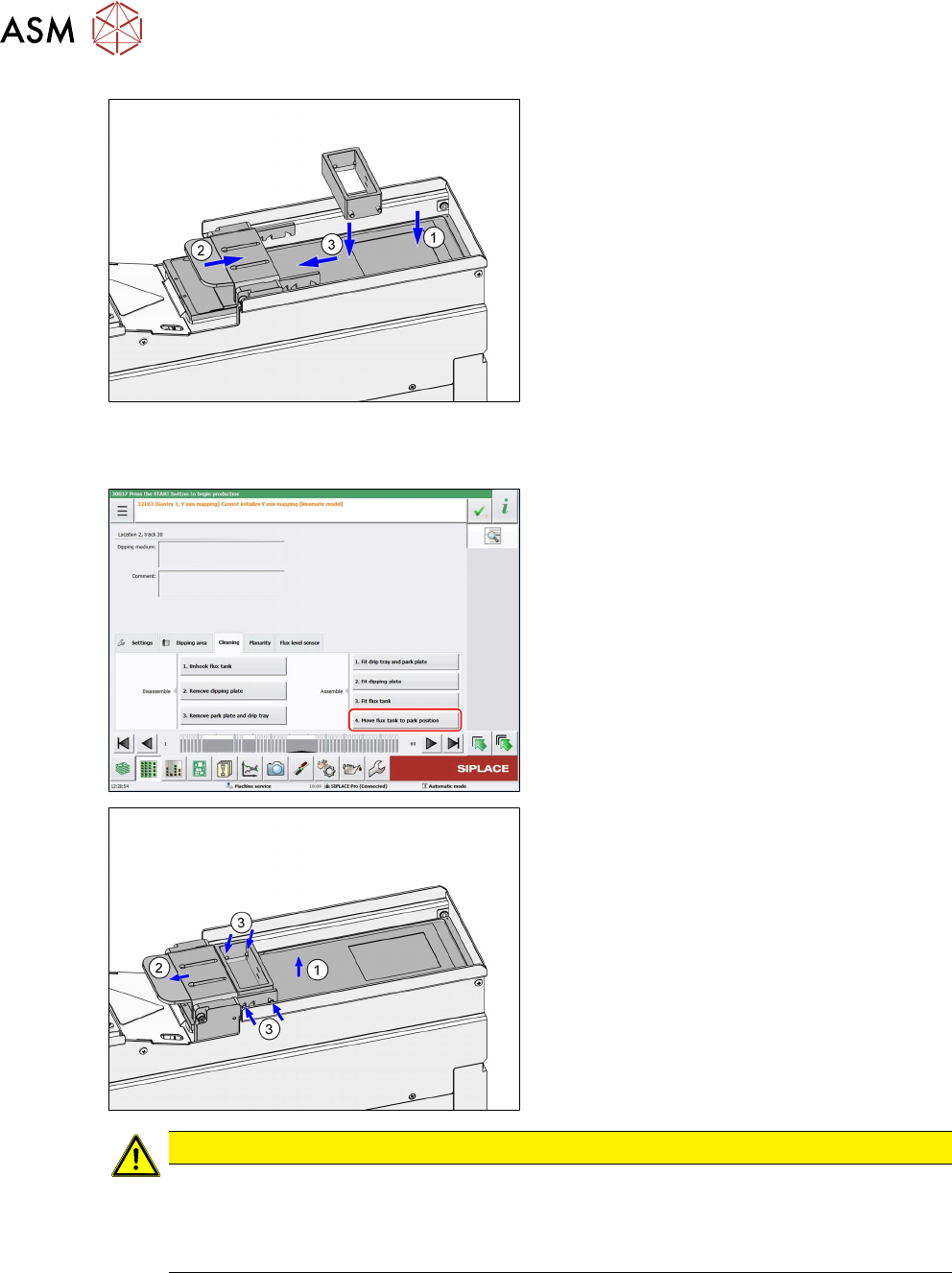

(1) The LDU moves the lifting axis down.
(2) The LDU moves the squeegee to the front.
► (3) Place the flux tank onto the dipping
plate and push it under the downholder to
the fixed stop.
When using a small flux tank, the orientation
is important: the thicker wall of the flux tank
should point towards the park plate.
Moving the flux tank to the park position
Prerequisites: The park plate and the dipping plate are fitted.
► Click on the Move flux tank to park posi-
tion button.
(1) The LDU moves the lifting axis to the zero
position while the downholder locks the flux
tank.
(2) The LDU moves the squeegee back over the
park plate.
► (3) Ensure that the four pins of the flux
tank engage correctly in the retaining
clamp of the downholder.
CAUTION
Damage to the surfaces when operating without flux.
If you operate the LDU without flux, there is a risk that the flux tank and plates may scrape
against one another. The flux acts as lubrication for these parts.
► Always use flux when operating the LDU.
205User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020
目录
目录
1 前言.. 209
1.1 模块说明.. 209
1.1.1 欧盟符合性声明.. 209
1.1.2 正确使用.. 209
1.1.3 错误使用.. 209
1.1.4 要求和限制.. 210
1.1.5 技术数据.. 210
1.1.6 材料和元件的环保处理.. 210
1.1.7 电磁兼容性 （EMC）.. 211
1.1.8 使用 SIPLACE 的原装附件和零备件.. 211
1.2 关于本用户手册的重要说明.. 211
1.2.1 本用户手册的内容和存放.. 211
1.2.2 危险提示.. 211
1.2.3 制造商/供应商的责任.. 211
1.2.4 版本历史.. 211
1.2.5 更多信息.. 212
1.2.5.1 如何获得信息.. 212
1.2.5.2 万维网 (WWW) 上的 SIPLACE.. 212
2 操作安全.. 213
2.1 安全须知.. 213
2.1.1 安全须知和符号的使用规范.. 213
2.1.2 安全操作的重要说明.. 214
2.1.2.1 一般信息.. 214
2.1.2.2 操作人员和其他人员的安全.. 214
2.1.2.3 工厂和设备的安全.. 214
2.1.3 员工资质和培训.. 215
2.1.4 注意挤压危险.. 215
2.1.5 运输安全信息.. 216
2.2 警告标签.. 217
2.2.1 LDU 上的警告标签.. 217
2.2.2 关于警告、禁止和提醒标签的重要说明.. 218
2.3 安全功能.. 218
2.4 ESD 使用说明.. 219
2.4.1 ESD 代表什么？.. 219
2.4.2 防止静电充电重要措施.. 219
2.4.3 如何处理 ESD 模块.. 219
2.4.4 对 ESD 模块的测量与修改.. 219
2.4.5 派送 ESD 模块.. 220
