4 Operation
4.1 Settings in SIPLACE Pro
150 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020

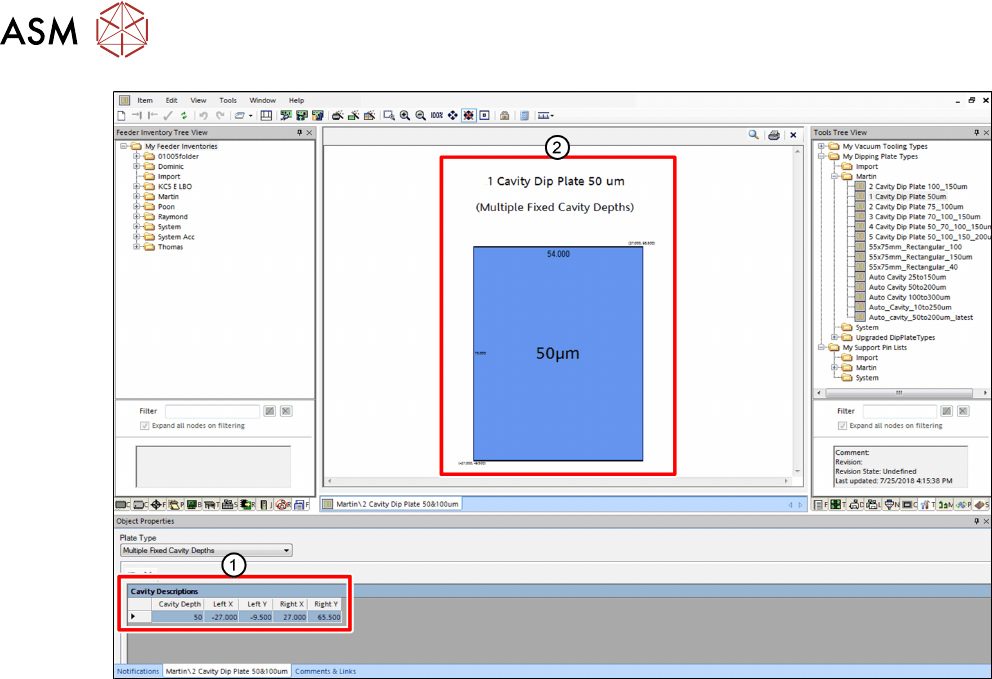

► Enter the appropriate coordinates and the cavity depth in the corresponding fields(1).
Cavity Depth: Depth of the cavity
Left X / Left Y: Lower left corner of the cavity
Right X / Right Y: Upper right corner of the cavity
The coordinates and the depth of the cavity are displayed in the display area(2).
4 Operation
4.1 Settings in SIPLACE Pro
User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020 151

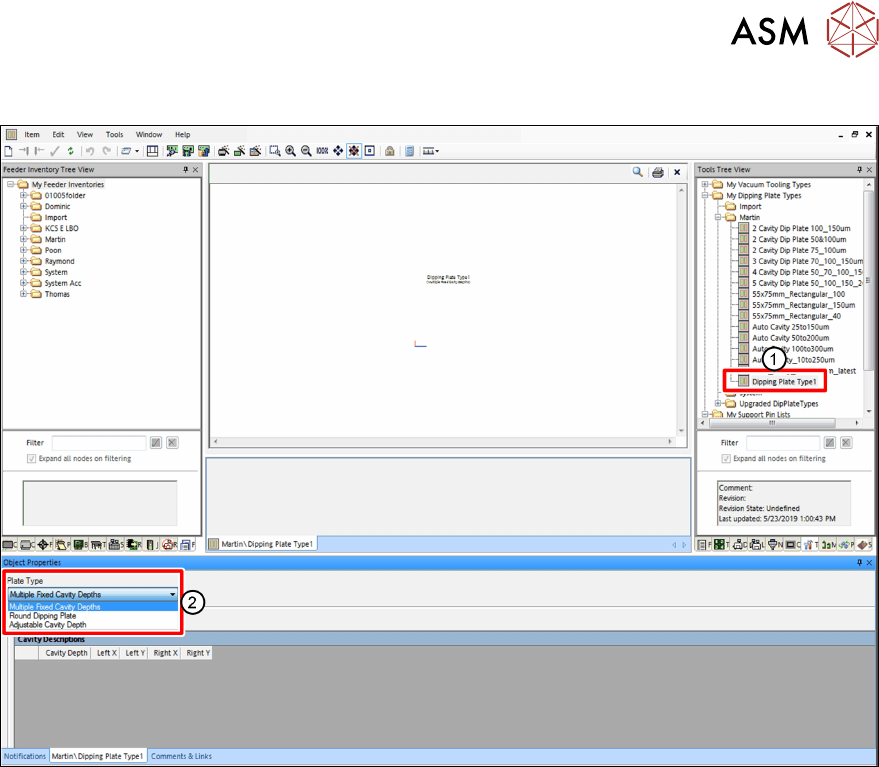

Defining a dipping plate with multiple cavities
► In the Tools Tree View, select the dipping plate to be defined(1).
► In the Object Properties area, select Multiple Fixed Cavity Depths from the Plate Type
menu(2).
4 Operation
4.1 Settings in SIPLACE Pro
152 User Manual / Bedienungsanleitung / 用户手册 SIPLACE Linear Dipping Unit 2 X 05/2020

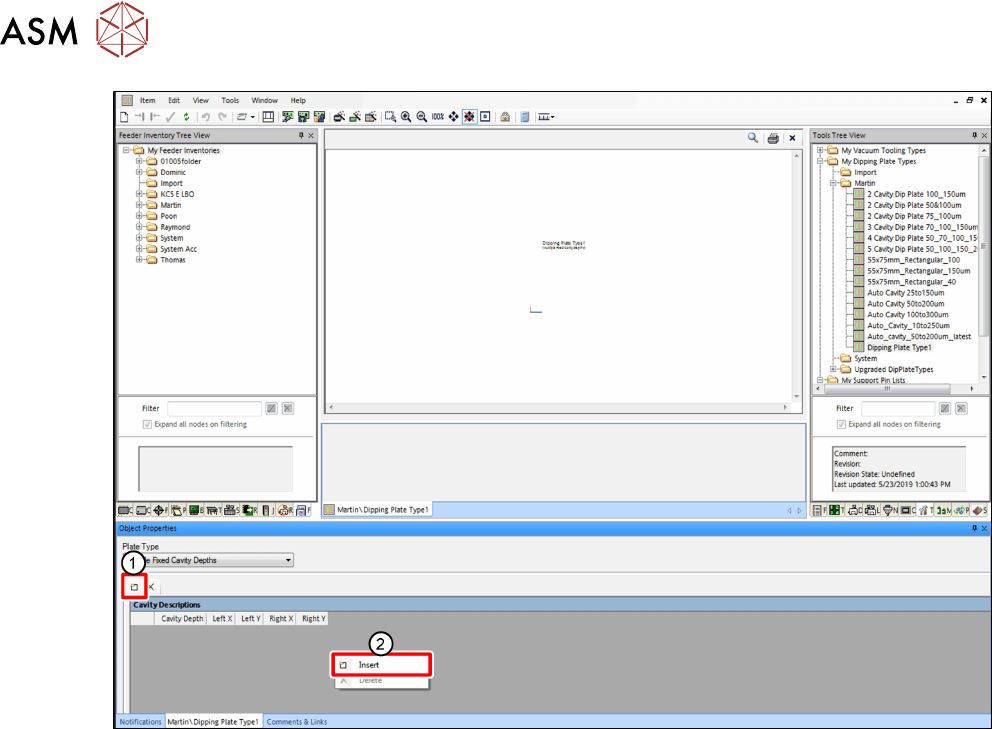

► Click on the Insert icon(1) or, alternatively, right-click on the gray area and select Insert from
the menu(2)
.
A new row representing a cavity is inserted in the table.
► Repeat this step to insert multiple rows (cavities) to the table.
