4. S-Tool: Setup Navi
4.1 Program selection corresponding to the production lot
When selecting the production lot from the program list, the setup of the target board program
can be performed.
4.1.1 Introduction
4.1.1.1 Preparations
When performing the production lot operation, it is necessary to add the production lot to
the program list.
* For details about how to add the production lot to the program list, see “3. P-Tool: Program
List Editor”.
4.1.1.2 Settings

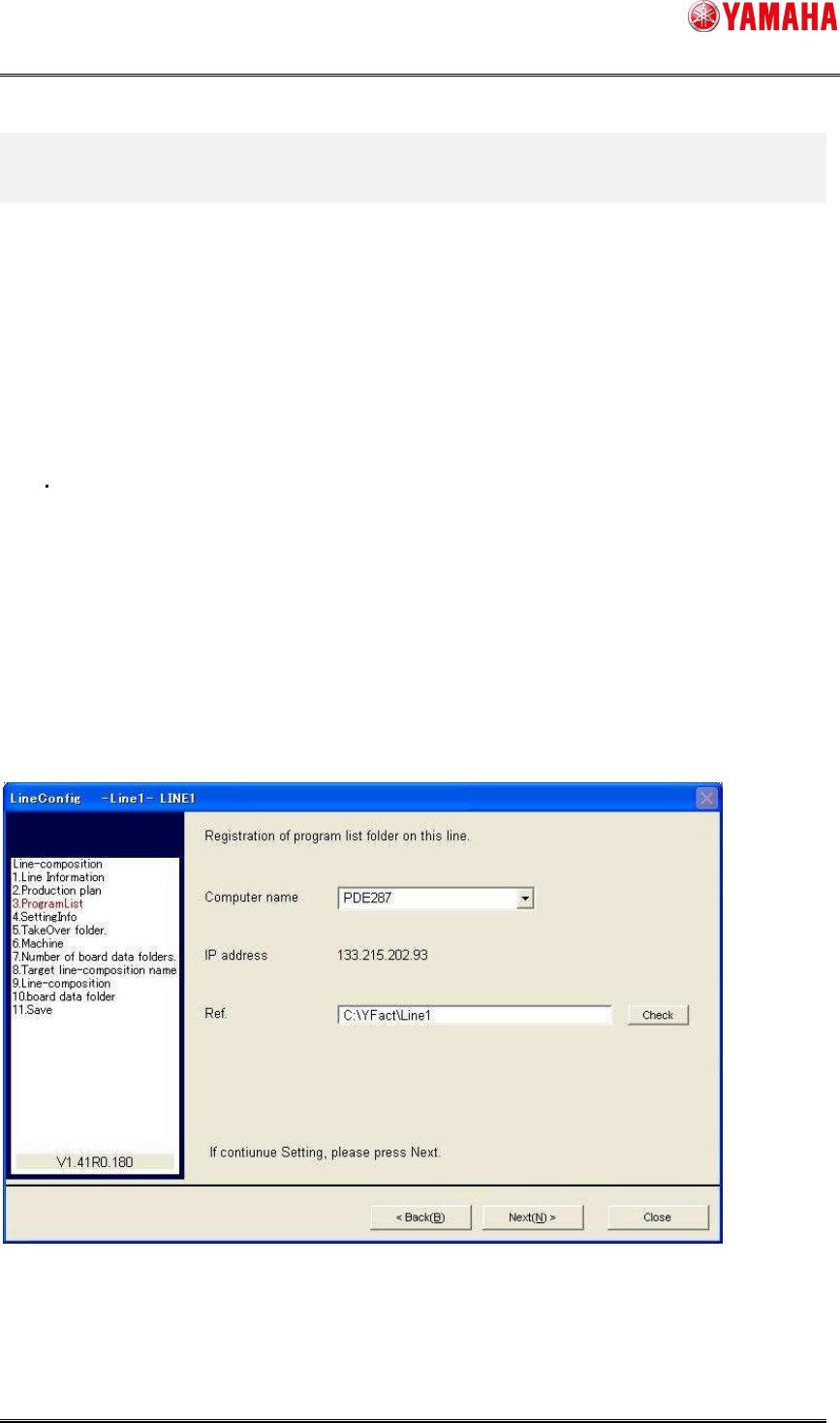

To allow the program list to be referred to through Setup Navi that is created using “3. P-Tool:
Program List Editor”, set the program line reference destination of each line using Line Config.
* For details about Line Config, see the “Server Utility Software User’s Manual”.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
21/62
Item name Contents
Computer name Computer name of the PC that stores the program list.
Ref. Local path of the folder, into which the program list is saved.
To make the selection with the computer name, this PC needs to be registered in Line Config.
To register the PC into Line Config, “IT-System Client” needs to be installed into the PC.
* For details, see the “IT-System Configuration Manual”.
Recommended setting
Item name Contents
Computer name Computer name of the PC, into which P-Tool has been installed.
Ref. Line folder of relevant line in the installation folder
Example) C:¥YFacT¥Line1
Program List Editor of P-Tool creates the program list in the line folder. As the line folder of
P-Tool is specified as reference destination, it can be interlock-used.
4.1.2 Operation procedure

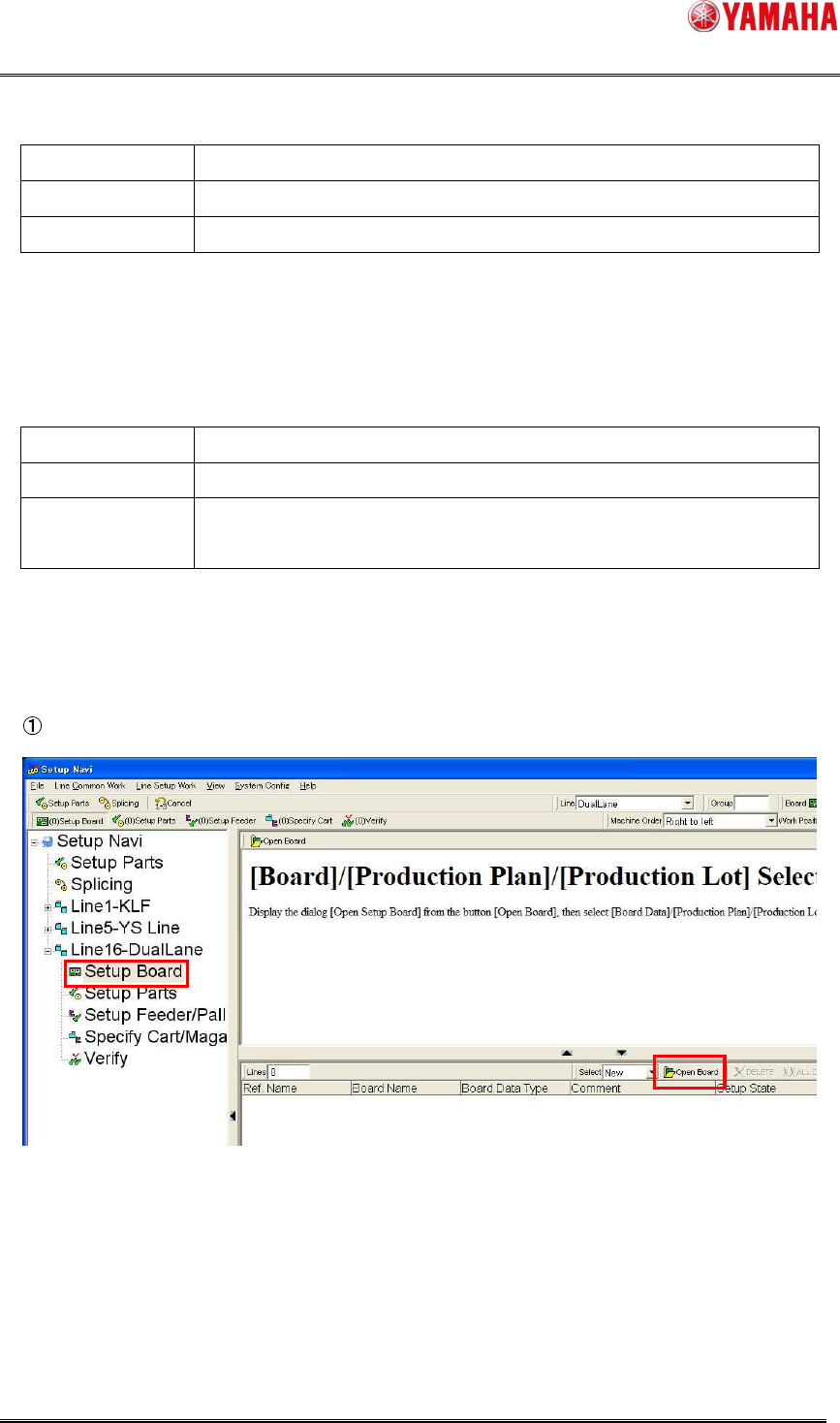

Click [Setup Board]-[Open Board] button for a line you want to perform the setup.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
22/62

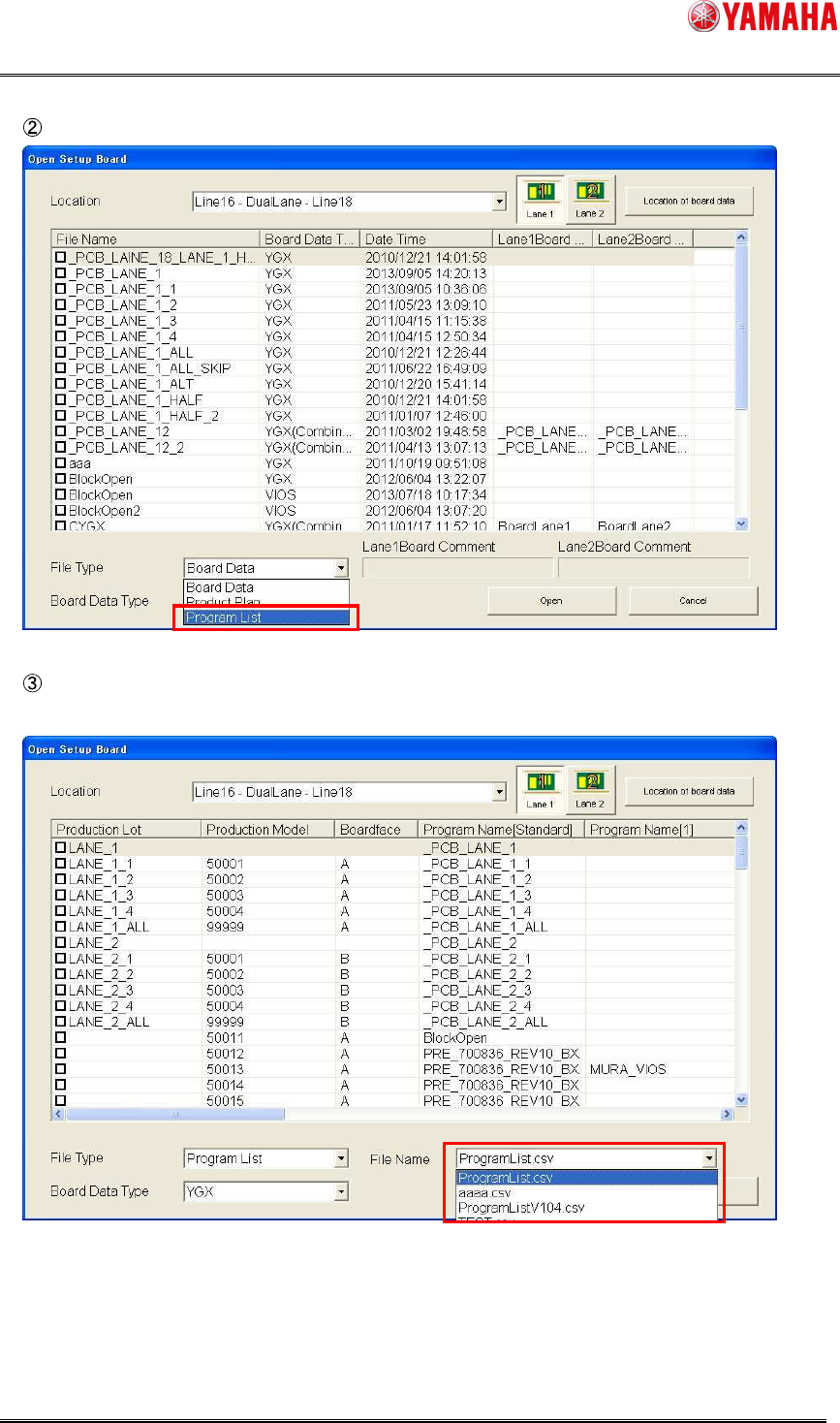

Select “Program List” in the “BoardData Type” combo-box.
The contents of the program list (ProgramList.csv) at the program list reference destination
are displayed.
To display other program list, select “Program List” in the “File Name” combo-box.
* The files with file extension “.csv” that exist at the program list reference destination are
selectable.
