SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
52/62
When the production lot operation is enabled, the layout of the [Setup] window changes, and
production lot and a production model and surface info come to be displayed.
Single lane
Dual lane
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
53/62
5.3.2 Operation procedure
5.3.2.1 KANBAN
When the production lot is read using the handy type reader (barcode reader or 2D barcode
reader) in the top machine of the line, the machine automatically changes the board program.
Furthermore, when the downstream machine operates in the “take over” mode, the board
program of the overall line is changed as the downstream machine takes over the production lot.

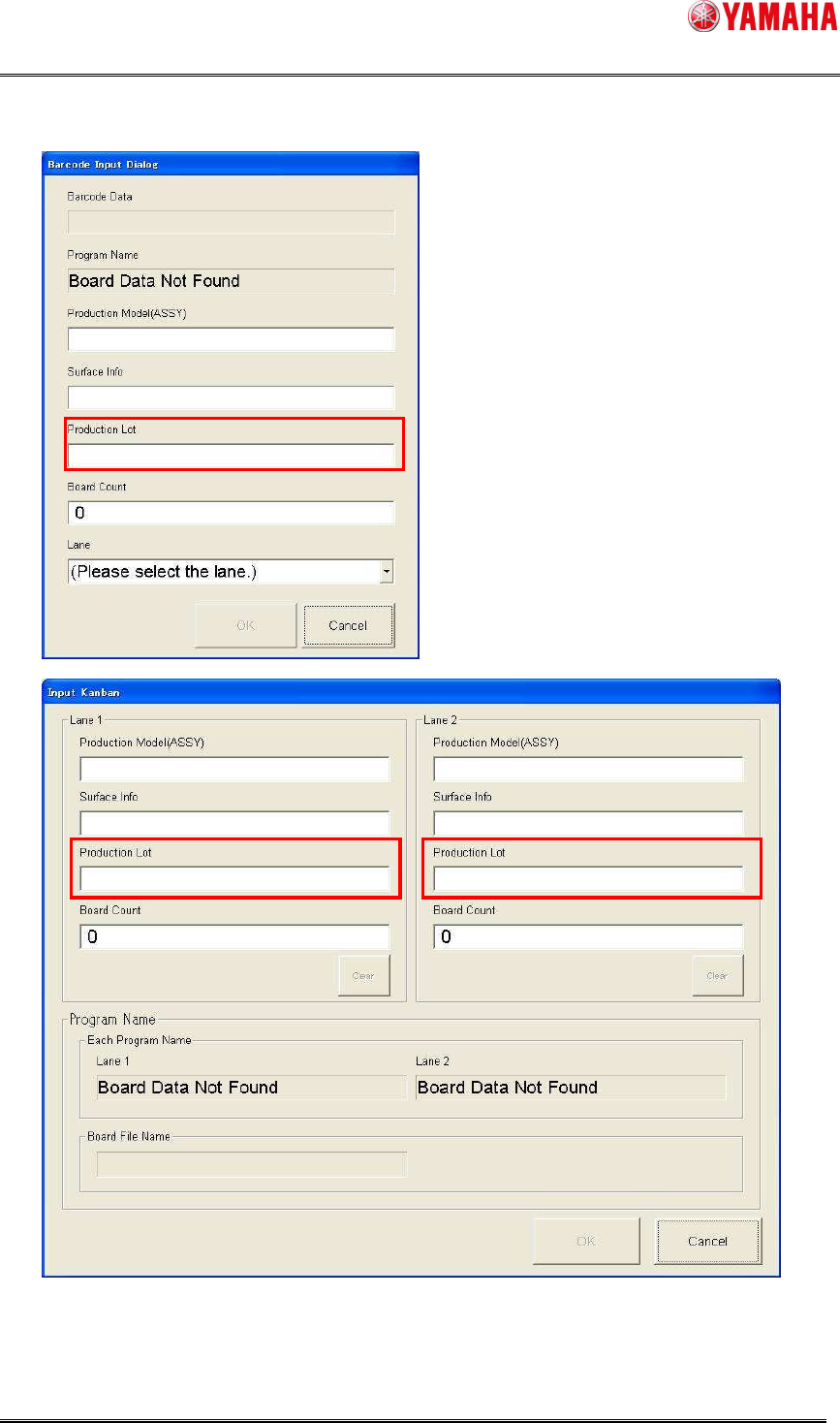

The contents of the read production lot are displayed in the dialog box.
Additionally, the production lot can be edited directly.
Single lane machine
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
54/62
Dual lane machine
