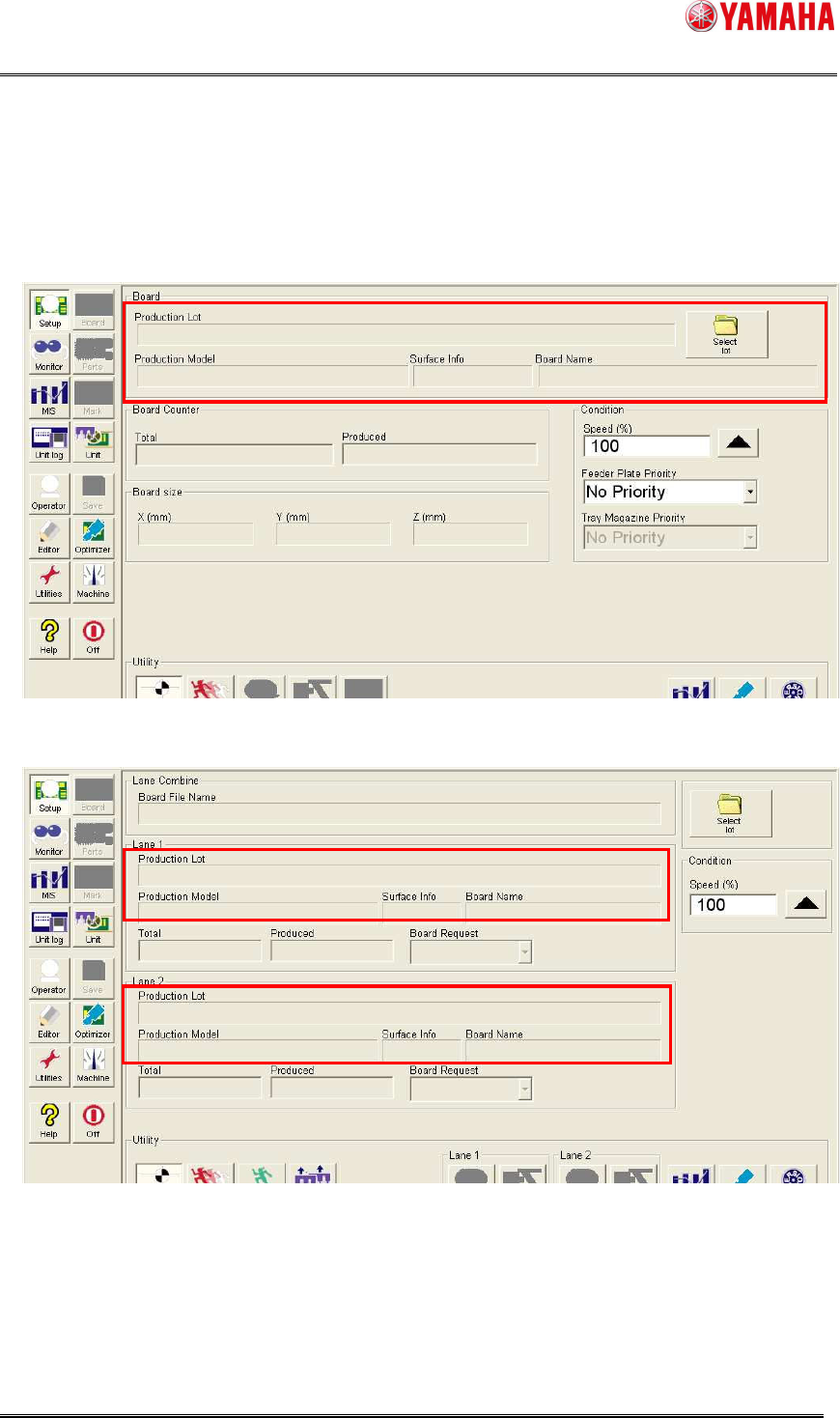

When the production lot operation is enabled, the layout of the [Setup] window changes, and
production lot and a production model and surface info come to be displayed.
Single lane
Dual lane
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
36/62
5.1.2 Operation procedure
5.1.2.1 Production lot selection
To instruct the operation in units of production lots, specify a target production lot from the
program list.

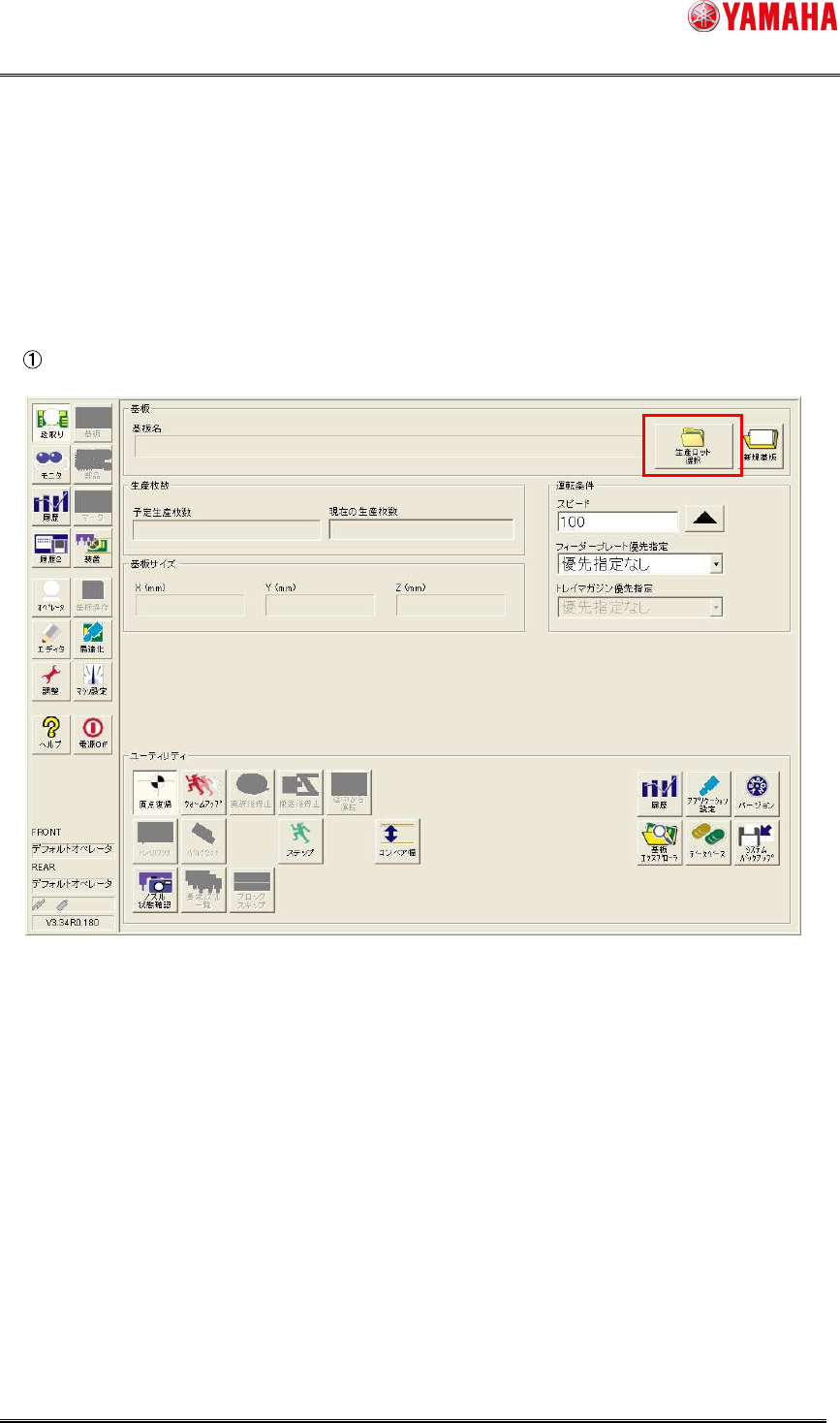

Click [Setup] - [Select lot] button.
The “Board data select” dialog box will appear. Then, the “Select production lot” dialog box
automatically appears above it.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
37/62

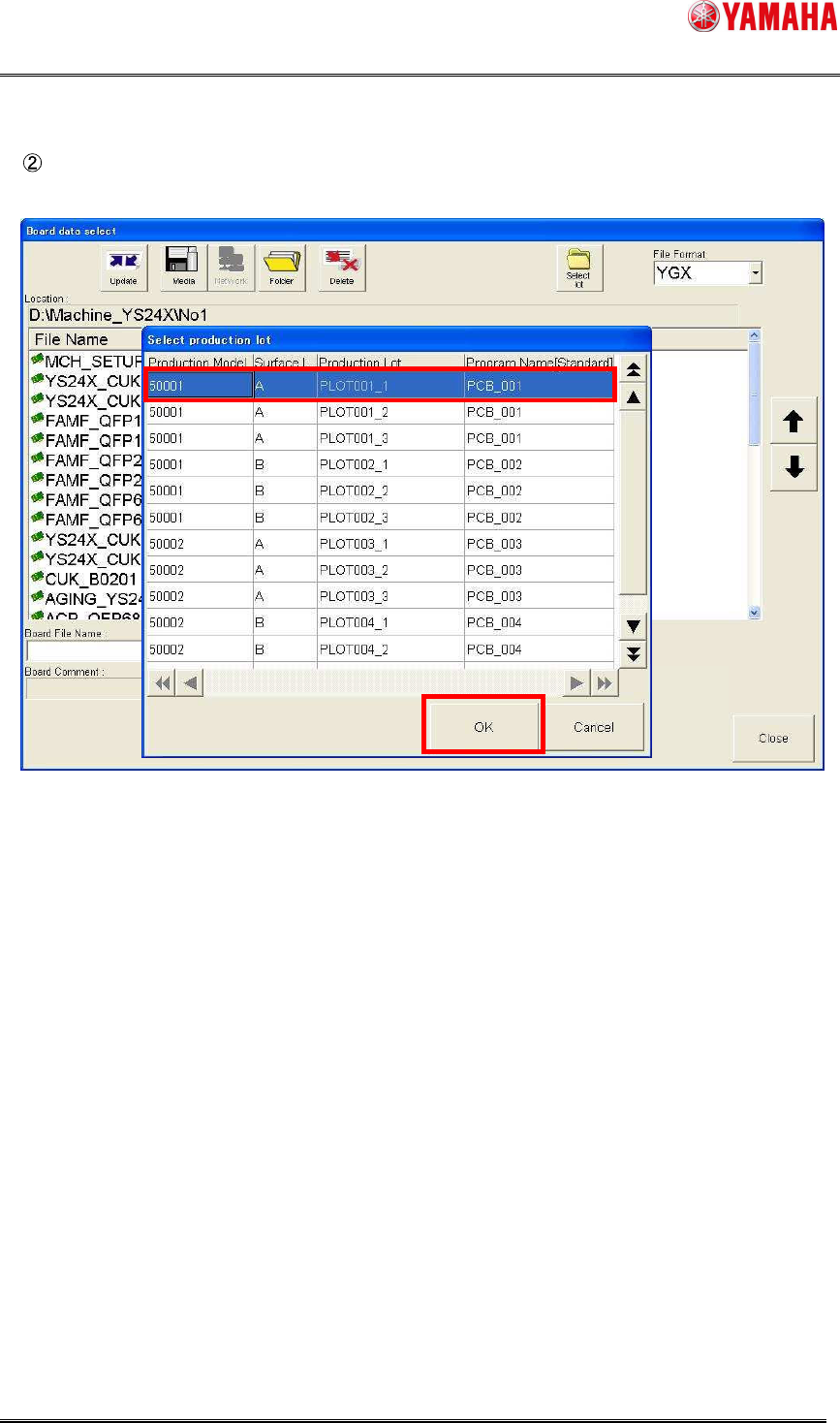

In the “Select production lot” dialog box, select a production lot you want to produce, and
then click the [OK] button.
The board program with the file format and location displayed in the “Board data select” dialog
box is loaded.
When changing the file format or location;
Click the [Cancel] button to close the “Select production lot” dialog box, and then change the
file format or location in the “Board data select” dialog box.
Clicking the [Select lot] button in the “Board data select” dialog box will display the “Select
production lot” dialog box again.
