5.3 “OP003: Auto Pgm Change Over” corresponding to the
production lot
In the Auto Pgm Change Over function, the board program can be changed using the
production lot.
The production lot was added to the program allocation conditions.
Allocation conditions Allocation results
Production Lot Programs meeting “Production Lot”.
Production Model (ASSY) + Surface
Info + Production Lot
Programs meeting “Production Model (ASSY)”,
“Surface Info”, and “Production Lot”.
Production Model (ASSY) + Surface
Info
Programs meeting “Production Model (ASSY)” and
“Surface Info”.
* Existing operation
The data is searched for in order from the top of the program list.
When there are multiple allocation results, the program that satisfies the conditions first is
used.
* For details about the “Auto Pgm Change Over” function, see the “IT Option Auto Pgm
Change Over User’s Manual”.
5.3.1 Introduction
5.3.1.1 Preparations
When performing the production lot operation, it is necessary to change the option setting
file (OP003.ini) to the applicable version.
* When the old version is used continuously, the setting of the production lot operation
cannot be changed. In this case, the system operates with the production lot operation set at
“OFF”.
When performing the production lot operation, it is necessary to add the production lot to the
program list.
* For details about how to add the production lot to the program list, see “3. P-Tool: Program
List Editor”.
When performing the production lot operation, the production lot is added to the code format
for the “Auto Pgm Change Over” function.
* For details about how to change the code format, see the Server Utility Software User’s
Manual.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
48/62
* The extract data type name of the code format for the Auto Pgm Change Over function was
partially changed.

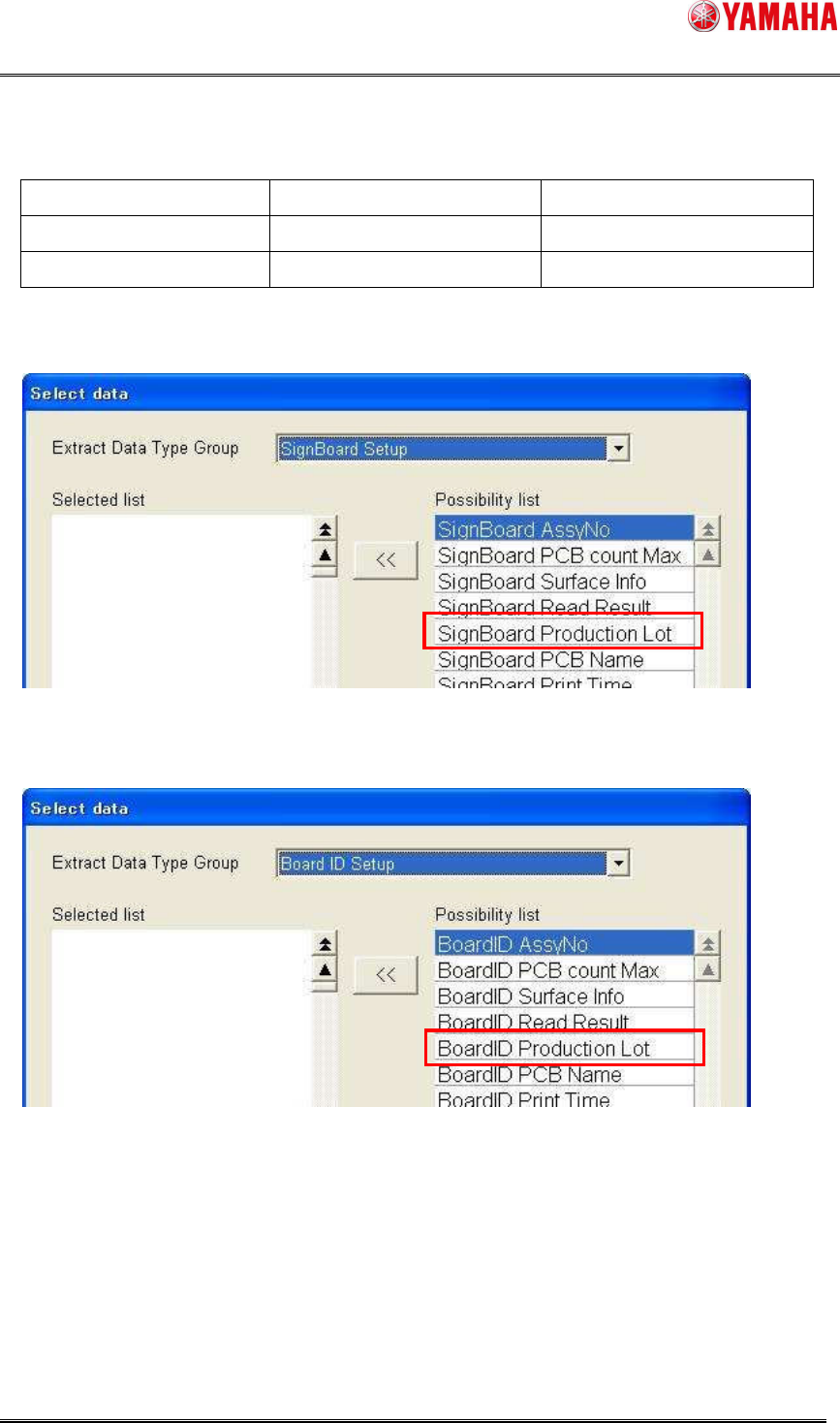

Extract Data Type Group New name Old name
Sign Board Setup Sign Board Production Lot Sign Board Lot Name
Board ID Setup Board ID Production Lot Board ID Lot Name
[ID Editor]-[Register ID Format]-[Specify Reading Data]-[Select Data]-[Sign Board Setup]
[ID Editor]-[Register ID Format]-[Specify Reading Data]-[Select Data]-[Board ID Setup]
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
49/62
5.3.1.2 Settings
When using “OP003: Auto Pgm Change Over”, the program list reference destination setting
procedure may vary from normal procedure. The “Auto Pgm Change Over” function operates
according to the contents set in Line Config of the IT-System Server. These settings are common
to “S-Tool: Setup Navi”.

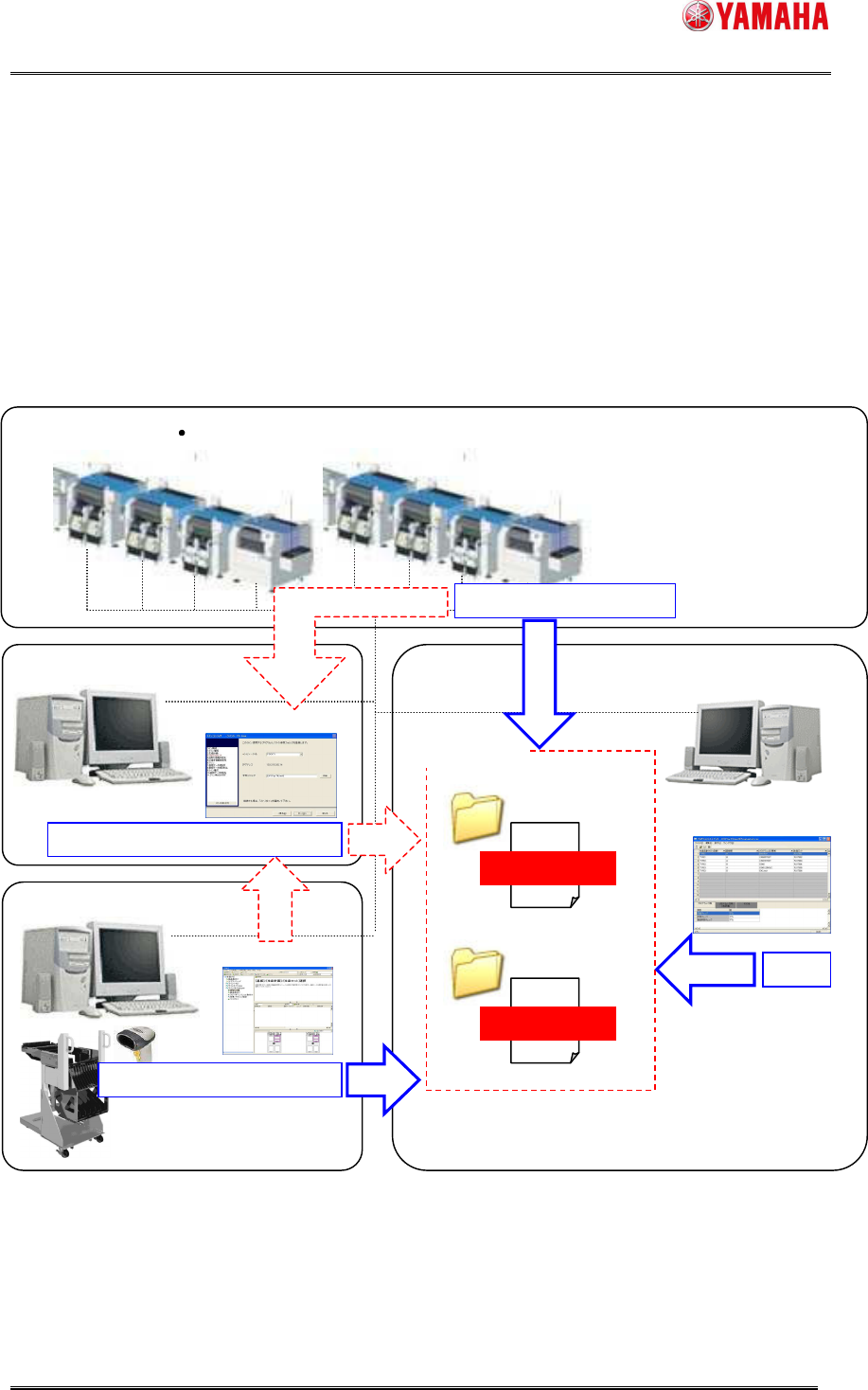

Conceptual diagram
Y.FacT: P
-Tool
IT-System Server
Y.FacT: S
-Tool
Setup Navi
Program List Editor
Line Config
Production lot selection
Reference destination setting
Edit
Production lot selection
Program list
Production lot
Line 1
Program list
Production lot
Line 2
Line (mounter printer)
Line folder
Path and file name setting
