In the “Select production lot” dialog box, select a production lot you want to produce, and
then click the [OK] button.
The board program with the file format and location displayed in the “Board data select” dialog
box is loaded.
When changing the file format or location;
Click the [Cancel] button to close the “Select production lot” dialog box, and then change the
file format or location in the “Board data select” dialog box.
Clicking the [Select lot] button in the “Board data select” dialog box will display the “Select
production lot” dialog box again.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
38/62

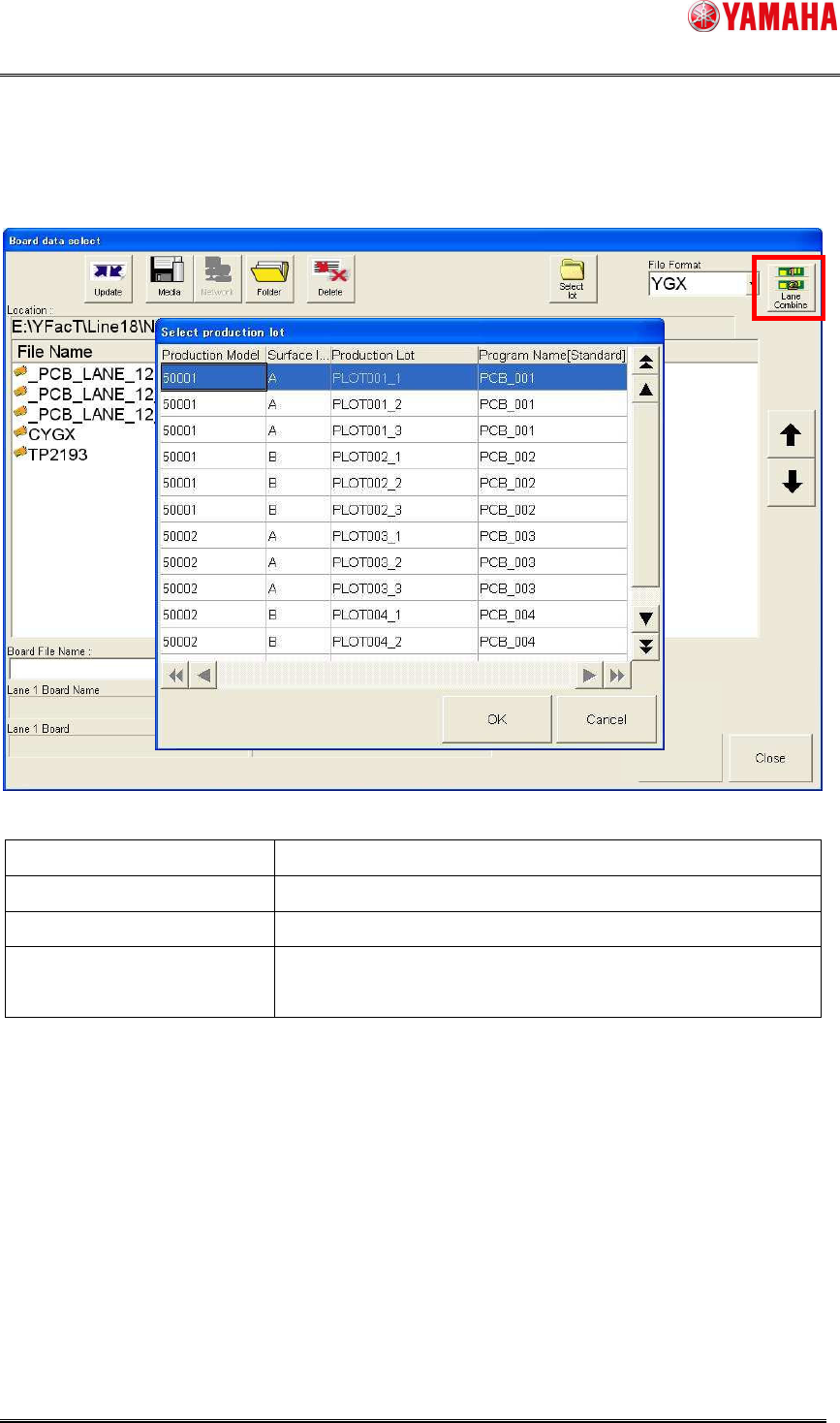

For the dual lane (TYPE-1/TYPE-2), the board program is loaded to the lane that is selected
by clicking the “lane selection” button in the “Board data select” dialog box.
Button state Contents
Lane 1 Board program is loaded to the lane 1.
Lane 2 Board program is loaded to the lane 2.
Lane Combine Combined board (CYGX) with the file name that matches to
the program name of the program list is loaded.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
39/62
For the dual lane (TYPE-N), the “Select production lot” dialog box to be displayed may vary
depending on the state of the “lane selection” button.

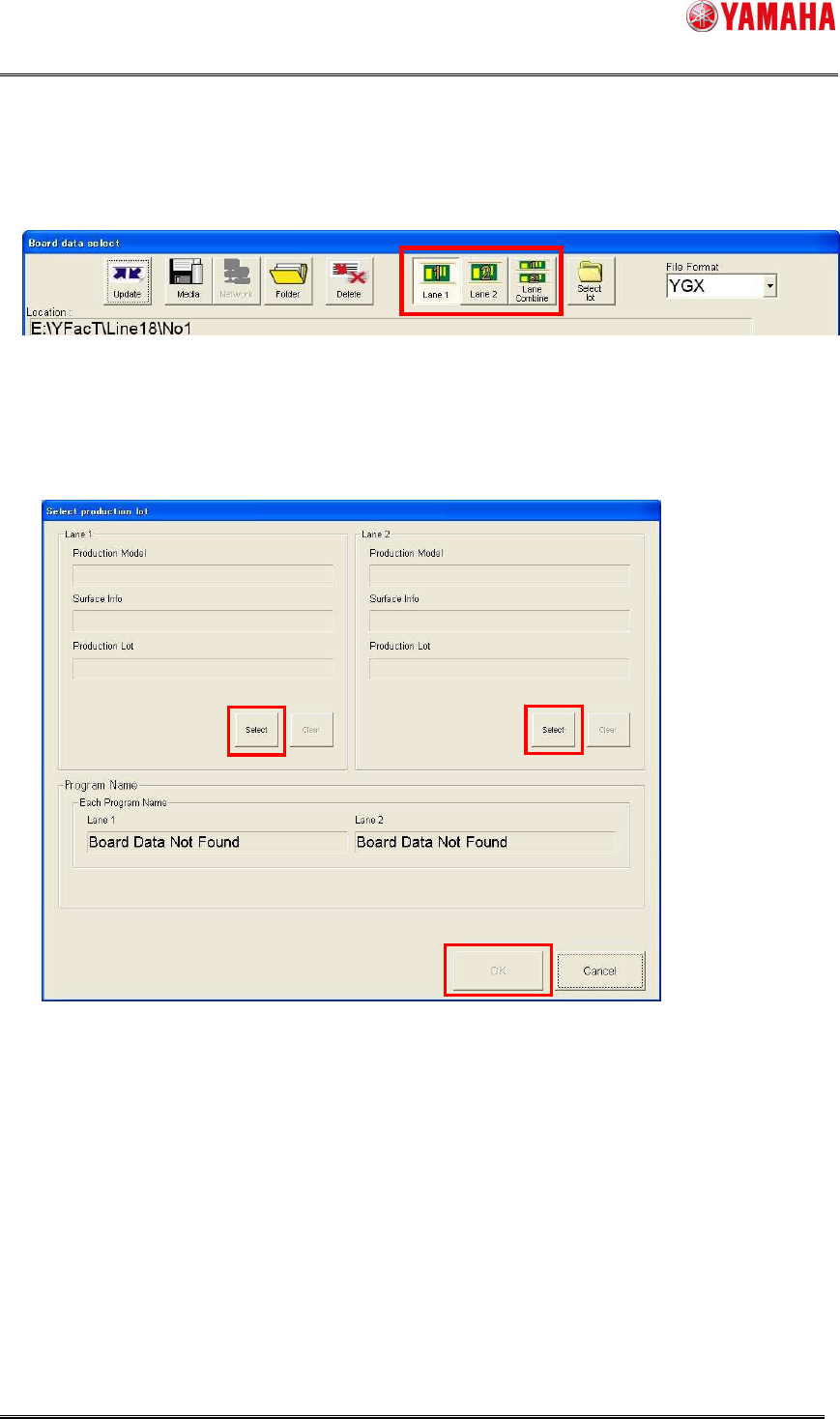

When the [Lane 1] button/[Lane 2] button is selected;
The dialog box that displays both lanes will appear. When clicking the [Select] button, the
normal “Select production lot” dialog box will appear, allowing you to select a production lot.
When clicking the [OK] button without selecting the production lot under the conditions that
the production lot can be specified for both lanes, the loaded board is canceled in the
unselected lane. When you want to load both lanes, be sure to specify both lanes. When
either lane can select the board in the nonstop operation, the production lot can also be
selected. The [Select] button becomes valid only in the selectable lane.
