SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
58/62

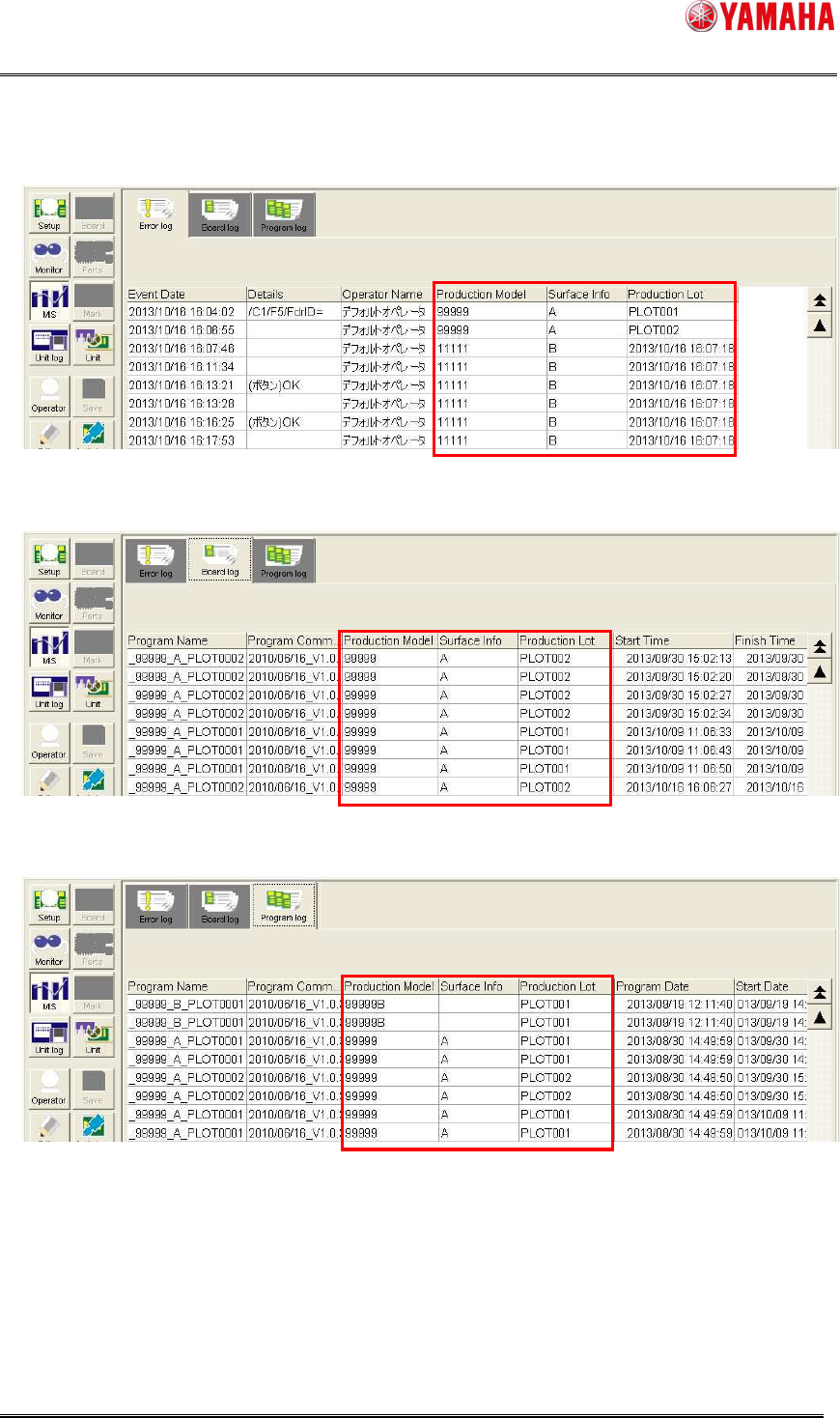

[MIS]-[Error log] screen
[MIS]-[Board log] screen
[MIS]-[Program log] screen
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
59/62
5.3.3 Troubleshooting
Error number Contents Cause and corrective action
Ea25884
Ea25885
*Multi lanes
Production lot
unregistered error
Cause
The detected production lot was not registered in
the program list.
Corrective action
Edit the program list.
5.3.4 Restrictions
Custom-designed functions are not supported.
When the production lot operation is set at “ON”, the custom-designed functions may
not operate correctly.
Limitations when the YG series and Xg series models exist in the line.
Upgrade the application of each series to the version described in Chapter 1. Since the
program change by the production lot is not supported, the board is changed under
conventional conditions (production model and surface information). However, since
the information transmission to the downstream machine is extended, the production
lot instruction is transmitted to the YS series on the downstream side, and then the auto
program change is executed.
When the option function [OP003] enable/disable setting is changed in the machine setting,
be sure to restart the machine.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
60/62
5.4 “OP005: Product Traceability” corresponding to the
production lot
In the product traceability function, the contents of the production lot are output to the files
shown below.
This makes it possible to perform the search process in units of production lots.
Lot Log (CSV format)
Lot Parts Log (CSV format)
Parts Mount Log (CSV format)
Item name Contents
Production Lot Produced production lot
Production Model Produced “Production Model (ASSY)”
Surface Info Produced “Surface Info”
* For details about the “Product Traceability” function, see the “IT Option Product
Traceability User’s Manual”.
Item added locations
Line Column Contents
3rd column Item name “Production Lot”
4th column Value of “Production Lot”
5th column Item name “Production Model”
6th column Value of “Production Model”
7th column Item name “Surface Info”
4th line
8th column Value of “Surface Info”
Example)
Machine Serial,Y24012#1
Machine Model,YS24X
Machine Name,YS24X_DL
Board Name,YS24X_LANE1,Production Lot,ABCDEFG,Production Model,1324567890,Surface Info,A
Start DateTime,2013/04/03 16:29:17
…
