SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
41/62
When [Select production lot] dialog box is displayed again after having read a board
program by production lot select, the line of the production lot that has been already read is
displayed with red.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
42/62
5.1.2.2 Log
The contents of the production lot are output to the logs shown below.
Additionally, “Production Model (ASSY)” and “Surface Info” are also output.
[MIS]-[Error log] screen
[MIS]-[Board log] screen
[MIS]-[Program log] screen
Item name Contents
Production Lot Production lot of the allocated program list
Production Model “Production Model (ASSY)” of the allocated program list
Surface Info “Surface Info” of the allocated program list
* The log saving conforms to each log.
* When the production lot operation is disabled, the Log screen is not displayed.
SMT Software Engineering Group
IM Operations YAMAHA MOTOR CO., LTD
MDOC-SOFT50283
43/62

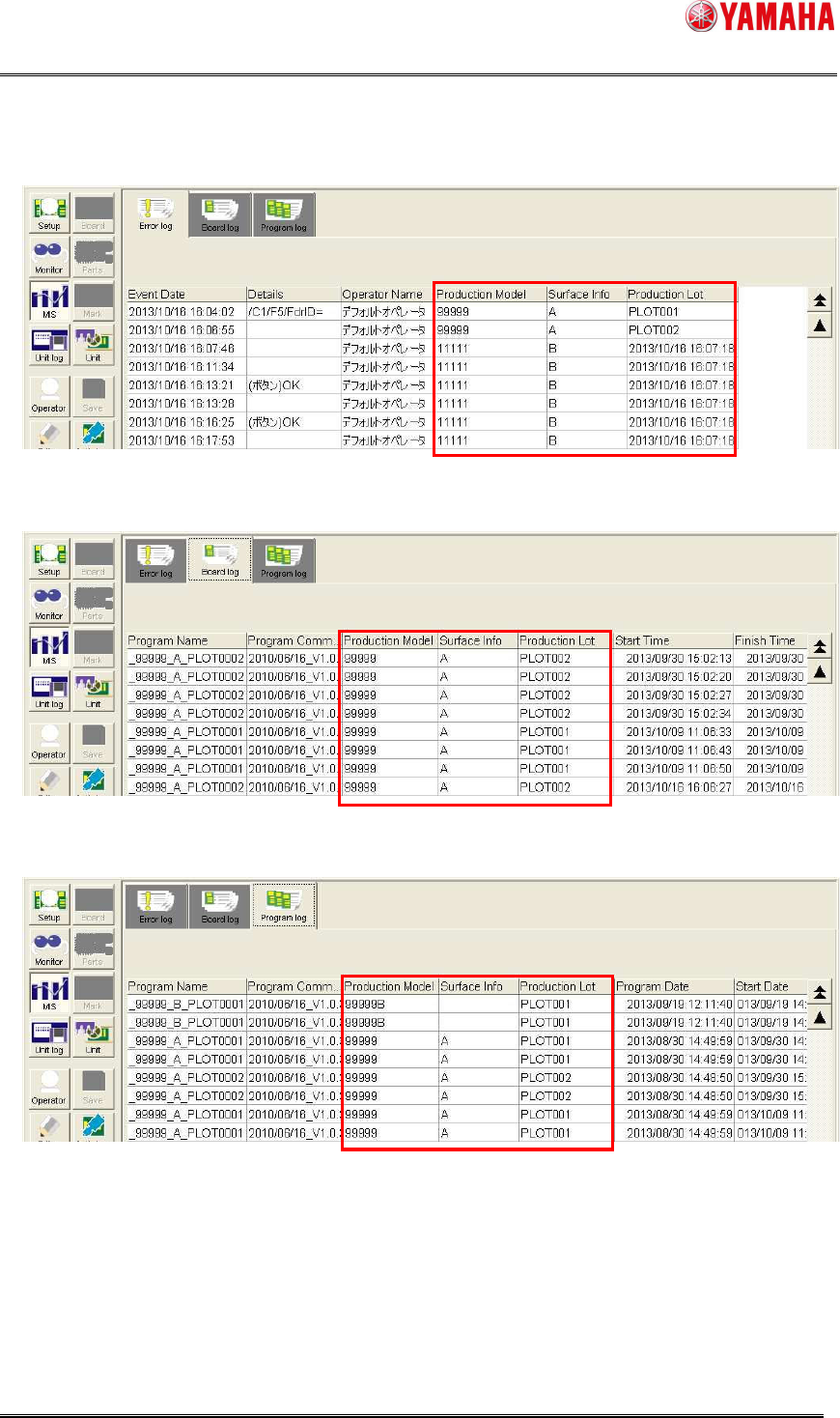

[MIS]-[Error log] screen
[MIS]-[Board log] screen
[MIS]-[Program log] screen
